ENGLISH - 24
E-4
antenna direction

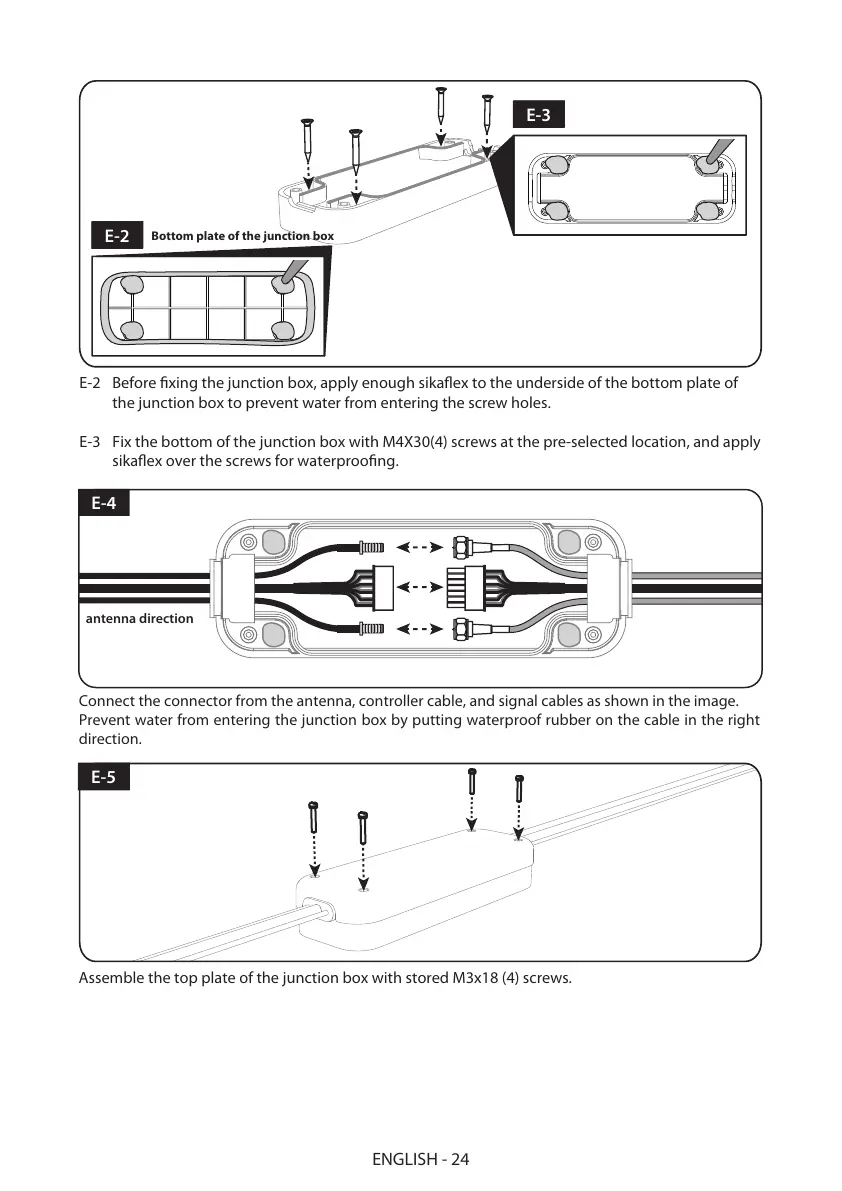

Connect the connector from the antenna, controller cable, and signal cables as shown in the image.
Prevent water from entering the junction box by putting waterproof rubber on the cable in the right
direction.
Before fixing the junction box, apply enough sikaflex to the underside of the bottom plate of
the junction box to prevent water from entering the screw holes.
Fix the bottom of the junction box with M4X30(4) screws at the pre-selected location, and apply
sikaflex over the screws for waterproofing.
E-3
E-2
Bottom plate of the junction box
E-2
E-3
Assemble the top plate of the junction box with stored M3x18 (4) screws.
E-5
