SPHINX Myth 5
5

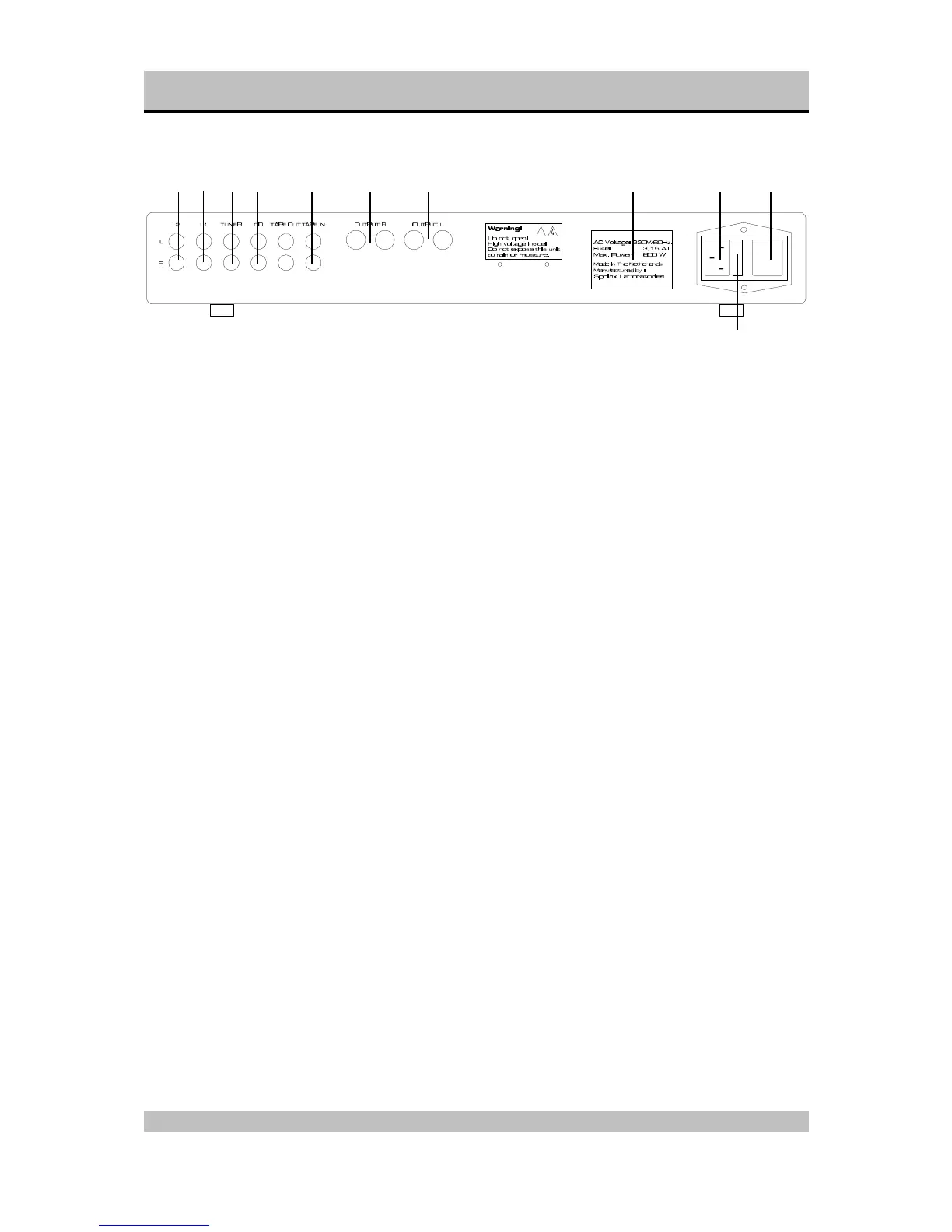

Rear panel
10. L2: To connect the cinch signal cable from the
signal source for LINE 2.
11. L1: To connect the cinch signal cable from the
signal source for LINE 1.
12. TUNER: To connect the cinch signal cable from
the tuner.
13. CD: To connect the cinch signal cable from the
CD player.
14. TAPE OUT: Connect this output to the Input of
the recorder.
15. TAPE IN: Connect this input to the output of the
recorder.
16. RIGHT OUTPUT: To connect the cable from the
right loudspeaker:
red +
black -
17. LEFT OUTPUT: To connect the cable from the
left loudspeaker:
red +
black -
18. Manufacturers label: This shows important
data for the component such as serial number
and mains power voltage.
19. AC Power: Connect the mains cable to a mains
power outlet (100 - 240 VAC).
20. Fuse holder: Contains a fuse.
21. ON/OFF: This is the mains power switch.
10
11
12 13 15 16 17 18 19 21
20
