SPHINX Project Two Mk2
5

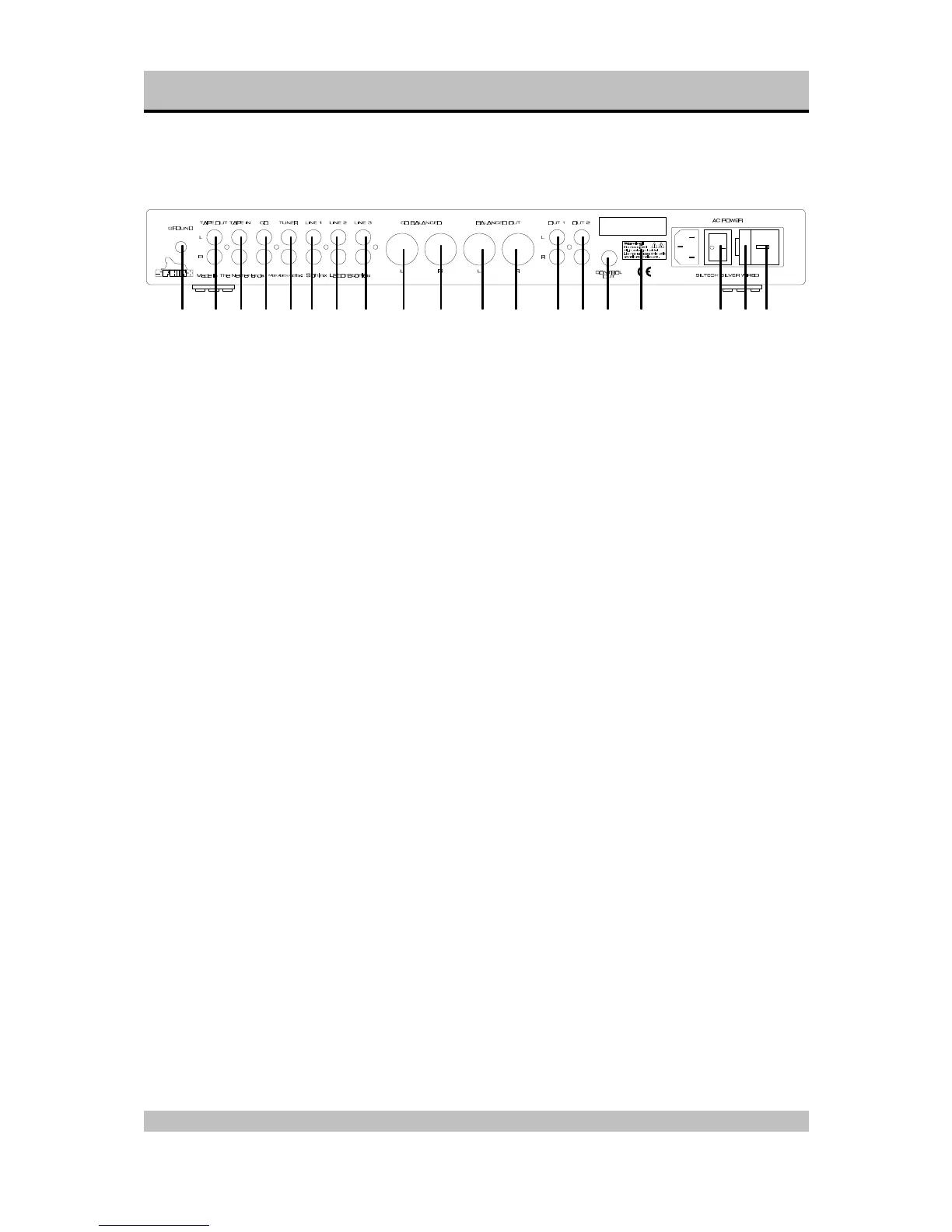

Rear panel
1. GROUND: You may directly connect the signal
grounds of other equipment tot the signal ground
of the Project Two.
2. TAPE OUT: Connect this output to the input of
the recorder.
3. TAPE IN: Connect this input to the output of the
recorder.
4. CD: To connect the cinch signal cable from the
CD player.
5. TUNER: To connect the cinch signal cable from
the tuner.
6. LINE 1: To connect the cinch signal cable from
the signal source for LINE 1.
7. LINE 2: To connect the cinch signal cable from
the signal source for LINE 2.
8. LINE 3: To connect the cinch signal cable from
the signal source for LINE 3.
9. CD BALANCED L: To connect the XLR signal
cable (balanced cable) from the left output of the
CD player.
10. CD BALANCED R: To connect the XLR signal
cable (balanced cable) from the right output of
the CD player.
11. BALANCED OUT L: To connect the XLR signal
cable (balanced cable) from the left input of the
power amp.
12. BALANCED OUT R: To connect the XLR signal
cable (balanced cable) from the right input of the
power amp.
13. OUT 1 L+R: Connect this output with a cinch
signal cable to the input of your power amp.
14. OUT 2 L+R: To connect the XLR signal cable
(balanced cable) from the right input of the extra
power amp or surround processor.
15. Control Out: To connect the optical cable going
to another Sphinx component.
16. Warning!: This shows important information
about the safety regulations of the Project Two
MK2.
17. AC Power: Connect the mains cable to a mains
power outlet (100 - 240 VAC).
18. O / I: This is the mains power switch.
19. Fuse holder: Contains a fuse.
20. Selector for power supply voltage (120/240 V),
(115/230 V).
