4.6. Air inlet system
Check the air inlet system every two months for leakages and damage.
4.6.1. Cleaning the air filter
Clean the air filter every week at normal working conditions. When the air filter cartridge
and sealing ring is damaged, renew the cartridge.
1. Remove the air cleaner lid.
2. Remove the air cleaner element from the housing.
3. Clean the inside of the air cleaner filter housing and air cleaner lid.
4. If the air cleaner element or seal is damaged or the is already cleaned
once , the air cleaner element must be replaced (see “TECHNICAL
DATA”).

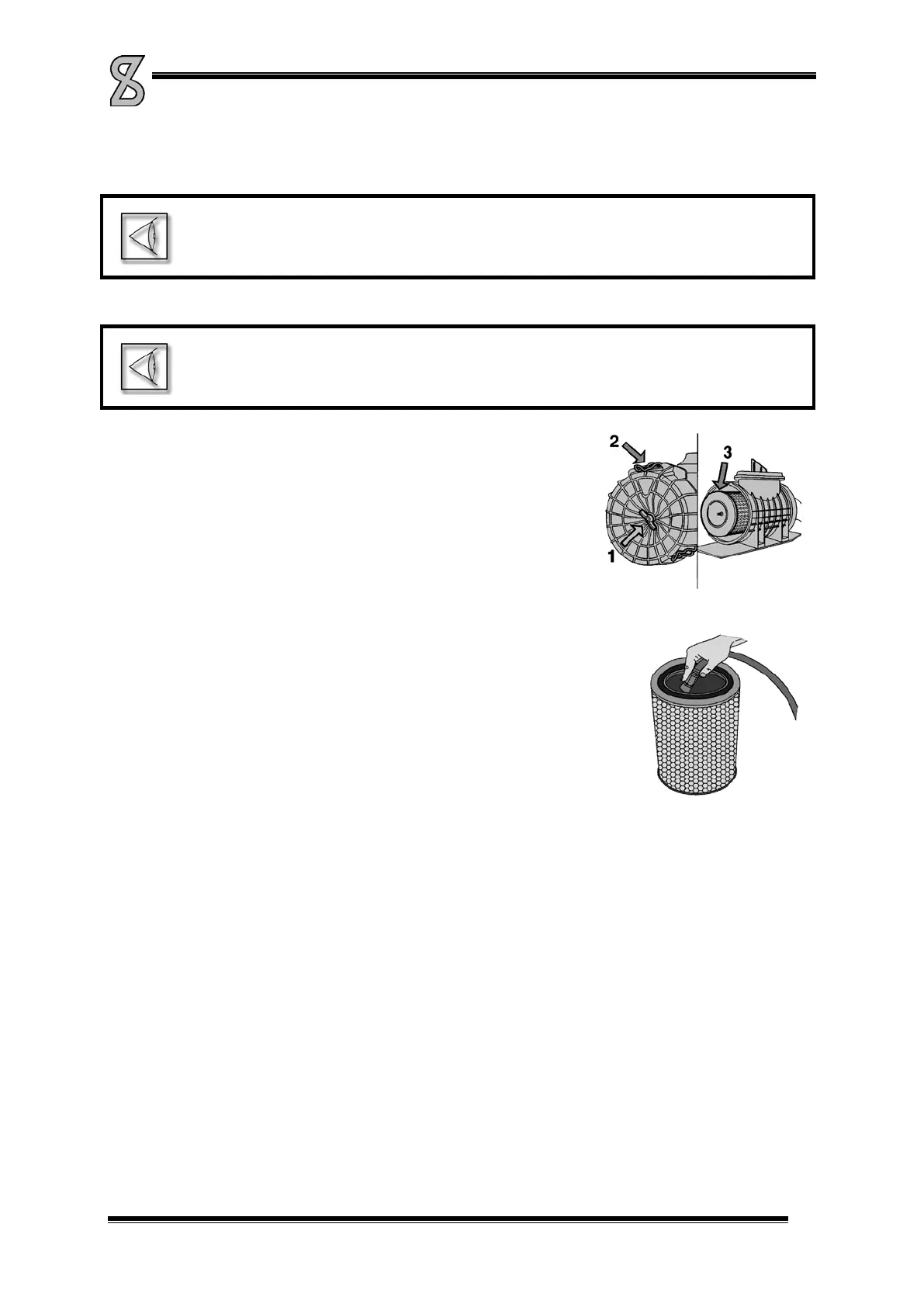

Picture 4-11
5. Shake out the air cleaner element.
6. Clean the air cleaner element by means of blowing compressed air
from the inside (max. 1.5 bar).
7. Sparingly coat the seal ring inside with Vaseline.
8. Mount the air cleaner in the air cleaner housing. Tightening torque of
mounting nut is 20 Nm.
9. Mount the air cleaner lid. Tightening torque of mounting nut is 15 Nm.
Picture 4-12
