10.2. Manual lubrication
The grease interval for all manual greasing points is 2 monthly.
When not chosen for the central lubrication option, the lubrication points mentioned in
chapter 10.1.3. should be manual lubricated too.
Use a grease gun with EP2 grease for manual lubrication.
10.2.1. Outrigger beam cylinders

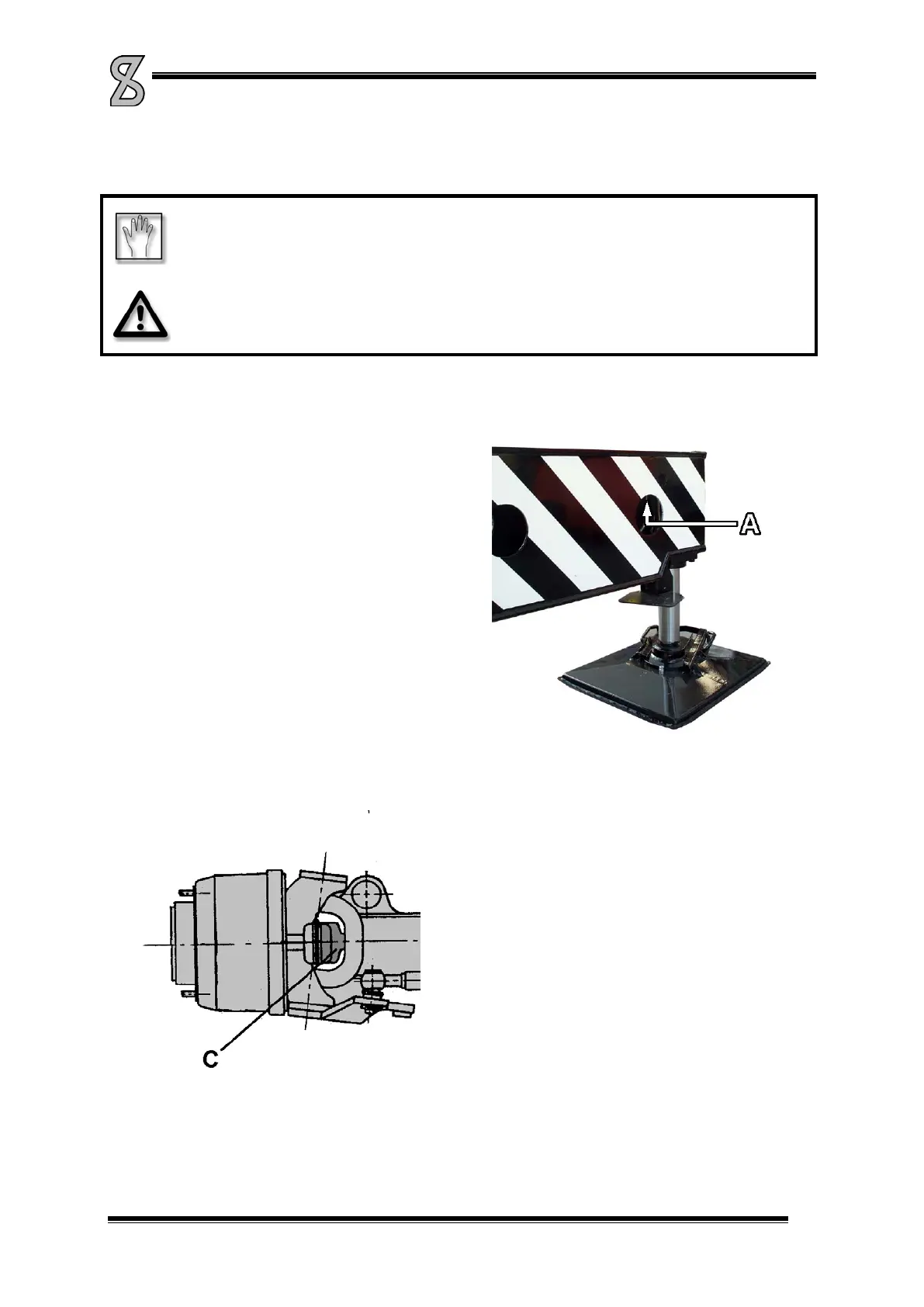

In Picture 10-5 is shown the position of the grease
nipple of the cylinder inside the outrigger beam. (A)
Extend the outriggers to reach the grease nipples
through the holes. (1 nipple per outrigger beam)
Picture 10-5
10.2.2. Driven axles
Picture 10-6
Grease all universal joints manually shown in Picture
10-6, C.
