USER MANUAL SPIERINGS TRUCK AT4
AT4-EN-041115.doc
1. General data AT4
The AT4 carriage is especially designed for the Spierings SK477 folding crane. Extra attention is paid to a smooth
and comfortable transport to the work site. The crane is suited for driving on public roads, fully equipped with
counterweight and tools. The chassis is an especially rigid structure to create a good crane support.

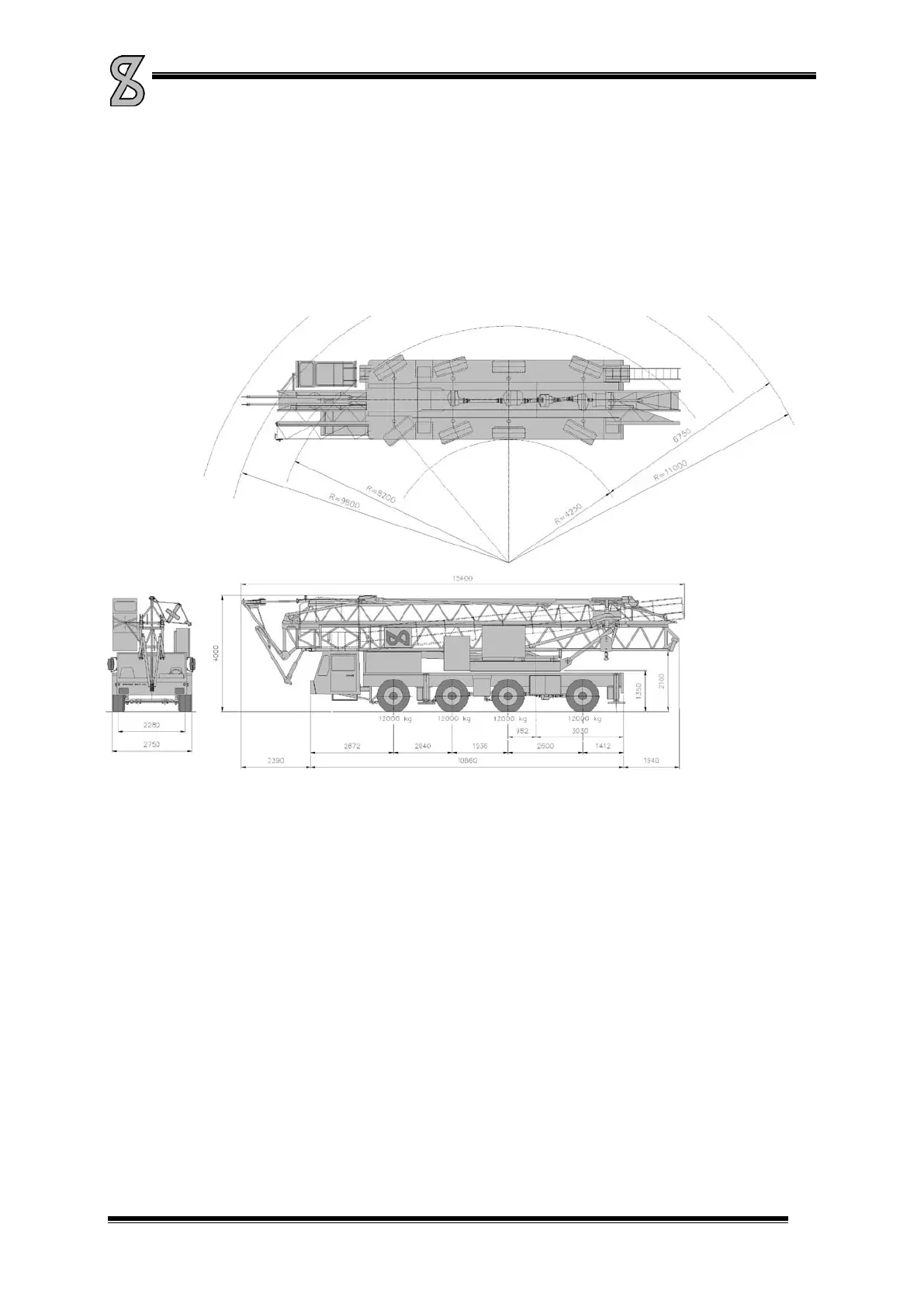

In Picture 1-1 you will find the measurements of the SK477 with the AT4 carriage. The dimensions given are the
overall dimensions, axle bases and turning circle.
Picture 1-1
Drive unit:
• 11.63 litres DAF diesel engine with turbo compressor and intercooler (type WS 268L).
• ZF gearbox with 16 gears forward and two gears reverse.
• STEYR high/low gear shift, transfer case, with high speed (road) and low speed (off the road) transmission.
• Four Ginaf axles, where axles two, three and four are driven.
