9.5. Air lubricator/water separator
Check the level of the air lubricator and drain the water separator every two months at normal
working conditions.

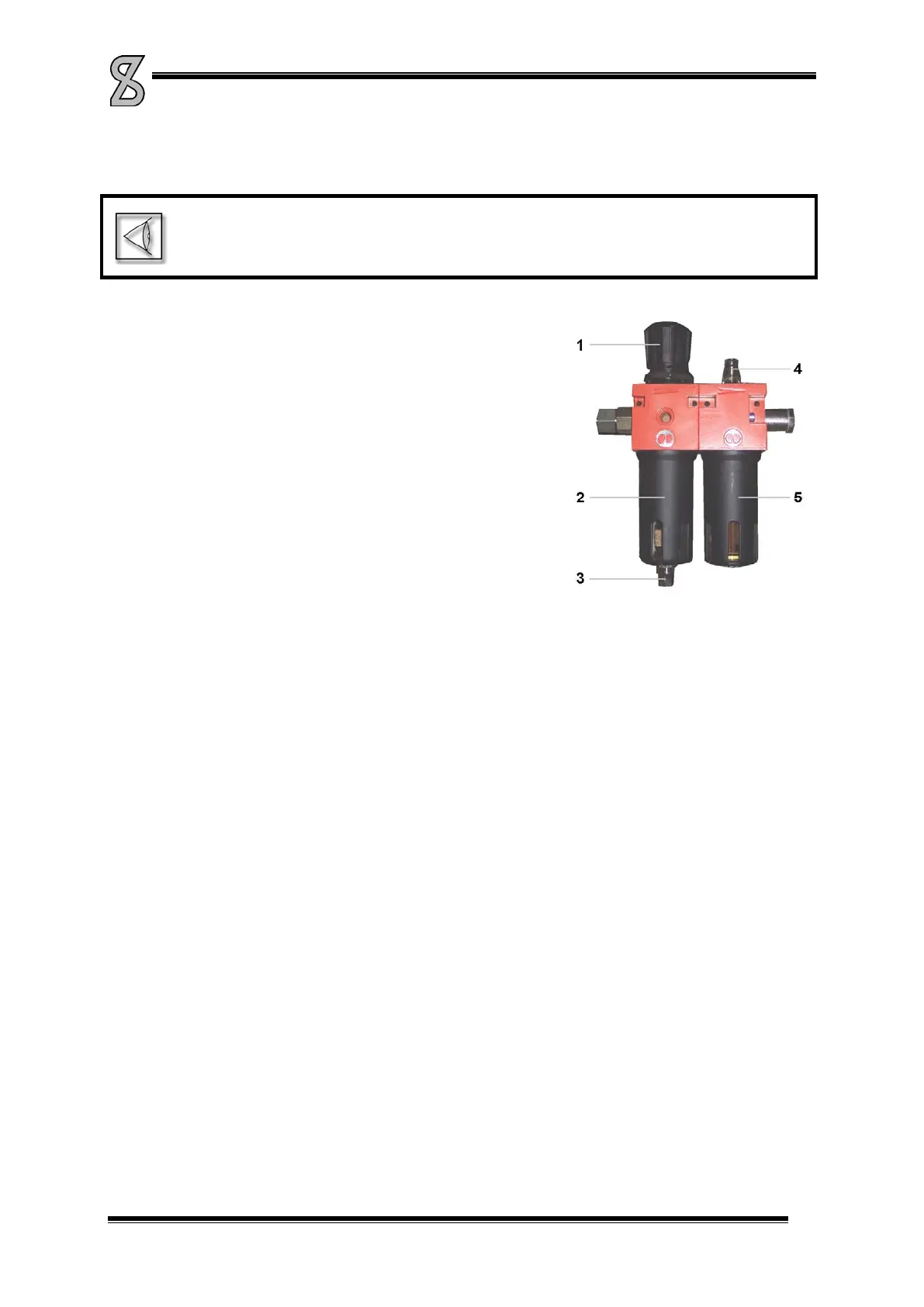

The air lubricator/ water separator is shown in Picture 9-3 and consist of
the following components:
1. Pressure reducing valve
2. Water separator
3. Water separator drain valve
4. Control screw air lubricator
5. air lubricator
Picture 9-3
9.5.1. Refill air lubricator
1. Make sure the diesel engine is not running.
2. Unscrew the bowl (5) and top up with oil.
3. Reinstall the bowl with oil.
4. Eventually adjust the amount of lubrication by means of the control crew (4).
9.5.2. Water separator
If necessary, drain water from the water separator using the valve (3). Do this by turning the valve into its neutral
position and press.
• When there is air pressure, the valve is closed
• When there is no air pressure, the separator drains automatically.
Turning the knob clockwise, the valve will be closed.
The air pressure in the secondary system can be adjusted by means of knob (1).
