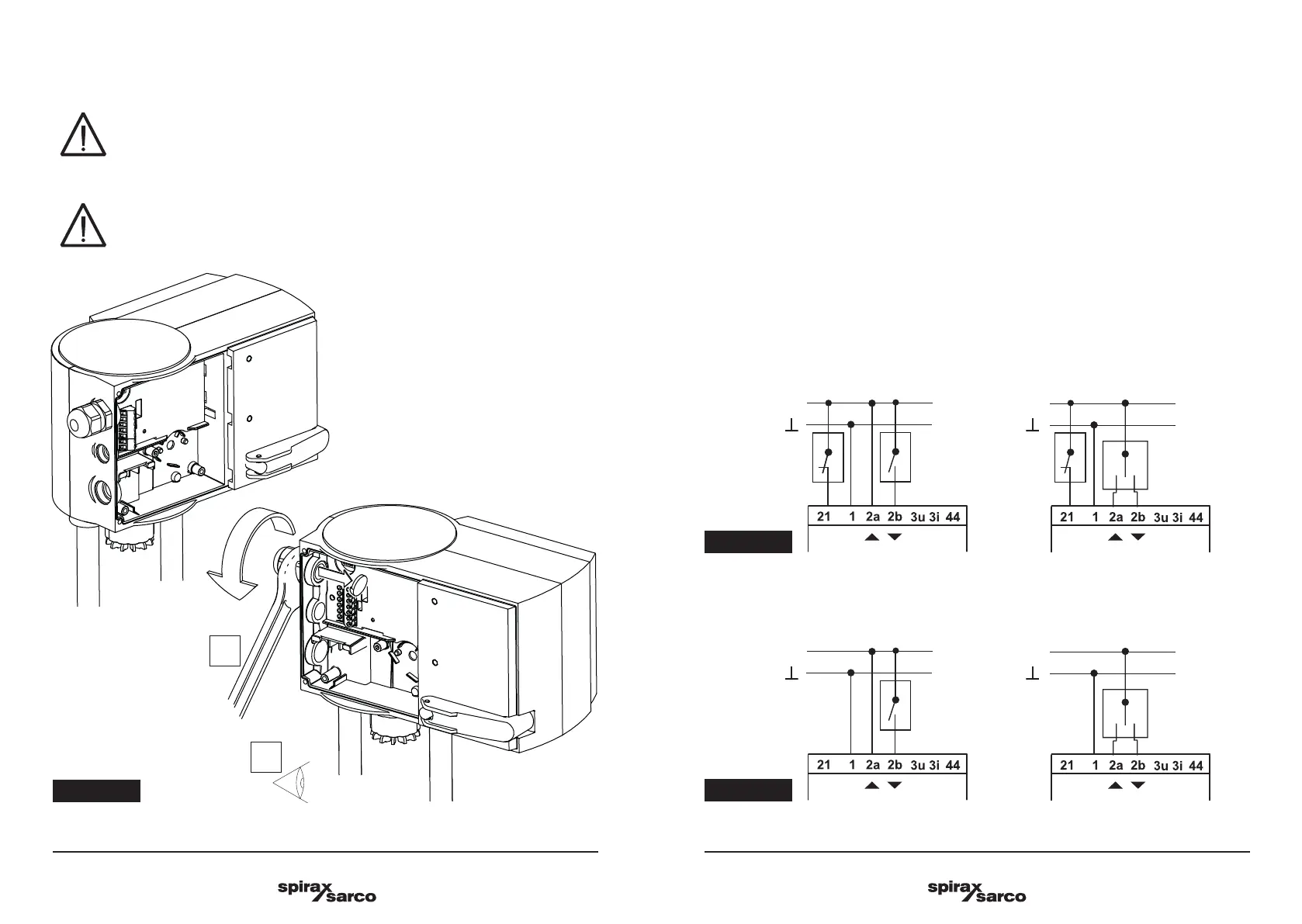

3.3 Electrical connection
Warning
This is a class A equipment. It may cause radio interference in the home, in which case the
operator may be requested to carry out appropriate measurement.
USA, Canada
Warning
This equipment is intended to be supplied by a „Power Source Class 2“. Allowed wire size:
AWG 14-15. All control signals and outputs are Class 2 AC/DC.
Pollution degree III,
over voltage category III, as per EN 60730
Fig. 13
Important
1. Read Section 1 'Safety information', before attempting to wire the supply to the actuator.
2. Slow blow fuses should be fitted in all phases, but not in the protective earth conductor.
3. The protective earth internal must be connected to the installation protective earth system. The integrity
of the installation protective earth system must not be compromised by the disconnection or removal
of other equipment.
4. For supply connections, use 1.5 mm² wire, double insulated as stated in IEC 60364 (or equivalent), if
wires are exposed to touch.
5. Increase the wire section according to the length of the power line.
6. Dimension the safety transformer in the supply line correctly.
7. Inrush currents shall not conduct to a too big voltage drop.
Fig. 14
3.3.1 Valve Motor Drive connection for 24V powered actuator
2pt 3pt
24 V~/=24 V~/=
AEL3E/AEL3R
Fig. 15
2pt 3pt
AEL3X
24 V~/=24 V~/=
To Next Page
