SP7-10, SP7-11, SP7-12 and SP7-20, SP7-21, SP7-22 Parameterization

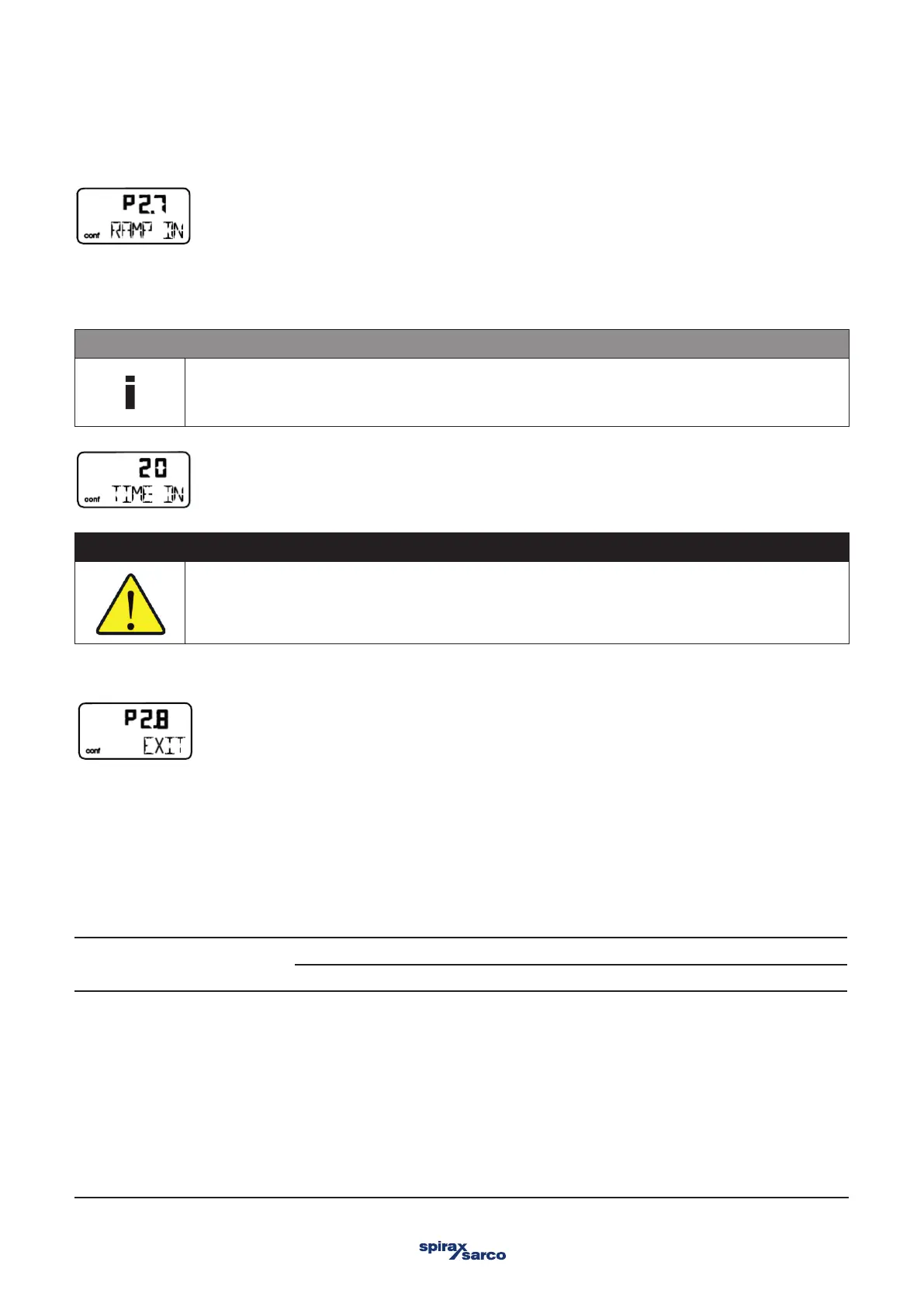

3.6.8 RAMP DN – Setpoint ramp (down)
Here the stroke time for the actuator can be increased. A setpoint change is not directly transferred to the positioner; instead, the speed
is reduced accordingly. The set value should always be greater than the shortest stroke time determined during auto adjust.
NOTE
To display the stroke time (stroke time up), press and hold the ENTER button.
CAUTION
The setpoint ramp is deactivated in the case of any functions which involve approaching the safe position.
This even applies in the case of errors.
The actuator will therefore move without delay
- Do not reach into the adjustment mechanism.
3.6.9 EXIT – Return to operating level
With this parameter you can leave the configuration level. The positioner returns to the operating level. Here you can either save
data in the non-volatile memory or discard all previously made changes (also the changes in other parameter groups).
To leave the configuration level (with or without saving), press and hold ENTER until the countdown from 3 to 0 is finished.
The active saving process is indicated by the message NV_SAVE. After saving a plausibility check is executed.
If an error occurs during the check or while saving, the data cannot be saved and an error message is displayed instead (see
Chapter "Error codes").
Selection
NV_SAVE Saves settings in the non-volatile memory.
CANCEL Discards all changes made since the last permanent save operation.
