IM-P192-02 MI Issue 2 11

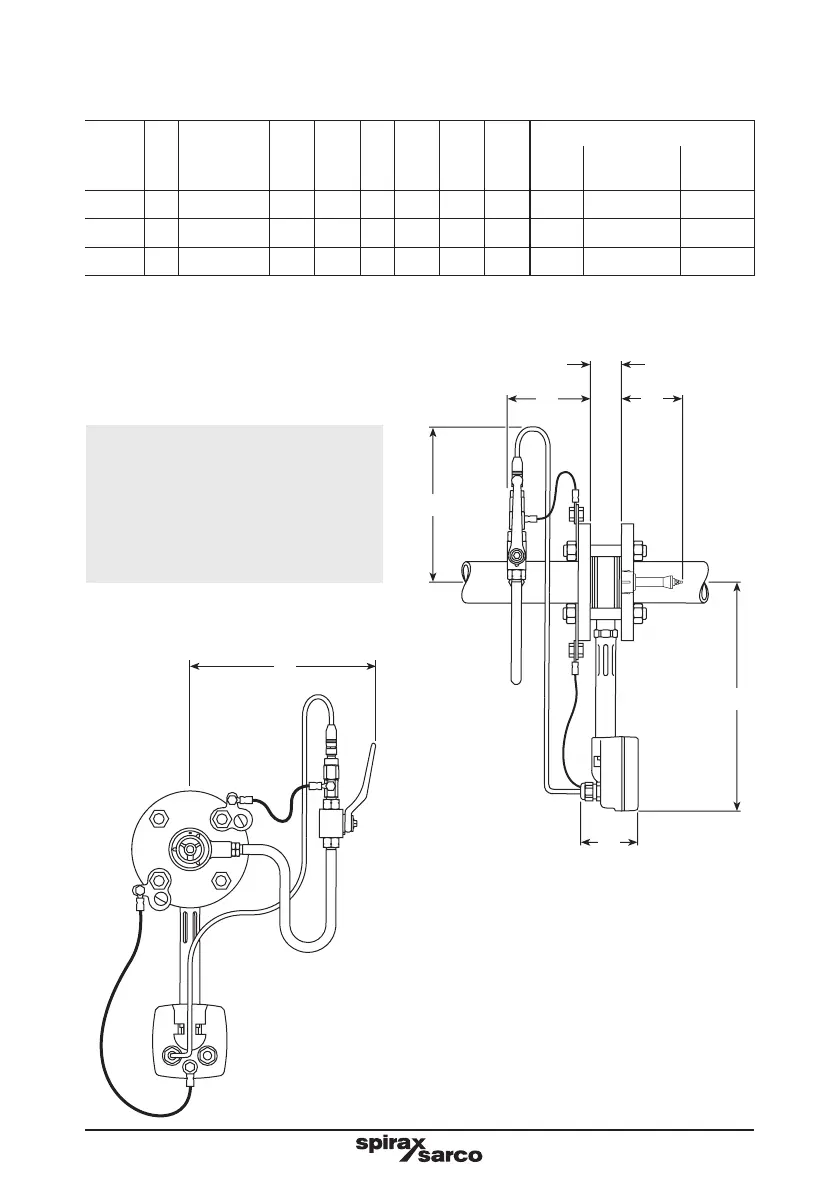

Fig. 3
Note: Dimension 'X' is a recommended minimum distance between the pressure tapping
and the flowmeter. However it can be installed at any distance provided the cable allows
(Standard cable length is 1 m).
F
2.8 Dimensions/weights (approximate) in mm and kg
Size A Flowmeter
OD
C D E F G X Weight
TVA Superheat
kit
'U'
syphon
DN50 35 103 322 125 65 250 160 300 2.67 0.3 0.5
DN80 45 138 334 115 65 270 160 300 4.38 0.3 0.5
DN100 60 162 344 155 65 280 160 300 7. 28 0.3 0.5
Caution:
Any free hanging cable must be
secured to prevent contact with the
steam pipe.
E
C
X
D
A
G
