IM-P192-02 MI Issue 2 15
Flow

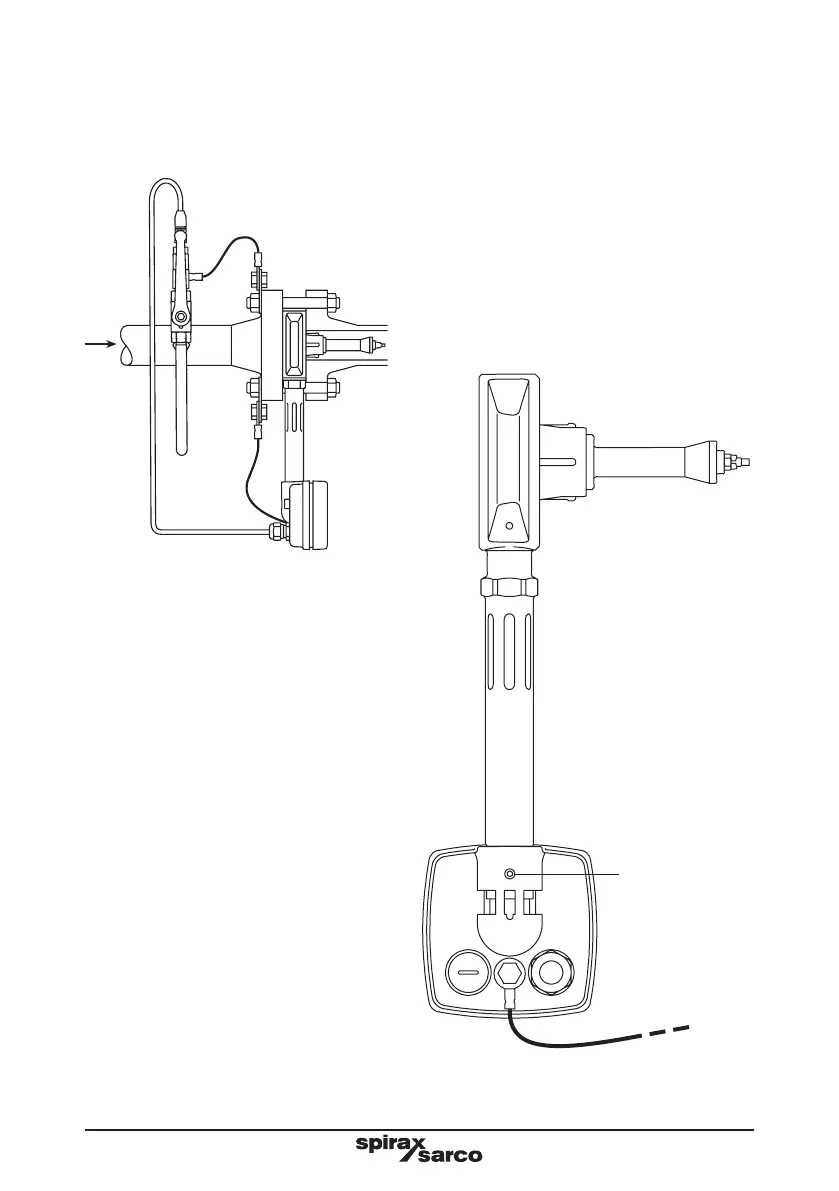

Fig. 9
Horizontal flow up to
32 bar g (464 psi g)
for saturated steam applications
and
23 bar g
(333.5 psi g)
for superheated steam applications
Note: The 'U' syphon and pressure sensor
must be used for superheated steam
applications.
Rotating the electronics enclosure
The electronics housing can be rotated 270° to
enable sufcient clearance for installation. To
rotate the electronics housing, loosen the 6 mm
grub screw located on the rear of the electronics
housing (see Figure 10). The electronics housing
can now be rotated to the required position.
When the electronics housing has been located
into the correct position retighten the grub screw
to a torque of 1.3 N m (11.5 lbf in).
Warning: Do not loosen / remove the stem
from the main body of the unit.
6 mm grub screw
Warning: Do not loosen /
remove the stem from the
main body of the unit.
Fig. 10
Earth
cable
