IM-P146-01 CMGT Issue 4
8
Pressure psi g
Temperature °F
Temperature °C
Pressure bar g

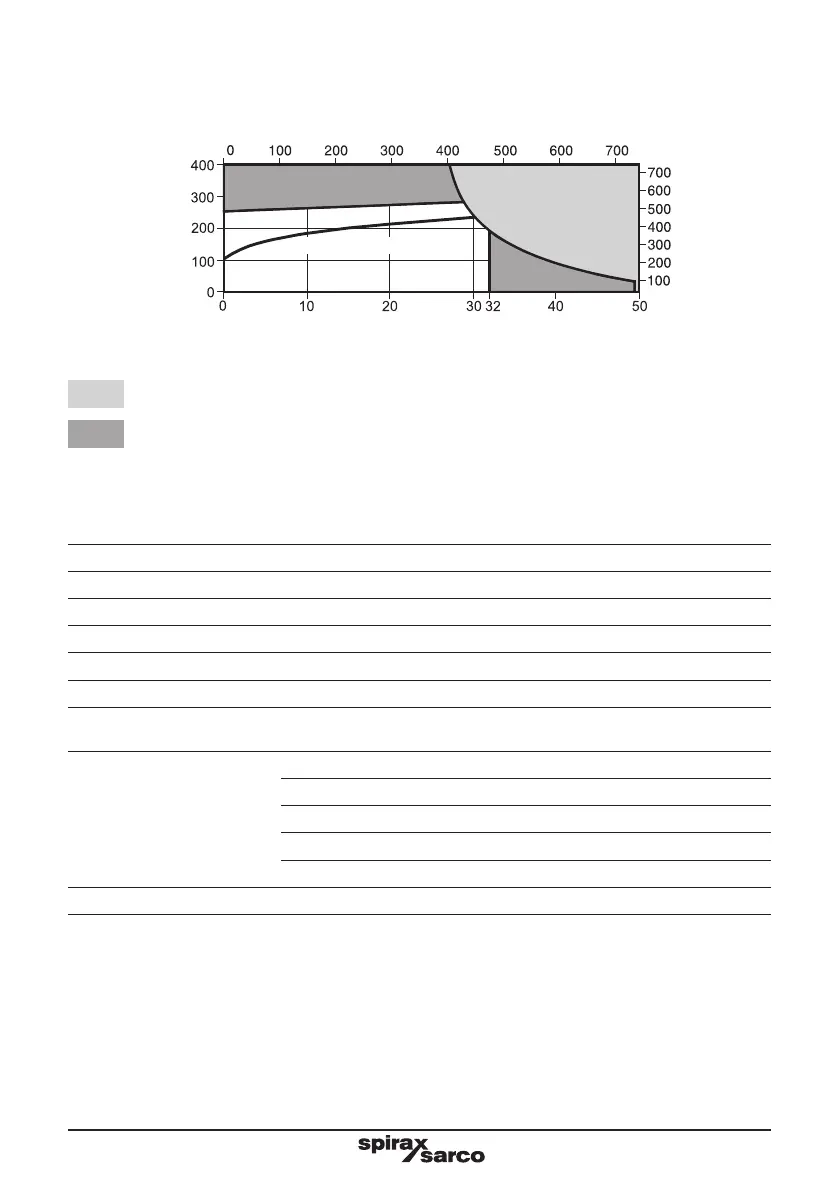

Steam saturation curve
The product must not be used in this region.
The product should not be used in this region or beyond its operating range as damage to the
internals may occur.
Note: The model of pipeline connector and connections selected will dictate the maximum operating pressure
and temperature of the complete assembly. Consult the relevant Technical Information Sheet, as listed in
Section 2.2, for this information.
Body design conditions PN50 (ASME / ANSI 300)
PMA Maximum allowable pressure 50 bar g @ 38 °C (725 psi g @ 100°F)
TMA Maximum allowable temperature 400 °C @ 28 bar g (752°F @ 406 psi g)
Minimum allowable temperature -48 °C (-54°F)
PMO Maximum operating pressure for saturated steam service 32 bar g (464 psi g)
TMO Maximum operating temperature 286 °C @ 29 bar g (547°F @ 420 psi g
Minimum operating temperature
Note: For lower operating temperatures consult Spirax Sarco
0 °C (32°F)
DPMX
Maximum differential
pressure
UFT32-4.5 4.5 bar UFT32-4.5 (65 psi)
UFT32-10 10 bar UFT32-10 (145 psi)
UFT32-14 14 bar UFT32-14 (203 psi)
UFT32-21 21 bar UFT32-21 (305 psi)
UFT32-32 32 bar UFT32-32 (464 psi)
Designed for a maximum cold hydraulic test pressure of: 50 bar g (725 psi g)
2.3 Pressure/ temperature limits (ISO 6552)
