Phonitor 2
Measurements

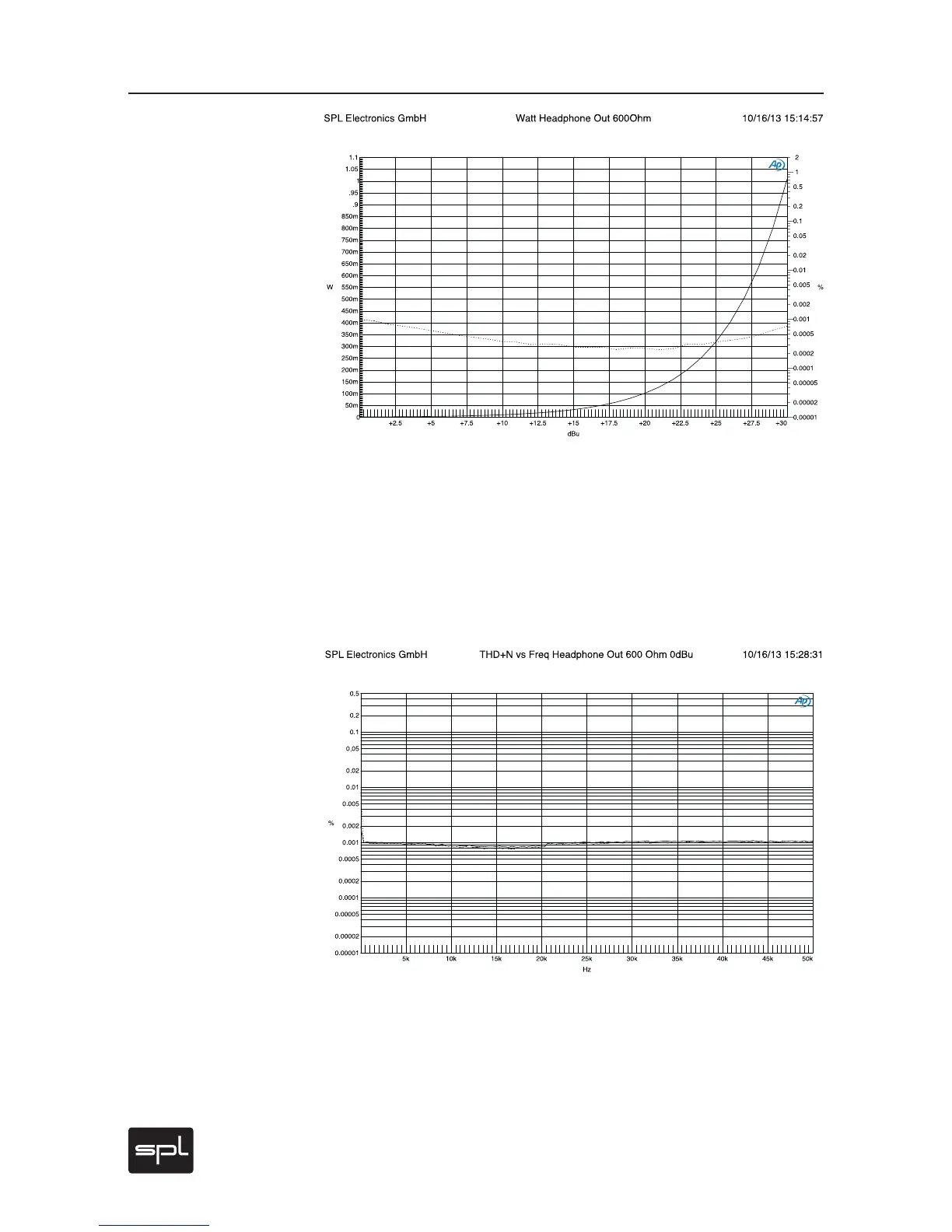

THD vs. Frequency
Measuring output and input 600 ohms, Volume control at 0 dB. THD vs.
frequency range from 10 to 20 kHz at 0 dB over both channels. Values
are extremely low below 0.001% throughout the whole range; even in
long sessions this ensures listening without ear fatigue.
THD vs. Output Level (W)
Measuring output and input 600 ohms, Volume control at 0 dB. This
measurement represents an analysis of THD values over the complete
output level range. High THD values can be perceived as rough sounds
and overemphasized highs. In usual operating ranges around 0 dBu,
the Phonitor‘s THD values are extremely low. Volumes that would re-
sult from 10 dBu are already far above healthy levels.
