Phonitor 2
31
Measurements

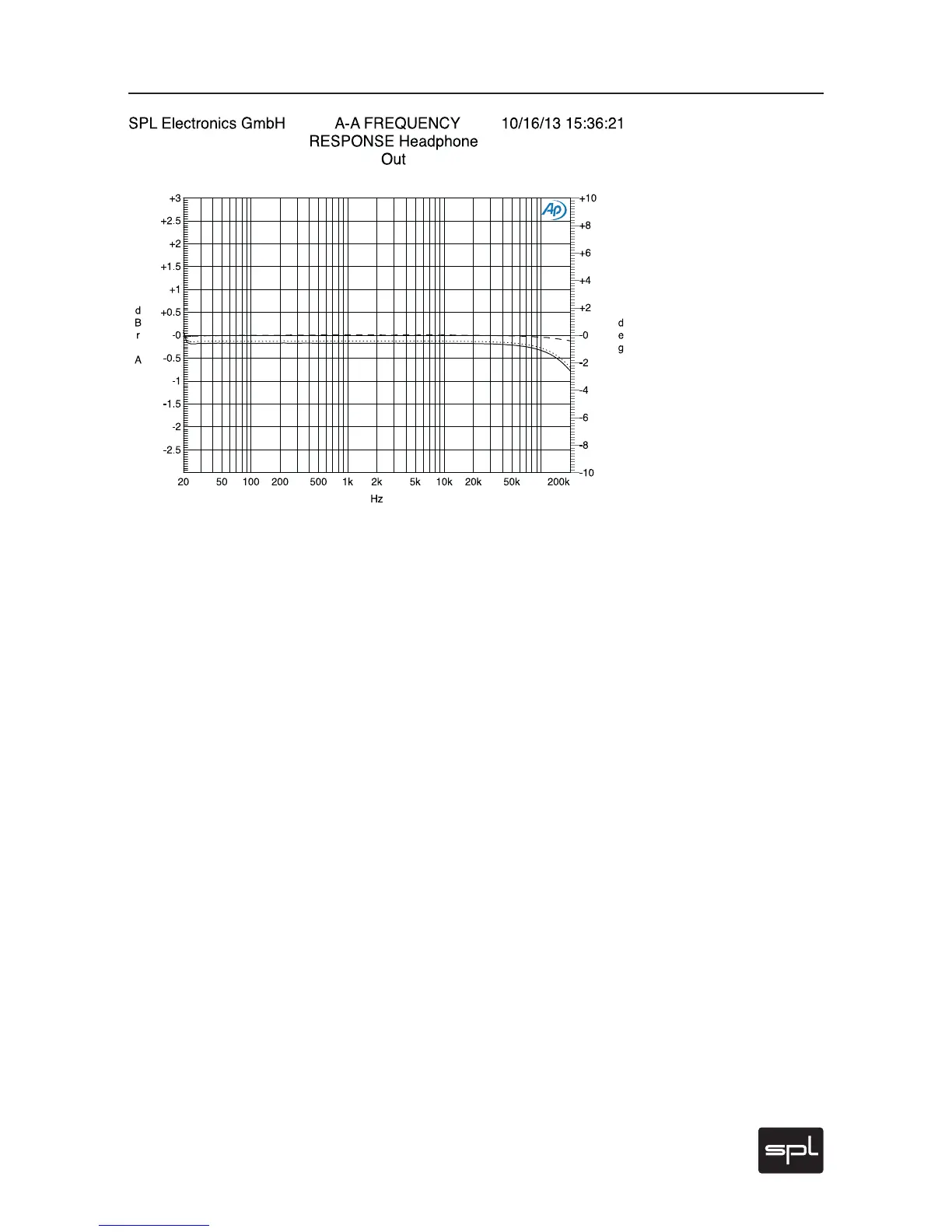

Frequency Response Input/Headphone Output,
Left and Right Channel Measuring output
and input 600 ohms, Volume control Phonitor 2 0 dB:
‹10 Hz to ›200 kHz (-0.2dB; ‹10 Hz to ›480 kHz @-3dB).
The large frequency response range excludes that the frequency spec-
trum is limited at any point. Formants and octaves of an instrument’s
sounds cannot be narrowed.
Phase Response Input vs. Output, Left and Right Channel
Measuring output and input 600 ohms, Volume control Phonitor 2 0dB.
This measurement shows the minimum deviation of phase in the
upper frequency range. Phase response describes the time difference
between input and output signal – the less, the better. The extremely
tight phase response up to 50 kHz excludes any audible effects.
