Technical data
Model WDV2200XCD
Dimensions
width: 23.4” (59.5 cm)
height: 33.24” - 33.75” (84.5 - 85.7 cm)
depth: 22” (55.9 cm)
Weight 148 lbs
Minimum Instal-
lation Clearances
Sides: 0”
Front / Back: 1”
Top: 0”
Capacity
Washing: 2 to 15 lbs. (1 to 7 kg)
Drying: 2 to 11 lbs (1 to 5 kg)
ELECTRICAL
• Machine Voltage/Amperage - 120V, 60 Hz, 12.5 Amp.
• Connection - 3-prong plug with 6’ cord is provided with the machine.
TECHNICAL INFORMATION
• Circuit/Protector - 3-wire single phase, 120V, 60 Hz, AC, on a separate
15 Amp branch circuit.
Electrical connec-
tions
Voltage: 120Volts, 12.5 Amp, 60 Hz
Water connec-
tions
Max. Pressure: 0.69 MPa (6.9 bar), 100 psi
Min. Pressure: 0.05 MPa (0.5 bar), 7.5 psi
Max. Spin speed up to 1200 RPM
This appliance was tested by UL and
conforms with both Canadian and U.S.
UL safety requirements and displays their Mark.
C
U
L
US LISTED
®
The model number and serial number of this machine may be found on the label attached to the front panel behind the door, and also on the
label attached to the rear panel.
You should note the model and serial numbers of this unit in the space provided. Retain this booklet as a permanent record of your purchase to
aid in identication in the event of theft.
MODEL N.
SERIAL N.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, re, or electrical shock.
If you have... You’ll need...
no access to Hot/Cold water hookups Splendide Faucet Adapter Kit, or equivalent.
to install a dryer vent and ducting in your
RV or boat
Splendide Vent Kit, or equivalent.
concerns about the appliance shifting in
your RV or boat
Splendide SecureFit braket kit,or equivalent.
water damage concerns Splendide Drain-A-Way Pan, or equivalent.
to make a 90° duct turn in less than 4.5” Splendide 90° oset elbow, or equivalent

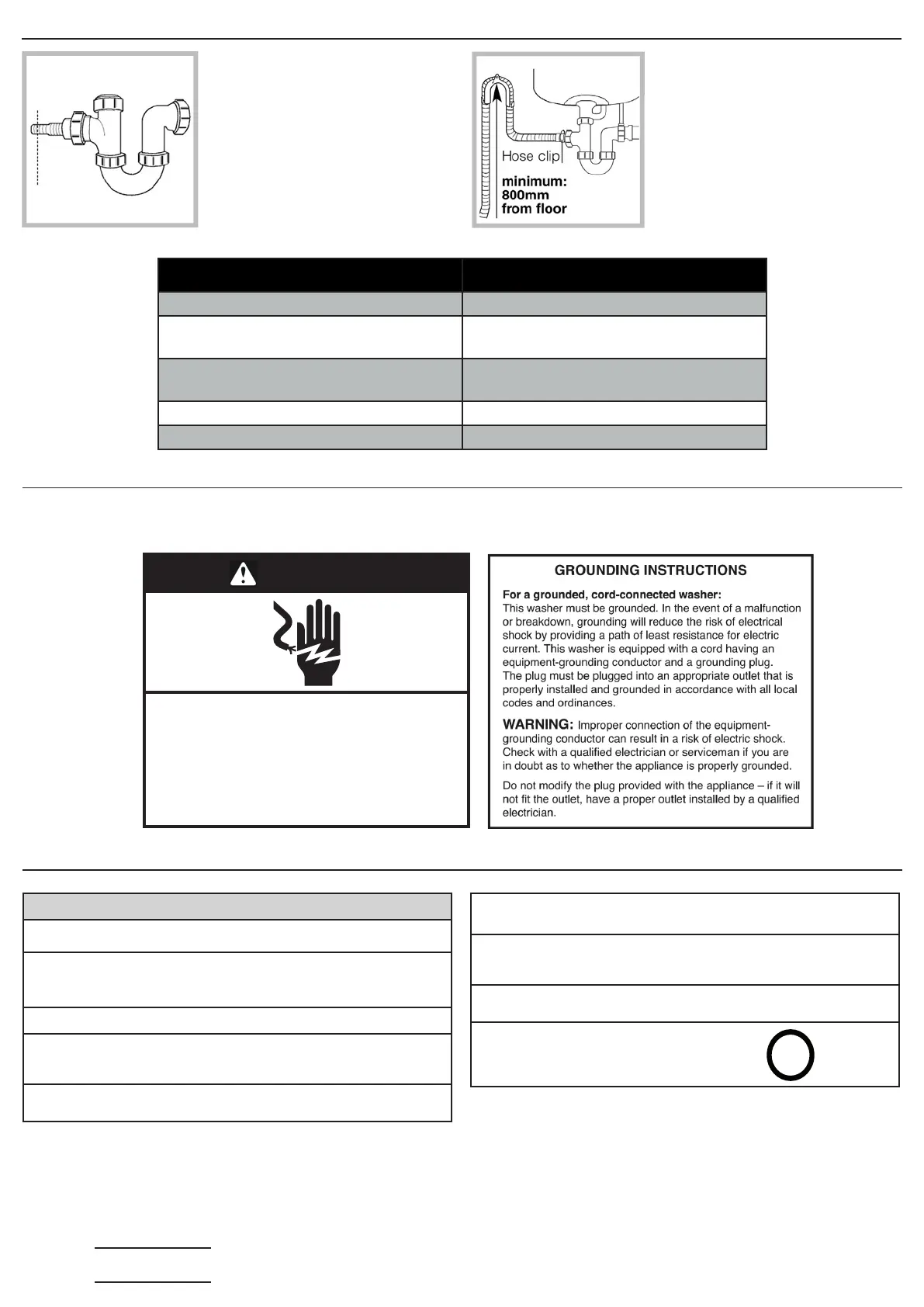

UNDER SINK METHOD
1. Cut the blocked end of the under sink
drainage unit.
2. Fix the hooked end support a minimum
of 24.4” (620 mm) from the oor.
3. Use a hose clip clamp to securely attach
the grey drainage hose end to the under
sink drainage unit using a hose clamp.
