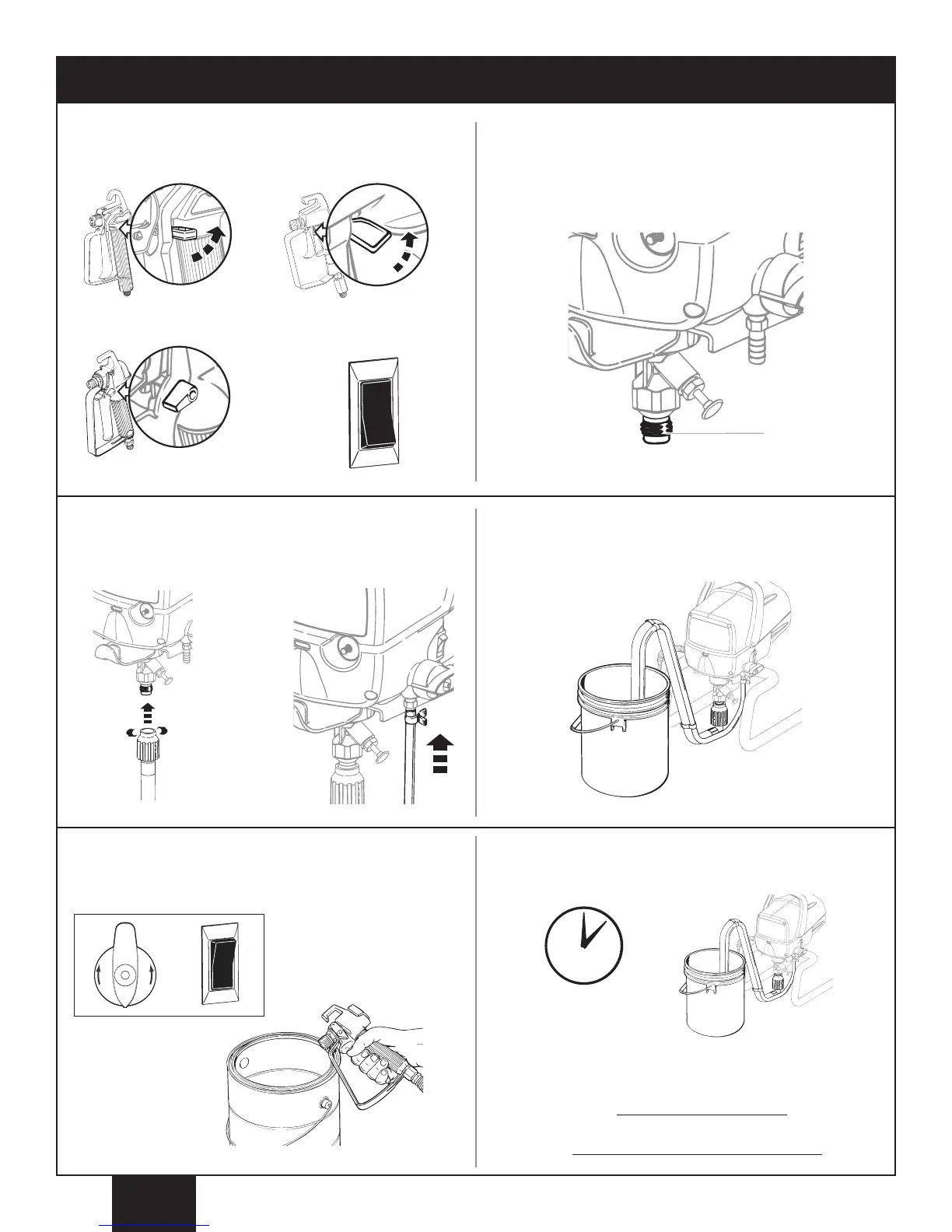

SprayTECH 1720 - Cleaning Procedures; Cleaning the Suction Set

16
English
1. Lock the gun and turn the pump OFF (O).
3. When suction set is clean, thread the suction tube back
into the inlet valve, and replace the return tube onto the
return tube fitting. Replace clip.
4. Submerge the suction set into a bucket of
NEW cleaning
solution.
5. Turn the PRIME/SPRAY knob to PRIME. Turn the pump
ON (l), and trigger the gun once into a waste container to
relieve pressure.
(a)
2. Remove the suction hose and return tube and clean it
using the appropriate cleaning solution. You should also
wipe the threads of the inlet nut
(a) and remove and clean
the suction set inlet filter.
GX-08
GX-07
GX-05
O
2 to 3
minutes
6. Let the pump circulate cleaning solution through the suction
set for 2-3 minutes. Turn the pump OFF.
NOTE - If you used oil-based materials, you must flush
the pump again using water to prepare it for storage.
Repeat #1 - #11 in Cleanup- Latex materials,
instructions.
Move on to Cleaning the Spray Gun Components
.
l
SPRAY
PRIME
Cleanup - Cleaning the Suction Set
