Parts List

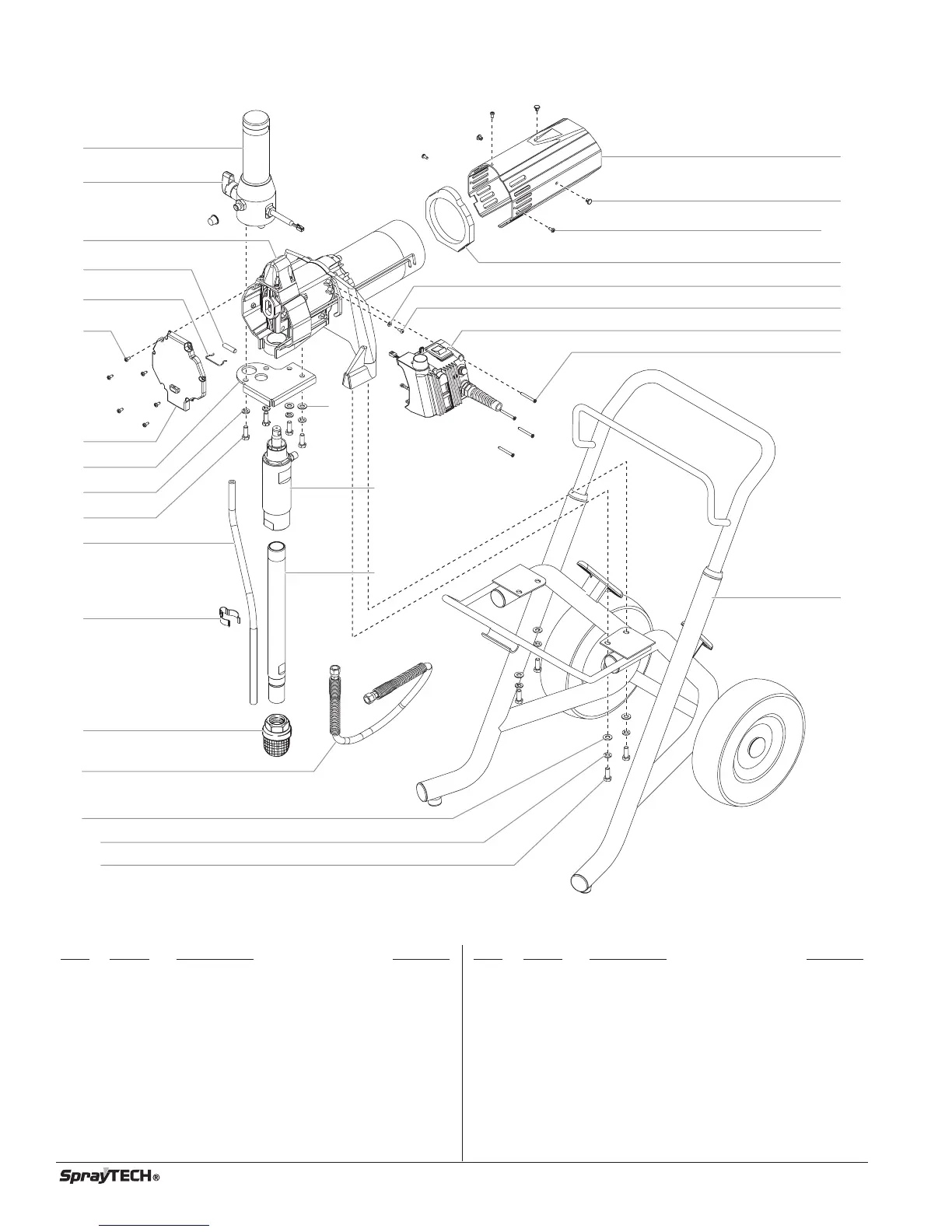

Main Assembly
2
1
6
7
8
9
10
4
3
5
14
15
9
10
12
13
11
18
21
20
22
23
24
19
6
25
15
16
17
Item Part # Description Quantity
1 ---------- Filter assembly............................................1
2 0507690 PRIME/SPRAY valve assembly..................1
3 ---------- Drive assembly ...........................................1
4 0295520 Connecting pin............................................1
5 0295519 Retaining clip ..............................................1
6 9802286 Screw..........................................................9
7 0507948 Front cover..................................................1
8 0507710 Filter mounting plate ...................................1
9 51357 Lock washer................................................8
10 0507957 Screw..........................................................8
11 0507785 Return hose ................................................1
12 0507783 Hose clamp.................................................1
13 5006536 Inlet screen .................................................1
Item
Part # Description Quantity
14 13549 Hose ...........................................................1
15 0088372 Flat washer .................................................6
16 0507210 Fluid section assembly ..............................1
17 0507703 Siphon tube.................................................1
18 0507954 Motor shroud w/labels (includes item 19)...1
19 0507794 Plug.............................................................3
20 0507863 Baffle...........................................................1
21 9822113 Ground washer ...........................................1
22 9800340 Ground screw .............................................1
23 0507189 Pressure control assembly .........................1
24 9802896 Screw..........................................................4
25 ---------- Upright cart assembly.................................1
