SprayTECH EPX2305 - Upright Cart Assembly; Filter Assembly

© SprayTECH. All rights reserved. 21

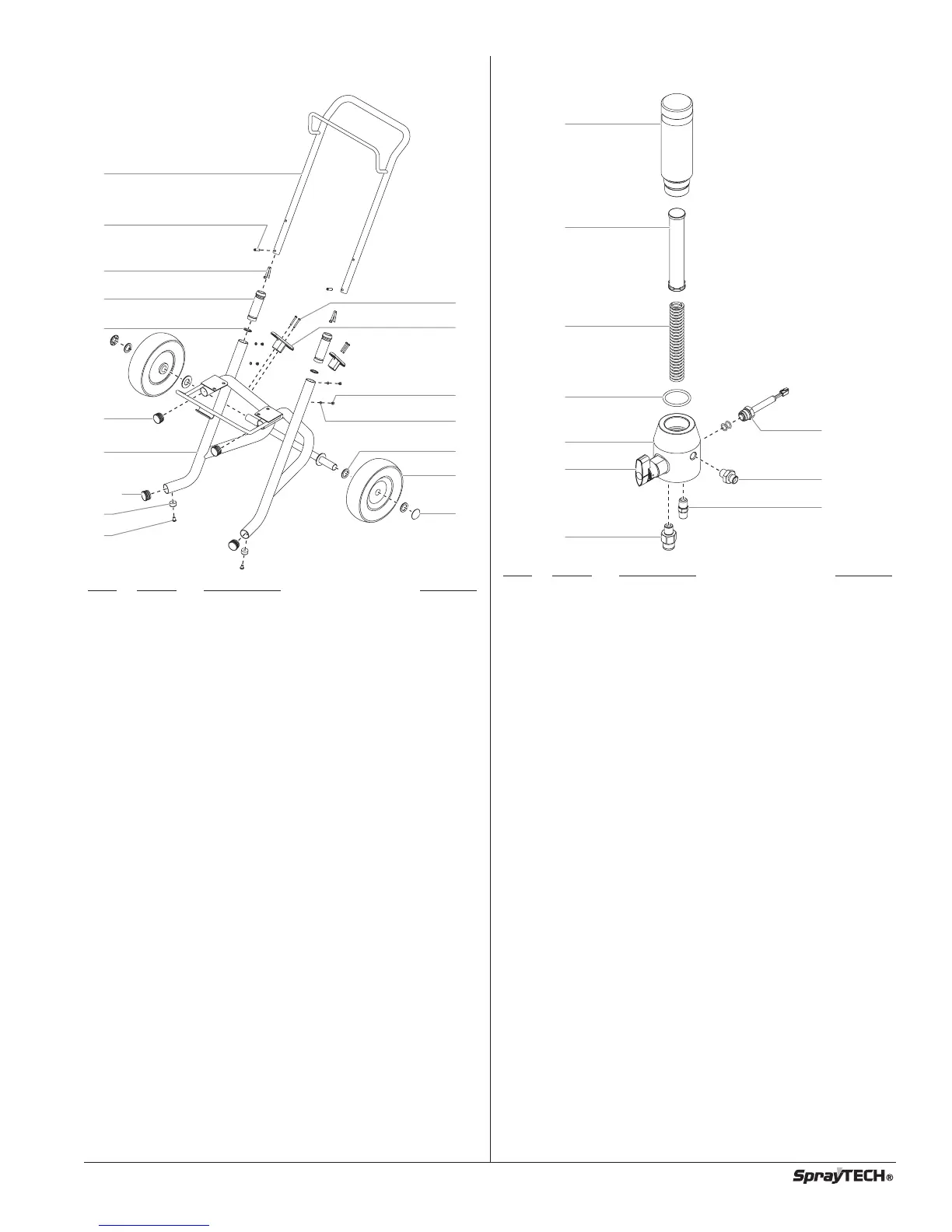

Upright Cart Assembly
Item Part # Description Quantity
1 0507939 Handle
(includes items 2–5, 12, and 13) ................1
2 0295610 Roll pin........................................................2
3 9841504 Snap button ................................................2
4 0295607 Sleeve.........................................................2
5 0295609 Washer........................................................2
6 9885571 Plug.............................................................2
7 0507940 Cart weldment (includes items 6, 8, and 9) .1
8 13538 Bumper .......................................................2
9 54458 Screw..........................................................2
10 0507774 Screw..........................................................4
11 0507655 Cord wrap ...................................................2
12 0295608 Screw..........................................................4
13 0295606 Washer........................................................4
14 0294534 Spacer ........................................................4
15 0278373 Wheel..........................................................2
16 9890104 Cap .............................................................2
1
3
4
2
5
6
8
9
6
7
12
13
10
11
14
16
15
Filter Assembly
Item Part # Description Quantity
1 0294194 Filter body assembly...................................1
2 14069 Filter, 50 mesh............................................1
3 9894245 Core spring .................................................1
4 14072
O-ring, PTFE ..............................................1
5 0507712 Filter housing ..............................................1
6 0507690 PRIME/SPRAY valve assembly..................1
7 0507793 Fitting, 1/4”..................................................1
8 0507970 Transducer..................................................1
9 05045 Outlet fitting.................................................1
10 02518 Nipple, 1/4” .................................................1
4
5
6
7
1
2
3
8
9
10
