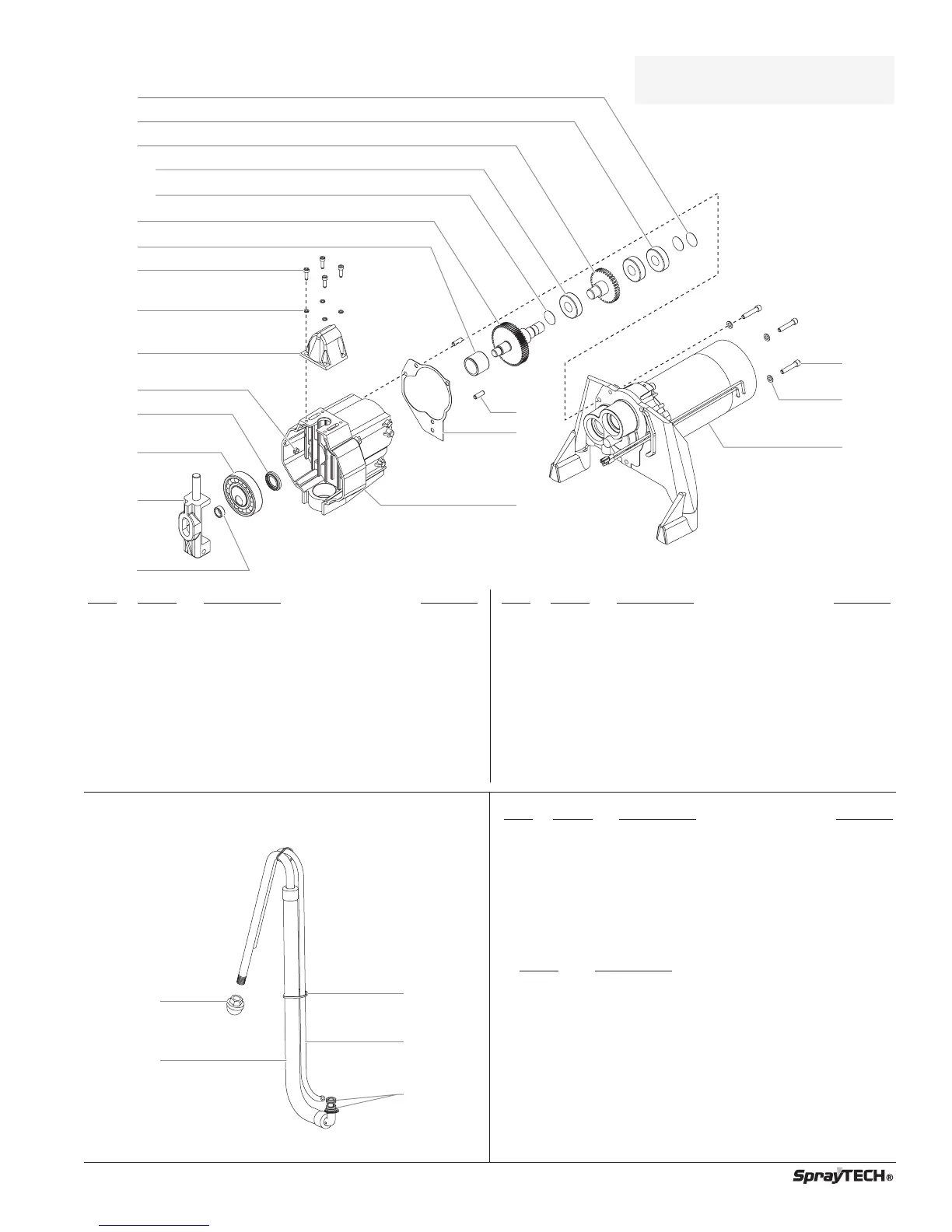

SprayTECH EPX2305 - Drive Assembly; Suction Set Assembly (Low Boy); Labels

3
2
1
1
4
5
6
7
2
10
8
9
11
13
12
19
15
16
14
17
18
© SprayTECH. All rights reserved. 19
Item Part # Description Quantity
1 0295335 Thrust washer.............................................3
2 9860417 Ball bearing.................................................3
3 0507938 1st stage gear set.......................................1
4 0507933 Output gear assembly ................................1
5 9860424 Bearing .......................................................1
6 9800339 Screw..........................................................4
7 9821515 Lock washer................................................4
8 0507932 Yoke guide assembly..................................1
9 9850640 Plug.............................................................1
10 0295327 Seal.............................................................1
11 0507934 Eccentric assembly.....................................1
12 0295518 Yoke ............................................................1
Item
Part # Description Quantity
13 0295322 Output bushing ...........................................1
14 9830116 Dowel pin....................................................2
15 0295325 Housing gasket...........................................1
16 0507716 Gear box housing .......................................1
17 54190 Screw..........................................................3
18 9820213 Flat washer .................................................3
19 0507178 Motor assembly ..........................................1
0507935 Front gear box assembly (includes items
1, 2, 4, 5, 9, 10, 11, 14, and 16)
0507927 Motor brush kit
NOTE: All electrical work should be
performed by a SprayTECH
authorized service center.
Drive Assembly
Suction Set Assembly (Low Boy)
1
2
4
3
5
Item Part # Description Quantity
1 0295565 Inlet screen .................................................1
2 0507228 Siphon hose assembly ...............................1
3 9850638 Tie wrap ......................................................2
4 0507936 Return hose ................................................1
5 9871105 O-ring..........................................................2
6 0507937 Hose clip (not shown).................................1
Labels
Part # Description
0507821 Logo label, front
0507860 Logo label, left
0507861 Logo label, right
0295803 Warning label, explosion
0295804 Warning label, injection
0295805 Shock hazard label
0507855 “Press to Reset” label
0508330 PRIME/SPRAY knob label
0507856 PRIME/SPRAY label
0507857 Pressure increase label
