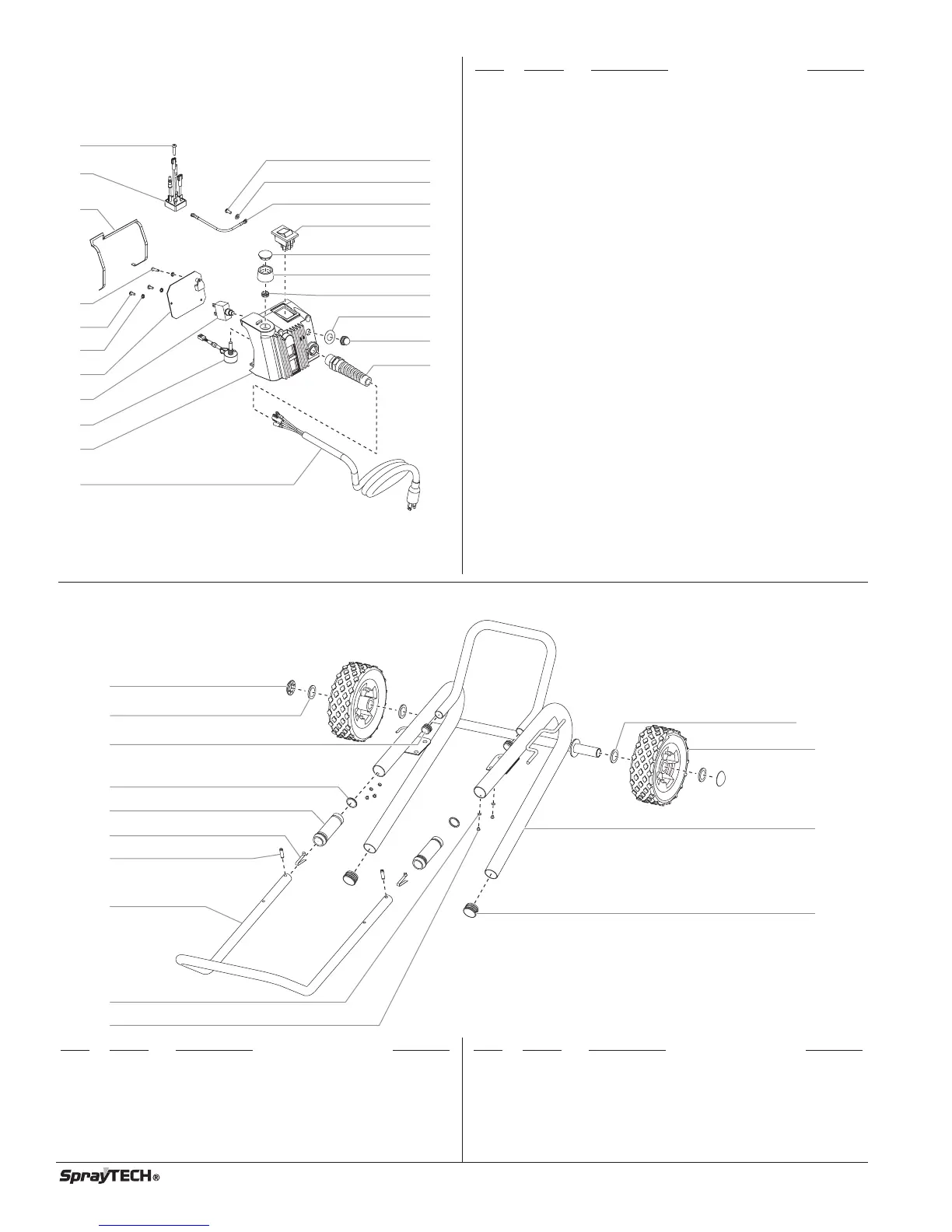

SprayTECH EPX2305 - Pressure Control Assembly; Low Boy Cart Assembly

22 © SprayTECH. All rights reserved.
Low Boy Cart Assembly
1
2
3
8
9
4
5
6
7
10
2
11
12
13
Item Part # Description Quantity
1 9890104 Cap .............................................................2
2 0294534 Wheel spacer..............................................4
3 9885546 Plug.............................................................2
4 0295609 Washer........................................................2
5 0295607 Sleeve.........................................................2
6 9841504 Snap button ................................................2
7 0295610 Roll pin........................................................2
Item
Part # Description Quantity
8 0507950 Handle assembly
(includes items 4–10) .................................1
9 0295606 Washer........................................................4
10 0295608 Screw..........................................................4
11 0270394 Wheel..........................................................2
12 0507949 Cart weldment (includes items 3 and 13)...1
13 9885571 Plug.............................................................2
Pressure Control Assembly
3
5
6
7
8
9
10
11
4
1
2
14
15
19
20
21
16
17
18
12
13
Item Part # Description Quantity
1 9802244 Screw..........................................................1
2 0507971 Rectifier.......................................................1
3 0507717 Control panel gasket...................................1
4 0507714 Screw..........................................................1
5 0507792 Screw..........................................................2
6 0507972 Lock washer................................................3
7 0507212 Circuit board assembly ...............................1
8 0507930 Circuit breaker ............................................1
9 0507973 Potentiometer .............................................1
10 0507629 Control housing...........................................1
11 0507727 Cord assembly............................................1
12 9800340 Ground screw .............................................1
13 9822113 Ground washer ...........................................1
14 0507790 Ground wire assembly................................1
15 9850936 ON/OFF switch ...........................................1
16 0507748 Knob cap.....................................................1
17 0507740 Pressure control knob.................................1
18 0507749 Nut w/seal...................................................1
19 0507855 Label, “Press to Reset”...............................1
20 9850938 Circuit breaker boot ....................................1
21 9850664 Strain relief..................................................1
