SprayTECH EPX2305 - Electrical Schematic; Accessories

© SprayTECH. All rights reserved. 23
Accessories
Part No. Description
0297xxx RC Tip Assembly
0502xxx Replacement Core, RC Tip
0297078 Tip Guard, RC Tip (11/16”)
0297070 Tip Guard, RC Tip (7/8”)
0291004 Hose, Whip End, 3' x 3/16"
0291003 Hose, Whip End, 5’ x 3/16”
0291002 Hose, Wireless, 25’ x 1/4"
0291000 Hose, Wireless, 50’ x 1/4"
0093896 Hose Connector, 1/4” x 1/4”M
0088154 Pressure Gauge
0152001 Power Roller Gun Attachment
0152308 9" Roller Cover, 3/8” Nap
0152307 9" Roller Cover, 1/2” Nap
0152309 9" Roller Cover, 3/4” Nap
0152310 9" Roller Cover, 1-1/4” Nap
0152235 12" Roller Cover, 1/2" Nap
0152236 12" Roller Cover, 3/8" Nap
0152237 12" Roller Cover, 3/4" Nap
0152238 12" Roller Cover, 1-1/4" Nap
0152700 Adapter, Power Roller Extension
0270145 G-10 Four Finger Airless Spray Gun (no tip)
0093930 Anti-Seize Compound
0152909 R-10 Telescoping Roller, 9", 3/8" Nap
0152900 R-10 Telescoping 12" Roller, 3/8" Nap
0502007 G-10 Four Finger Airless Spray Gun with 517
Reversible Tip
0502011 G-10 Two Finger Airless Spray Gun (no tip)
0502009 G-10 Two Finger Airless Spray Gun with 517
Reversible TIp
0270214 G-10 Four Finger Spray Pack with 50’ x 1/4”
airless hose
0502012 G-10 Two Finger Spray Pack with 50” x 1/4”
Airless Hose
0279920 Separating oil
0507958 Electrostatic discharge (ESD) wrist strap
9870307 Grease, 6 lb. can
GND MOTOR
Potentiometer
Ground
Rectifier
Motor
Circuit
Breaker
Transducer
Plug
WHITE
WHITE WHITE
WHITE
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
BLACK
NEUT.
MOTOR
SWITCH
BLACK
GREEN
GREEN
Electronic Control
Board (0507212)
Wire Assembly
(0507974)
JP1
LINE LOAD
JP3
TP1
TP5 TP4
TP2
TP3
Switch

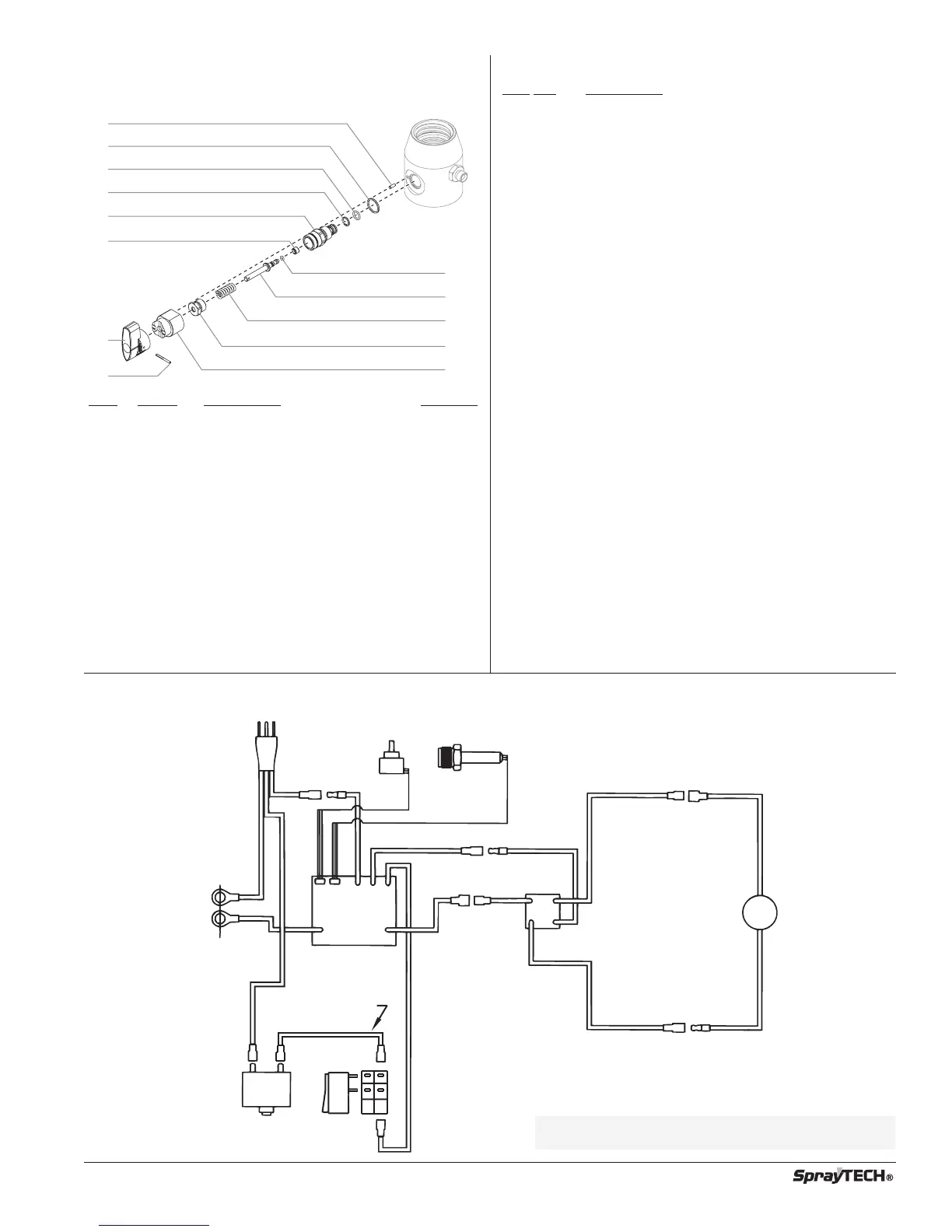

Electrical Schematic
NOTE: All electrical work should be performed by
a SprayTECH authorized service center.
PRIME/SPRAY Valve Assembly
(P/N 0507690)
Item
Part # Description Quantity
1 0507736 Dowel pin....................................................1
2 0507745 Gasket ........................................................1
3 5000529 O-ring, PTFE ..............................................1
4 0507741 O-ring, Viton................................................1
5 0507744 Valve housing .............................................1
6 0507746 Valve seat ...................................................1
7 0507662 Valve handle ...............................................1
8 5006543 Groove pin ..................................................1
9 5006547 O-ring, Viton................................................1
10 0507743 Valve stem ..................................................1
11 0507747 Spring .........................................................1
12 0507742 Valve retainer..............................................1
13 0507735 Cam base ...................................................1
1
2
3
4
5
6
9
10
11
12
13
7
8
