pressure in bar
DN 40, 50, 65
Inch 1,5", 2",
2,5", 3"
DN 80, 100
Inch 4"
0,1 1 2 3 4 5
5000
4500
4000
3500
3000
2500
2000
1500
1000
500
0
12
APV_DA4_UK-1_102018.indd
UK
Double Seat Mix Proof Valve
APV DELTA DA4
Instruction Manual: UK - rev. 1
APV

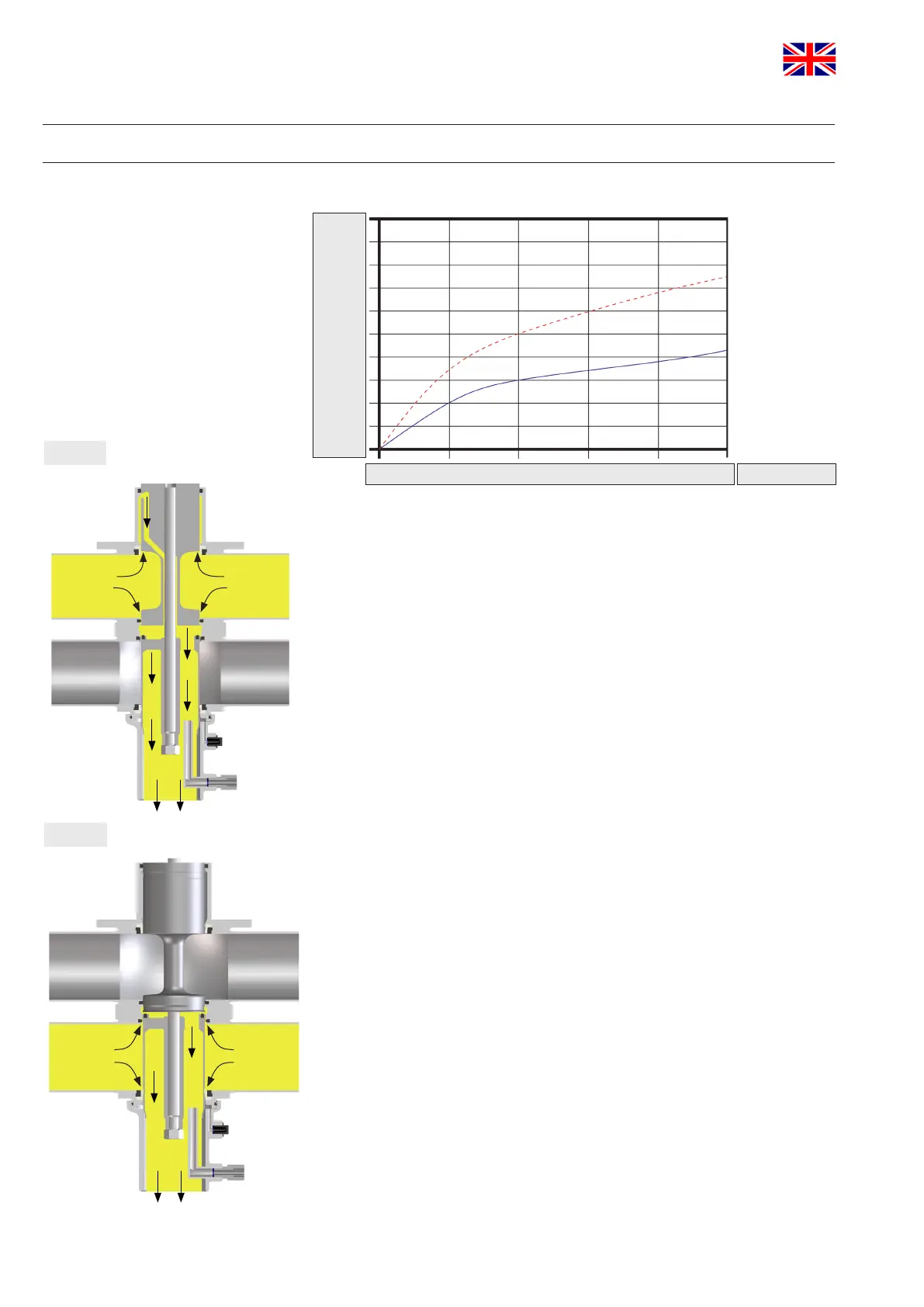

6. Cleaning
6.5. Flushing quantity in ml per lifting cycle / 5 sec.
6.6. Cleaning of upper area (g. 6.6.)
The upper valve shaft is lifted via connection (2), as shown in g.
4.1 on page 8.
Through the lifting of the upper valve shaft, the cleaning uid ushes
over the upper seat seal and the upper valve seat into the leakage
chamber and cleans this area. The cleaning uid is drained off to
the bottom in a depressurized state.
Simultaneously, the upper shaft seal and the outer surface of the
upper valve shaft are cleaned. The cleaning uid is guided into the
leakage chamber and drained off to the bottom.
The lifting stroke is limited by a metallic stop.
6.7. Cleaning of lower area (g. 6.7.)
The lower valve shaft is lifted via connection (3), as shown in g. 4.1
on page 8.
By lifting the lower valve shaft, the cleaning uid ushes over the
lower seat seal into the leakage chamber and cleans this area. The
cleaning uid is drained off to the bottom in a depressurized state.
Simultaneously, the lower shaft seal and the outer surfaces of the
lower valve shaft are cleaned. The cleaning uid is drained off to the
bottom in a depressurized state.
The lifting stroke is limited by a metallic stop.
fig. 6.6.
fig. 6.7.
