Double Seat Mix Proof Valve
APV DELTA DA4
Instruction Manual: UK - rev. 1
APV
9. Technical Data

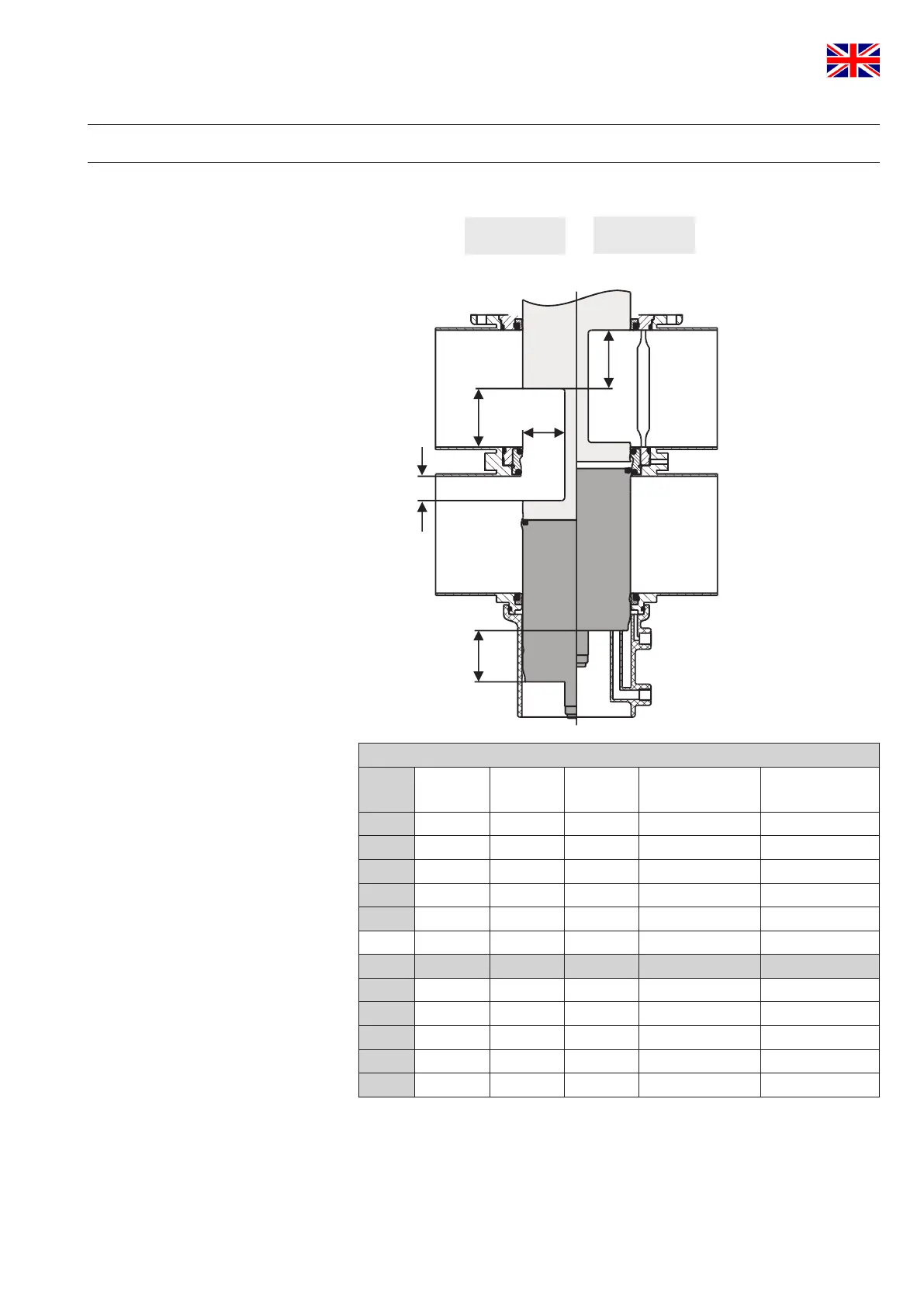

9.5. Valve stroke / Opening cross section
Dimensions in mm
DN A B C
stroke H1 stroke H2
upper shaft lower shaft
40 4 5 21,2 34 28
50 11 10 21,2 39 33
65 21 16 21,2 45 39
80 31 21 35,2 50 44
100 50 21 35,2 50 44
Inch
1,5" 4 5 21,2 34 28
2" 11 10 21,2 39 33
2,5" 15 16 21,2 45 39
3" 28 16 21,2 45 39
4" 50 21 35,2 50 44
H2
B
A
C
H1
valve
closed
valve
open
