Double seal valve
DELTA SD4-ATEX
Instruction Manual: UK - rev. 0
APV
9. TechnicalData

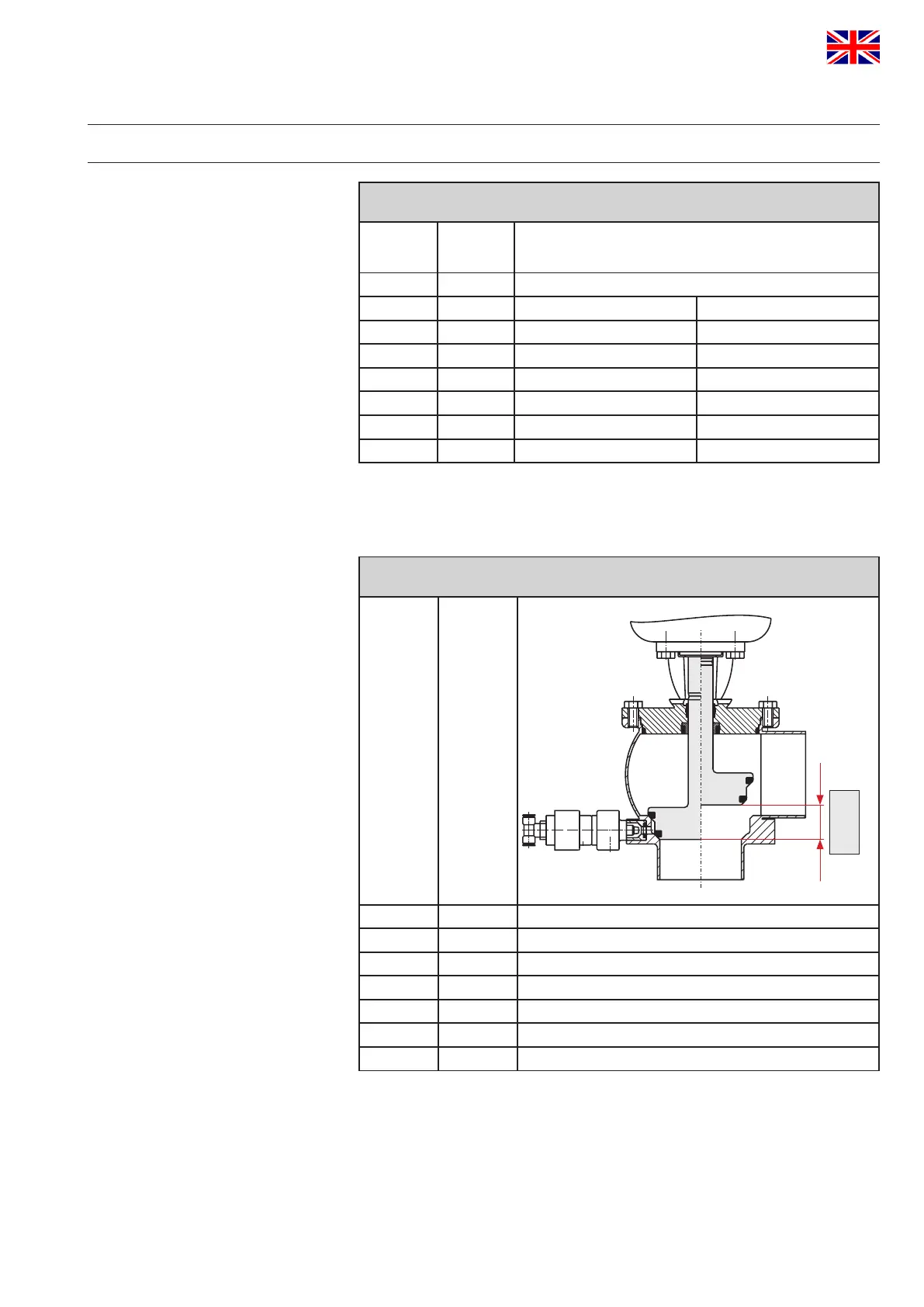

9.3.SD4Closingtimes
Closing times in sec
Pneumaticairpressure6bar
Hoselength1m
DN Inch 1 m 10m
25 1" 1 sec. 1,5 sec.
40 1,5" 1 sec. 1,5 sec.
50 2" 1 sec. 1,5 sec.
65 2,5" 1 sec. 2,5 sec.
80 3" 1 sec. 3,0 sec.
100 4" 1,2 sec. 3,5 sec.
Times mentioned are only approximate values from sample measurements.
9.4. SD4Valvestroke
DN Inch Stroke
25 1" 12
40 1,5" 25
50 2" 28
65 2,5" 28
80 3" 28
100 4" 28
stroke
