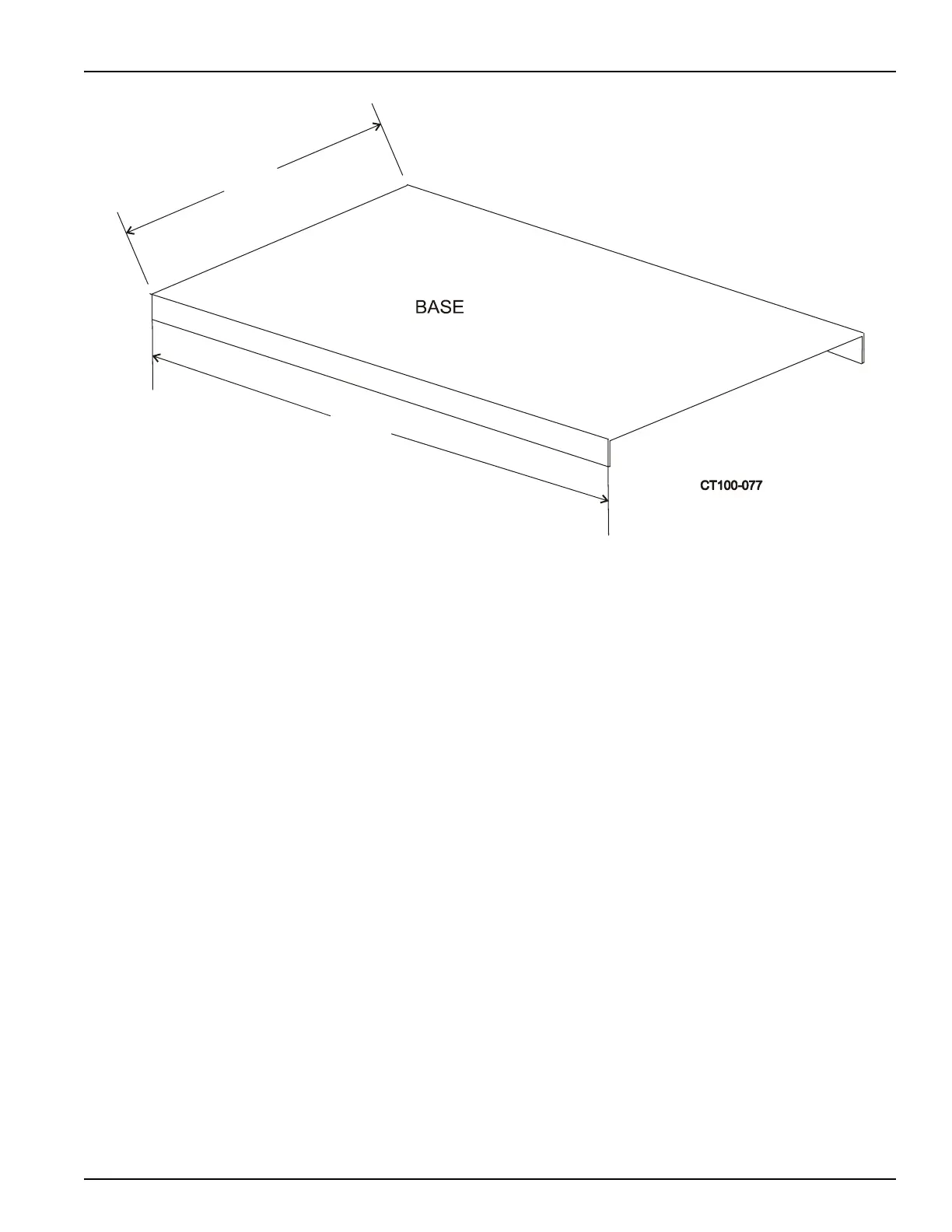

Figure 7 - Base Plate Dimensions for Modular Base-Mounted Centrifugal Pumps
Width
Length
Waukesha Cherry-Burrell Introduction
10/2010 95-03009 Page 21
Base plates (optional) are provided in three widths and five lengths
(depending on motor frame and pump model).
Widths Available:
10 inches
15 inches
18 inches
Lengths Available:
20 inches (Style A Only)
24 inches
32 inches
38 inches
50 inches
