SPX 2085 - Type 4 Seal Kits

Waukesha Cherry-Burrell Parts Lists
10/2010 95-03009 Page 51

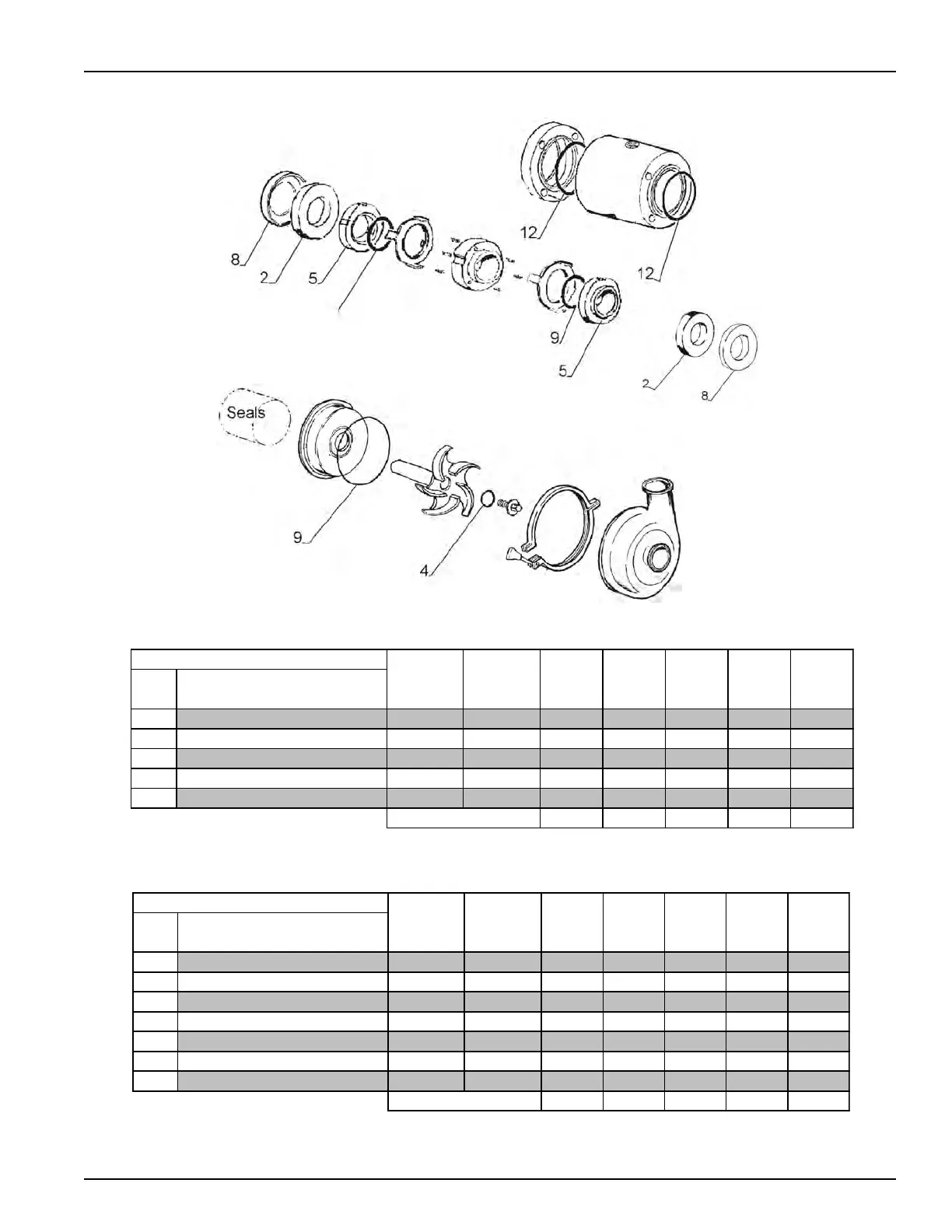

Type 4 Seal Kits
CT100-173
6
Basic Seal Kit
2075
4
Impeller Retainer O-Ring, FKM 1 1 V70214 V70220 V70220 V70220 V70220
5
Rotary Seal, Carbon 2 2 9-225A 9-225A 9-225A 9-225A 9-225A
6
Seal O-Ring, FKM 2 2 V70224 V70224 V70224 V70224 V70224
9
Casing O-Ring, FKM 1 1 V70252 V70439 V70446 V70446 V70450
12
Seal Housing O-Ring, FKM 2 2 V70039 V70039 V70039 V70039 V70039
309-249 309-250 309-251 309-251 309-252
PL5030-CH15
2105
KIT CONTAINS
ITEM
NO.
KIT PART NUMBER
QTY.
REQ. PER
PUMP
QTY. IN
TYPE 1
BASIC
DESCRIPTION
2065LV
2065
2065HV
2085LV
2085
2045
Complete Seal Kit
2075
2
Stationary Seal, Purebide 2 2 23-17 23-17 23-17 23-17 23-17
4
Impeller Retainer O-Ring, FKM 1 1 V70214 V70220 V70220 V70220 V70220
5
Rotary Seal, Carbon 2 2 9-225A 9-225A 9-225A 9-225A 9-225A
6
Seal O-Ring, FKM 2 2 V70224 V70224 V70224 V70224 V70224
8
L-Gasket, FKM 2 2 9-37 9-37 9-37 9-37 9-37
9
Casing O-Ring, FKM 1 1 V70252 V70439 V70446 V70446 V70450
12
Seal Housing O-Ring, FKM 2 2 V70039 V70039 V70039 V70039 V70039
309-253 309-254 309-255 309-255 309-256
PL5030-CH16
KIT PART NUMBER
KIT CONTAINS
ITEM
NO.
DESCRIPTION
2105
QTY.
REQ. PER
PUMP
QTY. IN
TYPE 1
BASIC
2045
2065LV
2065
2065HV
2085LV
2085
