Waukesha Cherry-Burrell Maintenance
10/2010 95-03009 Page 49

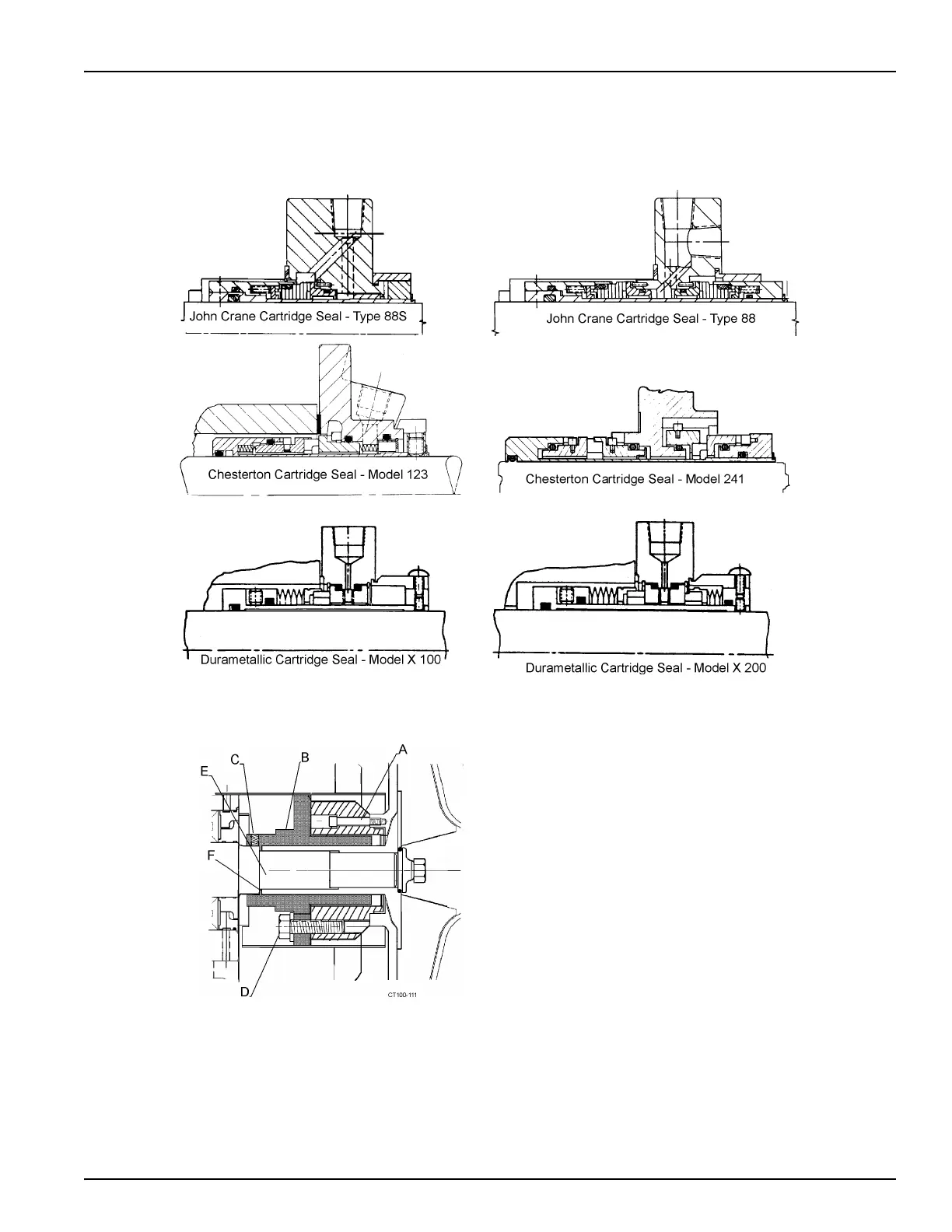

Cartridge Seal Dimensions
The following pictorial list of cartridge seals is provided to assist in identifying some of the seals provided with the
Model 200 centrifugal pumps. Use of these cartridges requires a cartridge seal adapter.
Figure 66 - Installed Cartridge Seal Length (for aid of assembly)
Figure 67 - Typical Cartridge Seal Installation
A. Socket Head Cap Screw
B. Cartridge Seal Assembly
C. Set Screw (2)
D. Cap Screw
E. Bearing Shaft
F. Clearance Shims
