SPX 2085 - Parts Lists

Parts Lists Waukesha Cherry-Burrell
Page 50 95-03009 10/2010
Parts Lists

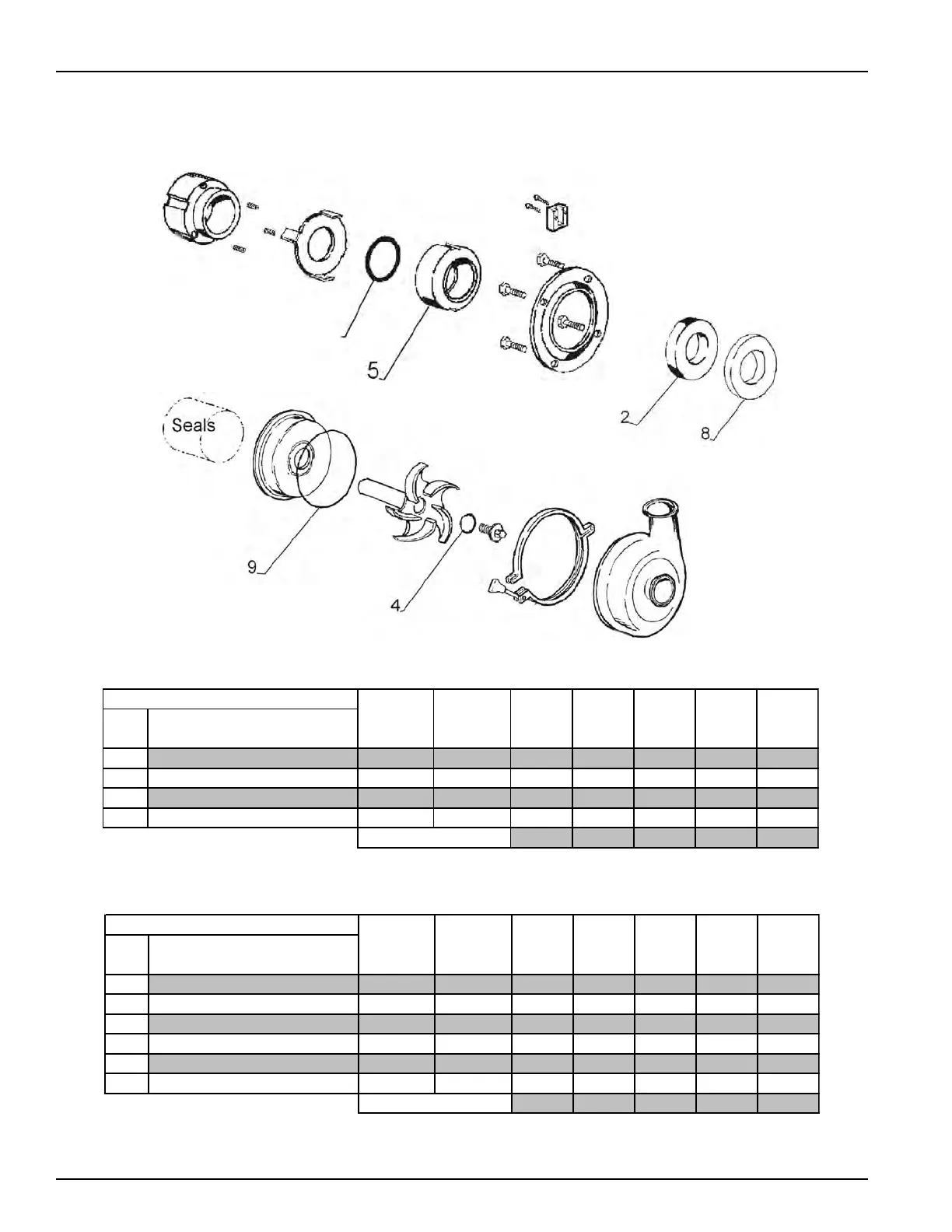

Type 1 Seal Kits
CT100-172
6
Basic Seal Kit
4
Impeller Retainer O-Ring, FKM 1 1 V70214 V70220 V70220 V70220 V70220
5
Rotary Seal, Carbon 1 1 9-225A 9-225A 9-225A 9-225A 9-225A
6
Seal O-Ring, FKM 1 1 V70224 V70224 V70224 V70224 V70224
9
Casing O-Ring, FKM 1 1 V70252 V70439 V70446 V70446 V70450
309-241 309-242 309-243 309-243 309-244
PL5030-CH13
KIT PART NUMBER
2075
ITEM
NO.
KIT CONTAINS
DESCRIPTION
2085LV
2085
2105
QTY.
REQ. PER
PUMP
QTY. IN
TYPE 1
BASIC
2045
2065LV
2065
2065HV
Complete Seal Kit
2075
2
Stationary Seal, Purebide 1 1 23-17 23-17 23-17 23-17 23-17
4
Impeller Retainer O-Ring, FKM 1 1 V70214 V70220 V70220 V70220 V70220
5
Rotary Seal, Carbon 1 1 9-225A 9-225A 9-225A 9-225A 9-225A
6
Seal O-Ring, FKM 1 1 V70224 V70224 V70224 V70224 V70224
8
L-Gasket, FKM 1 1 9-379-379-379-379-37
9
Casing O-Ring, FKM 1 1 V70252 V70439 V70446 V70446 V70450
309-245 309-246 309-247 309-247 309-248
PL5030-CH14
KIT PART NUMBER
DESCRIPTION
KIT CONTAINS
2105
QTY.
REQ. PER
PUMP
2085LV
2085
2065LV
2065
2065HV
2045
ITEM
NO.
QTY. IN
TYPE 1
BASIC
