SPX 2085 - Page 23

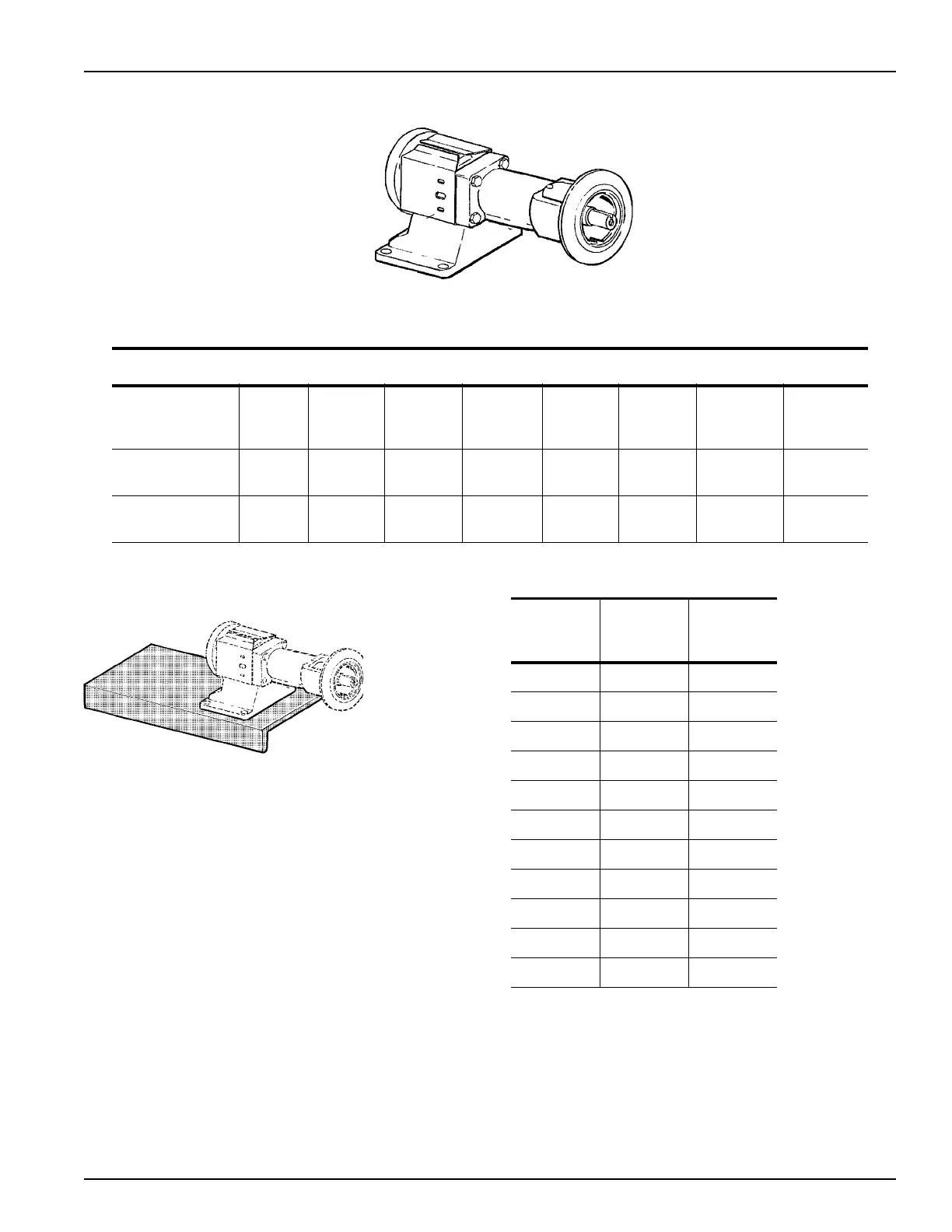

Figure 10 - Pedestal Pump (Less Base and Motor)
Pump Model
PEDESTAL
2045
lbs
(KG)
2065LV
lbs
(KG)
2065
lbs
(KG)
2065HV
lbs
(KG)
2075
lbs
(KG)
2085LV
lbs
(KG)
2085
lbs
(KG)
2105
lbs
(KG)
SMALL BORE
92
(41)
106 (48)
108
(4
8.9)
1
10
(49.8)
131
(59.4)
131
(59.4)
125
(56.6)
--
LARGE BORE -- -- -- -- -- --
235
(106.5)
240
(1
08.8)
Figure 11 - Base Weight (add to Pedestal
Weight)
MOTOR
SMALL
BORE
LBS (KG)
LARGE
BORE
LBS (KG)
48 30 (13.6) --
56 30 (13.6) --
143/145T 31 (14.6) --
182/184T 32 (14.5) 50 (22.6)
213/215T 33 (14.9) 50 (22.6)
254/256T 40 (18.1) 52 (23.5)
284/286T 35 (15.8) 62 (28.1)
284/286TS -- 64 (29.0)
324/326T -- 65 (29.4)
324/326TS -- 65 (29.4)
364TS -- 65 (29.4)
