SPXFLOW C-216 User Manual

Introduction Waukesha Cherry-Burrell
®
Brand C-Series Pump
Page 10 95-03008-IEC 01/2019
Pump Dimensions
NOTE: Dimensions are for guidance only. Contact your SPX FLOW Representative for more detailed
measurements if needed. Any dimensions that include the motor may vary depending on the motor selected.

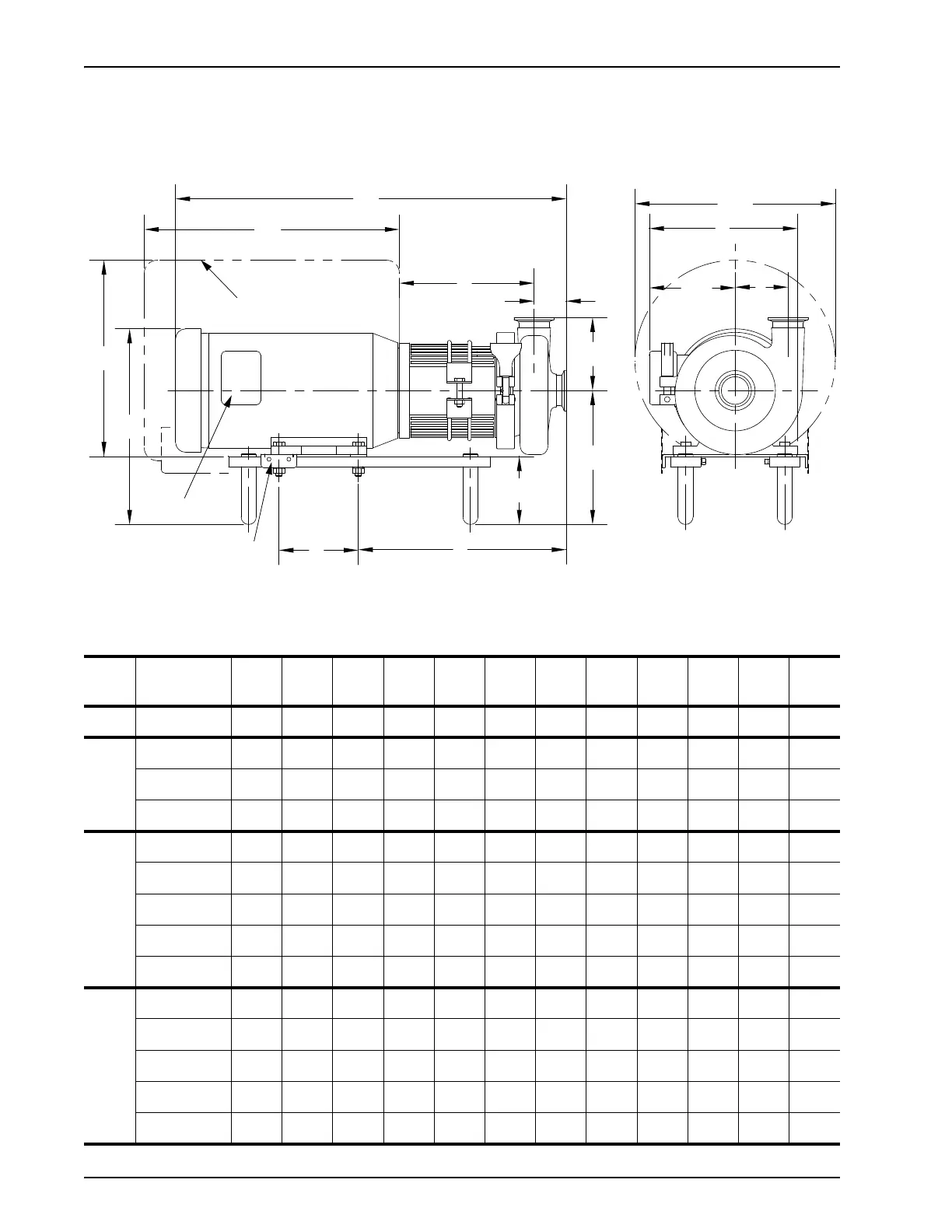

Figure 1 - Pump Dimensions with IEC Motor with optional motor shroud
Table 1: Pump Dimensions with IEC Motor with optional motor shroud (dimensions in mm)
Pump
Model
IEC Motor
Frame
A B CP J E L HDAAABACADAE
C-100 D71
161 194 364 153 90 70 135 18 102 253 322 249
C-114
D71
161 194 455 244 90 158 135 18 102 253 322 249
D80
187 216 534 264 100 172 144 22 115 253 362 254
D90L
214 237 554 270 100 172 154 22 130 253 362 254
C-216
D80
187 216 539 269 100 170 144 22 115 253 362 254
D90L
214 237 559 275 100 170 154 22 130 253 362 254
D100L
250 264 591 311 140 199 164 27 149 308 395 310
D112M
250 278 631 319 140 199 176 27 149 363 523 361
D132S
309 319 809 354 140 216 196 27 187 363 523 361
C-218
D90L
214 237 566 282 100 176 154 22 130 253 362 254
D100L
250 264 579 298 140 186 164 27 149 308 395 310
D112M
250 278 619 306 140 186 176 27 149 363 523 361
D132S
309 319 801 346 140 208 196 27 187 363 523 361
D160L/M
406 392 870 403 210 246 224 35 242 483 729 470
A
Z
AB
AC
BB
CP
AE
B
E
J
HD
X
AD
L
Y
AA
CT100-216
AA= Conduit Size, BB height = 63,5 +/- 25,4 mm
Optional motor
shroud (not avail. on
all frame sizes)
Only needed for motor
shroud
