i-BRAKE AND COMPATIBLE HUBS
TECHNICAL DATA / ASSEMBLY REQUIREMENTS
Technical Manual 2006
Caution:
• There is a risk of accident if unsuitable forks or
frames are used (see page 55).
• Only 24”/26”/28” wheels are suitable for use.
• The total weight of the bicycle with rider and baggage
may not exceed 125 kilograms.
• The i-BRAKE is not useable for tandems, transport
bicycles, and similar loads.
• The i-BRAKEs must go on the left side viewed from
behind the rear of the bicycle.
• SRAM i-BRAKEs are „DIN Plus City“ certified.

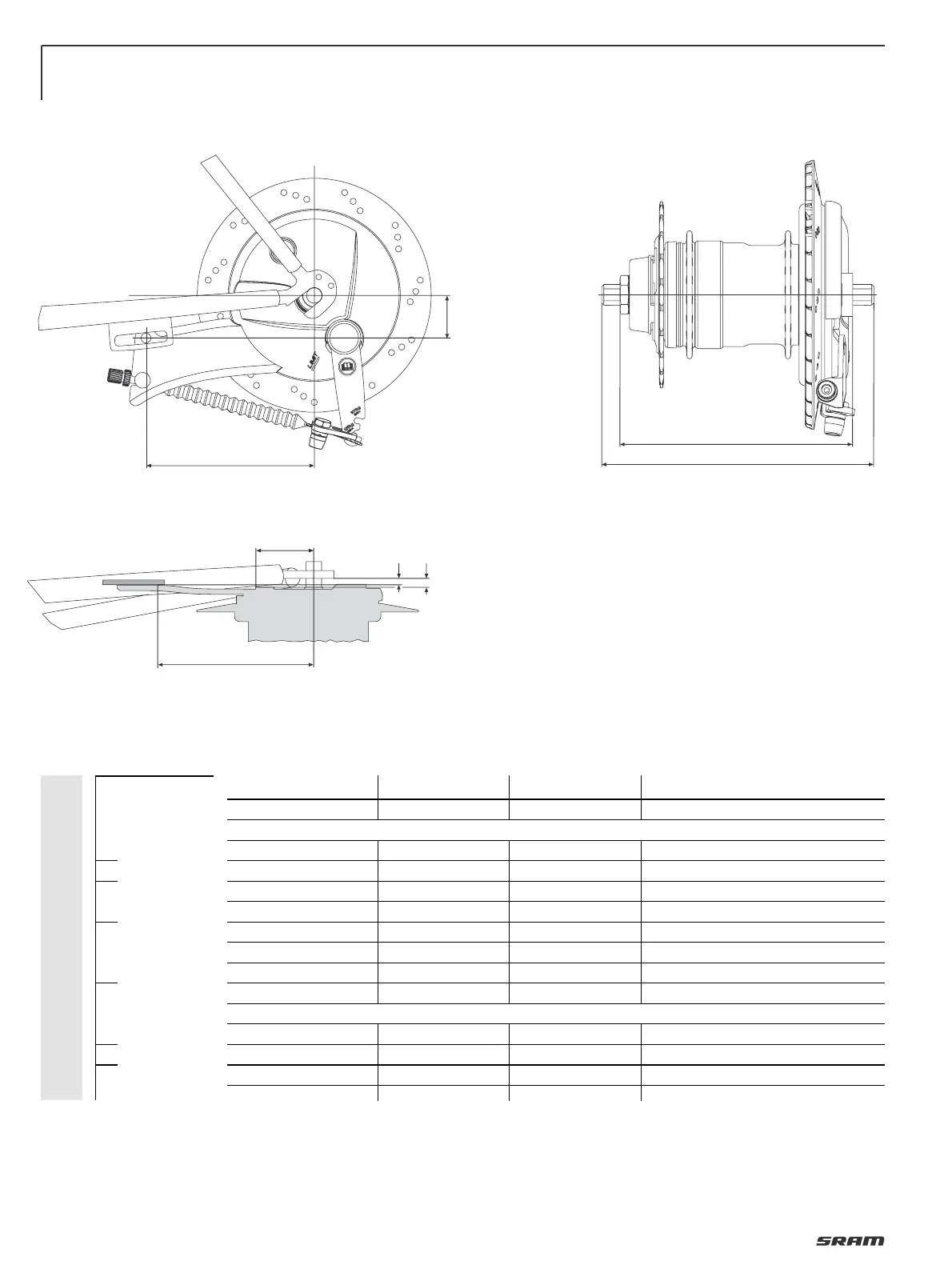

110
100
52
GW
L
18
4 5
DualDrive SRAM S7 SRAM P5 SRAM T3
Brake Model i-BRAKE for DualDrive i-BRAKE for SRAM S7 i-BRAKE for SRAM P5 i-BRAKE for SRAM T3
Performance Level Comfort / City / Trekking
Hub DD 27 / 24 i-BRAKE comp. SRAM S7 i-BRAKE comp. SRAM P5 i-BRAKE comp. SRAM T3 i-BRAKE compatible
Over Locknut Dim., OLD 135 mm 135 mm 126 mm 118 mm
Length, L 182.6 mm 188.5 mm 179 mm 166 mm
Ends Diameter FG 10.5 FG 10.5 FG 10.5 FG 10.5
Holes 36 36 36 36
Hole Diameter 2.6 mm 3 mm 3 mm 3 mm
Hole Reference ø 67 mm 75 mm 75 mm 58 mm
Tandem Compatib.
— ———
Compat. brake lever Linear Pull compatible
Brake anchor plate Version D Version D Version D Version D
Weight (complete)
1640 g 2164 g 1920 g 1554 g
Hub Shell Aluminium, anodisiert Steel, matt chrome plated Steel, matt chrome plated Steel, matt chrome plated
Brake Drum Stainless steel Stainless steel Stainless steel Stainless steel
➔ ➔ ➔
➔ ➔ ➔
AxleSpokeFinish
