SRAM DUALDRIVE - Rear Wheel Removal; Rear Wheel Installation

DualDrive · December 2002
10
MAINTENANCE AND CARE

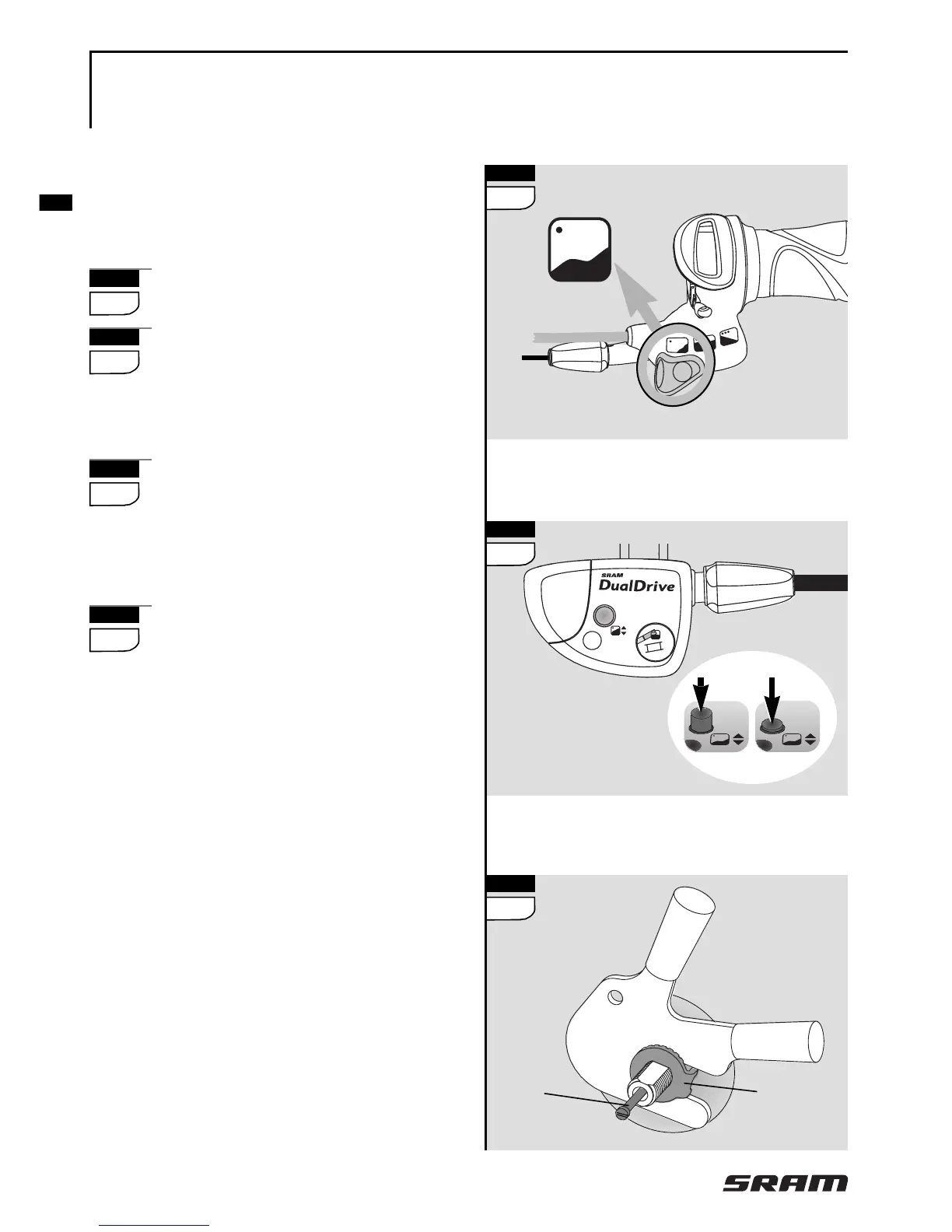

REMOVE AND FIT REAR WHEEL
REMOVE REAR WHEEL
» Rotate the twist shifter to the hig-
hest gear position (speed „7/8/9“).
Place thumb shift lever
in hill riding mode.
Push Clickbox button down.
» Pull Clickbox off the axle.
» Dismantle wheel.
Unscrew shifting rod (1)
FIT REAR WHEEL
» Fit wheel in frame dropouts.
Place retaining washers (2) on
both sides of the axle – the
serrations must bear against the
dropout (washers with lugs: these
must engage in the dropout slots).
» Tighten up axle nuts. Tightening
torque 30 – 40 Nm (266 – 350 in. lbs.).
» Screw shifting rod (1) into the hub
axle and thigthen it with 0.2 Nm
(1.8 in. lbs.).
» Push on Clickbox to the stop on
the hub axle. The thumb shift lever
must be positioned in the hill riding
mode and Clickbox button must be
pushed down.
» Bring Clickbox button back to initial
setting by pushing it up from under-
neath.
» Check the gear settings.
