MAINTENANCE AND CARE
GEAR ADJUSTMENT
GEAR HUB

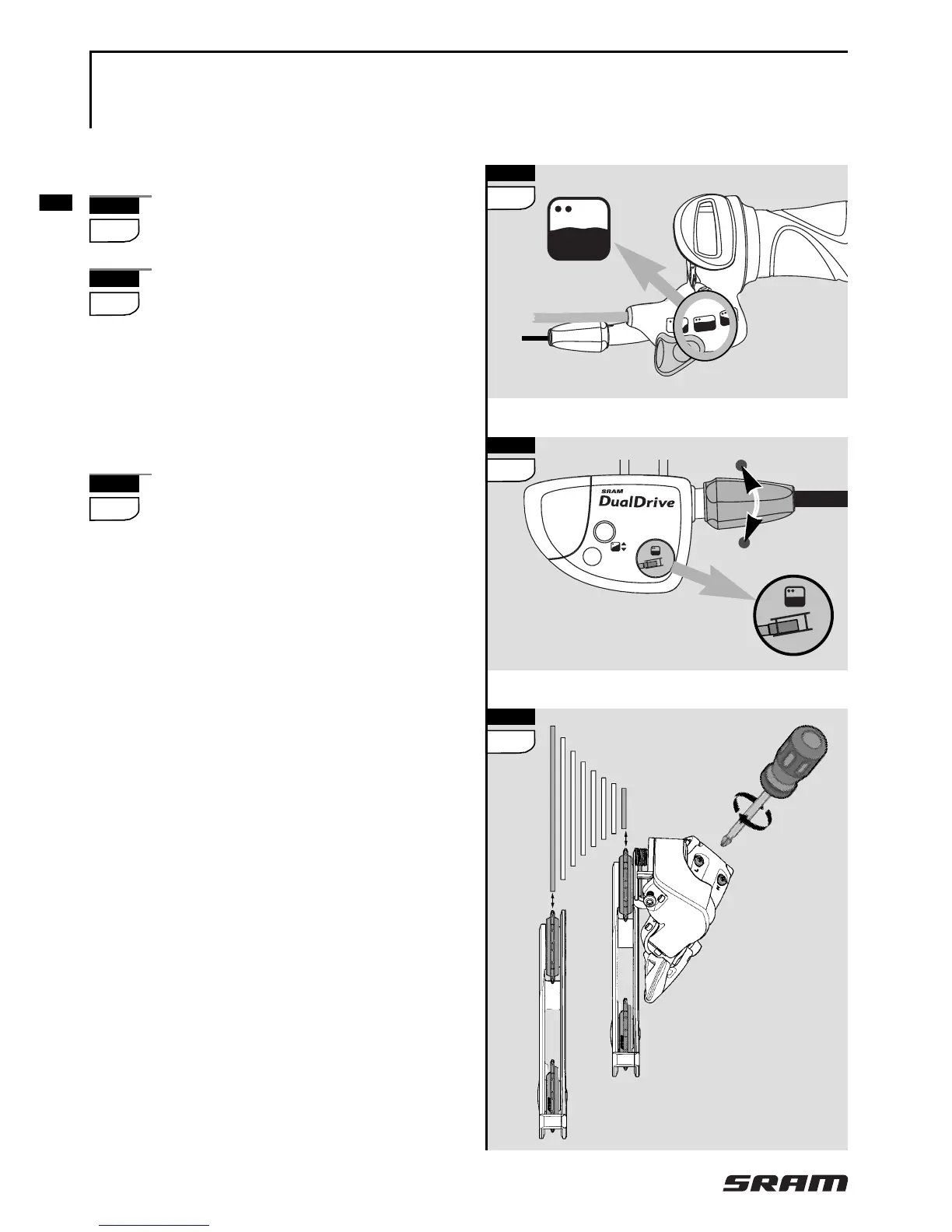

Place thumb shift lever
in standard mode.
Match up the yellow marks in
the Clickbox viewing window
by twisting the barrel adjuster.
DERAILLEUR
Limit screw adjustment:
View the rear derailleur and
pulleys from behind the rear of
the bicycle.
» Turn the limit screw marked ’H’ on
the outer link of the derailleur to
align the upper guide pulley cen-
ter with the outboard edge of the
smallest cog – clockwise moves
the guide pulley inboard towards
the wheel.
» While turning the crank, push the
rear derailleur towards the larger
cogs by hand.
» Align the upper guide pulley under
the largest cog, by turning the
limit screw marked ’L’ on the outer
link – clockwise moves the guide
pulley outboard away from the
spokes.
3
5
3
4
