SRAM DUALDRIVE - Assembly of Components; Hub Assembly Steps; Wheel Dropout Fitting

1
0,2 Nm
2
3
17
ASSEMBLY
OF COMPONENTS
DualDrive · December 2002
14

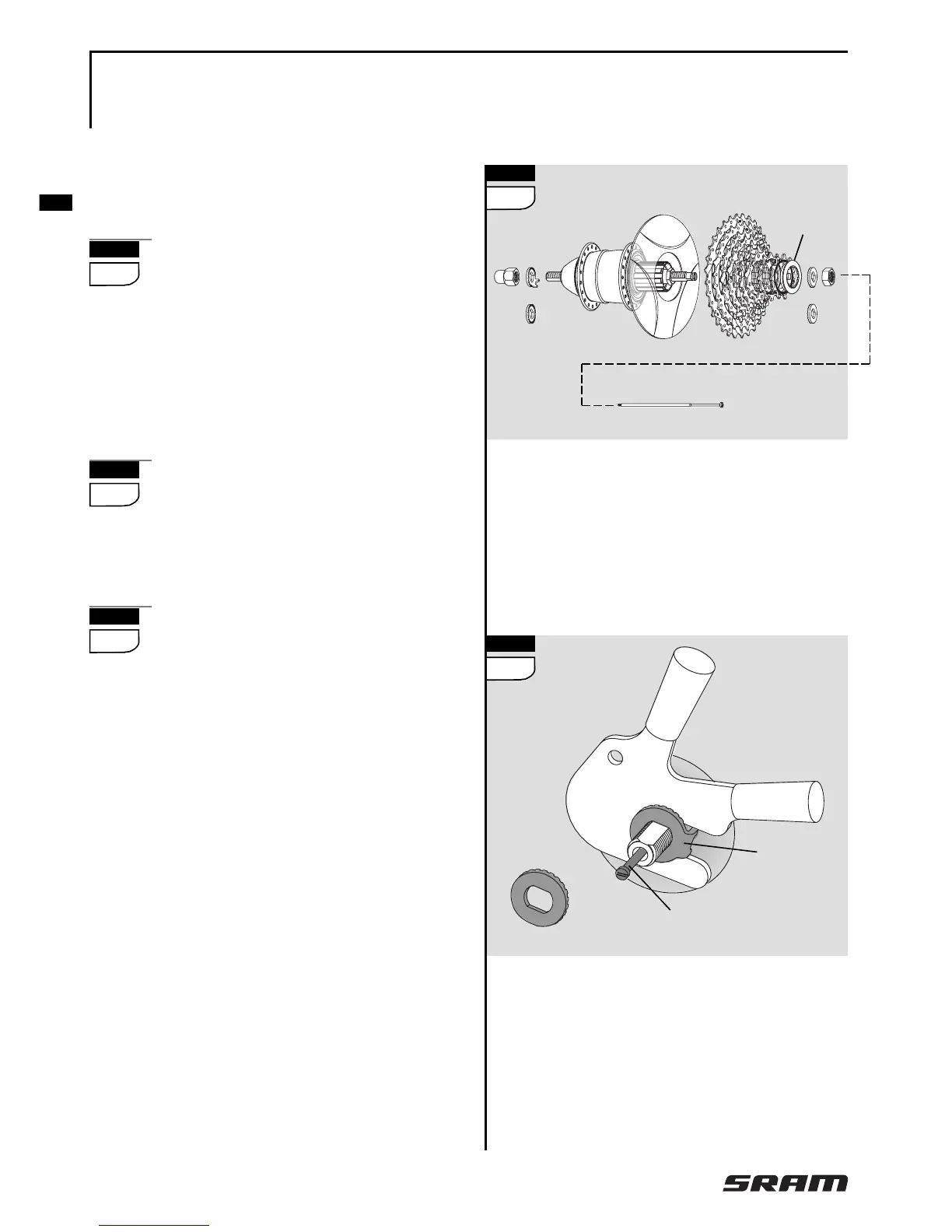

ASSEMBLY HUB
» Spoke the hub as normal.
Place spoke protector disc (1)
on shoulder of hub, fit
cassette (2) onto driver profile.
Screw lock nut (3) with cassette
tool (Park Tool FR-5 or SRAM Part
No. 4624 411 010), tightening
torque: 40 Nm (350 in.lbs.).
Screw shifting rod (1) into the
hub axle and tighten it with
0.2 Nm (1.8 in.lbs.).
» Fit wheel in frame dropouts.
Place retaining washers (2) on
both sides of the axle – the
serrations must bear against the
dropout.
– Version for horizontal dropouts (2):
the lug must engage in the
dropout slot.
– Version for vertical dropouts (3):
without lug.
» Tighten up axle nuts. Tightening
torque 30 – 40 Nm (266 – 350 in. lbs.).
