MAINTENANCE AND CARE
REAR WHEEL / WEAR PARTS

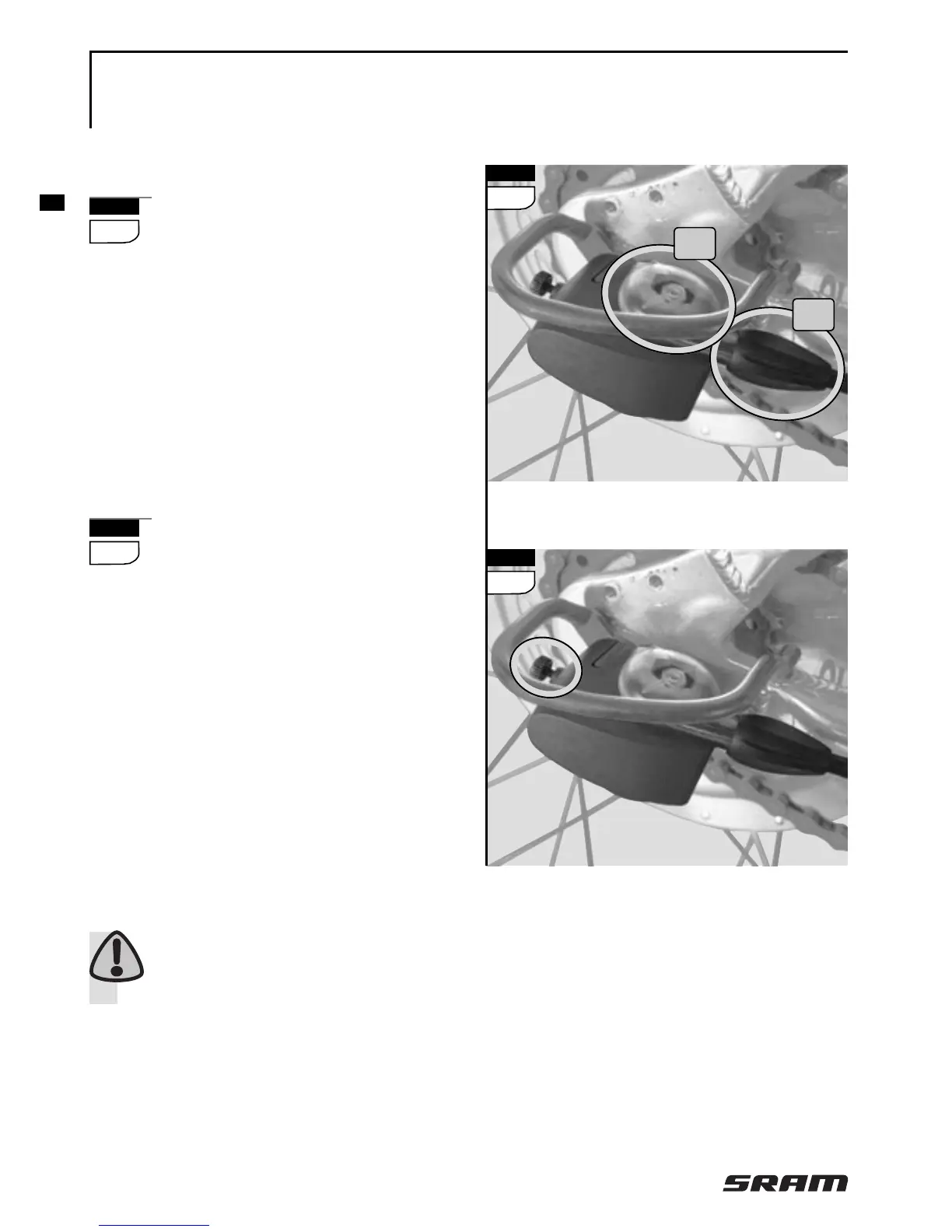

ADJUSTING GEARSHIFT
Before adjusting the gearshift
you must set the twist-grip
shift from 4th gear back to 3rd
gear.
» Align the arrows in the inspection
window (1) of the Clickbox by
turning the adjustment screw (2)
on the gearshift cable.
REMOVE REAR WHEEL
Pull the plug of the control unit
off the hub. Push the button on
the plug of the battery cable to re-
move the plug from the Sparc drive.
» Release the knurled screw on the
Clickbox and remove the Clickbox.
» Pull off the red positioning bush
and remove the shift rod/-pipe
from the axle.
» Release the two axle nuts to re-
move the rear wheel.
» The rear wheel is re-fitted in
reverse order.
The cables must not be
squeezed or pinched.
Danger of short-circuit!
WEAR PARTS
Bicycles chains, sprockets, shifting
cables, handlebar grips and batteries
are wear parts.
Take care of regular control and
timely replacement.
