Srne ML Series User Manual

3.
Product Operation and Display
3.1.LED Indicator
1
2
3
4

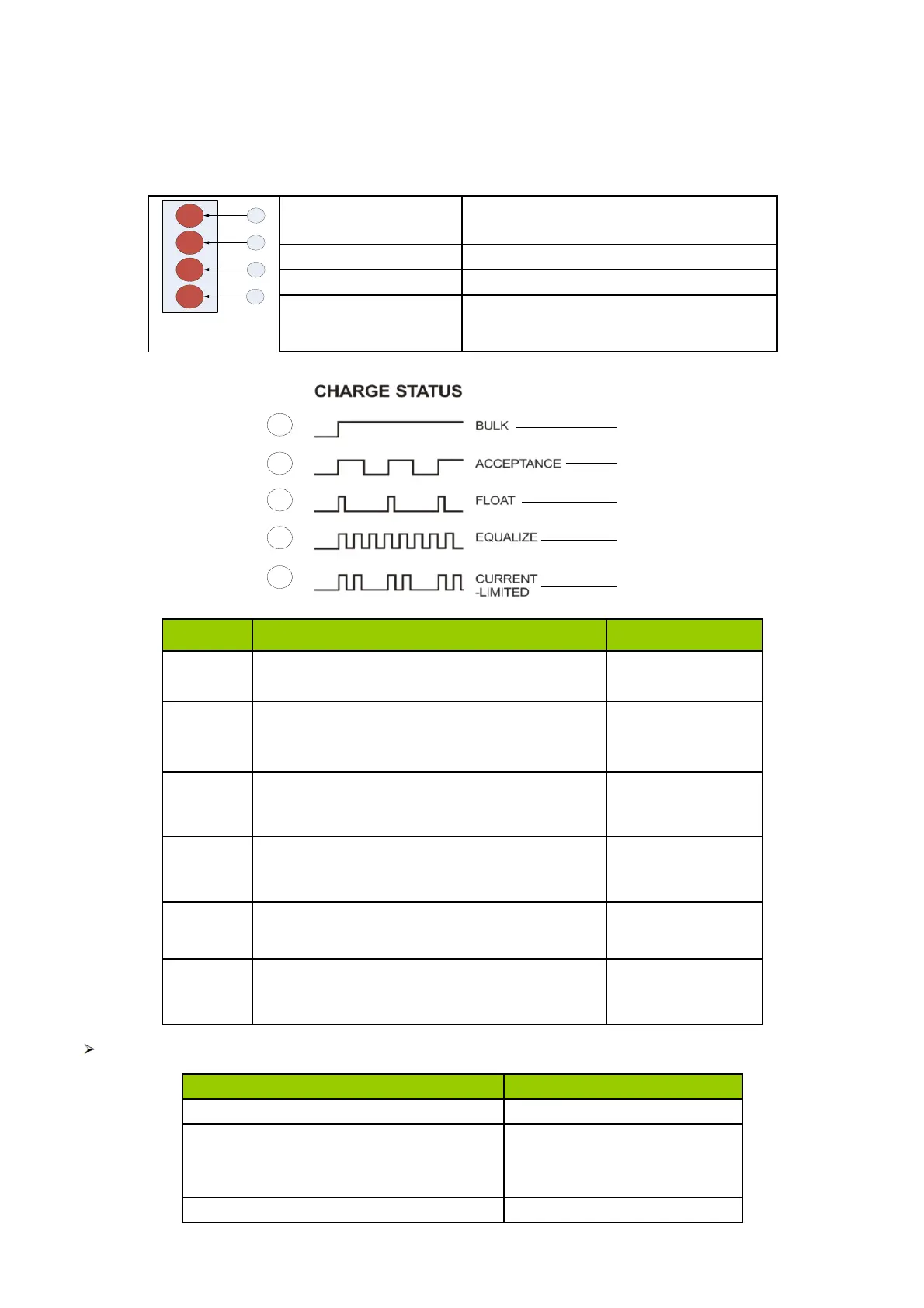

○--- PV array Indicator Indicate solar charge controller current charging
mode
○--- BAT Indicator Indicate battery current state.
○--- LOAD Indicator Indicate load switch and state.
○--- ERROR Indicator Indicate whether solar charge controller is currently
normal working.
 PV array Indicator
常亮，最大功率充电
慢闪，提升充电
单闪，浮充充电
快闪，均衡充电
双闪，限流充电
1
2
3
4
5
No. Indication State Charging State
○
Steady On MPPT Charging
○
Slow Flash
（
On 1s, Off 1s, cycle 2s
）
Boost Charging
○
Single Flash
（
On 0.1s, Off 1.9s, cycle 2s
）
Floating Charging
○
快闪
Fast Flash
（
On 0.1s, Off 0.1s, cycle 0.2s
）
Equalizing Charging
○
Double Flash
（
On 0.1s, Off 0.1s, On 0.1s, Off 1.7s, cycle 2s
）
Current
Limited Charging
○
Off Night
BAT Indicator
：
Indication State Battery State
Steady On Battery Voltage Normal
Slow Flash
（
On 1s, Off 1s, cycle 2s
）
Battery Over-Discharge
Fast Flash Battery Overvoltage
Steady On, MPPT Charging
Slow Flash, Boost Charging
Single Flash, Floating Charging
Fast Flash, Equalizing Charging
Double Flash, Current Limited Charging
