Srne ML Series - 3.5 Load Mode Setting Page

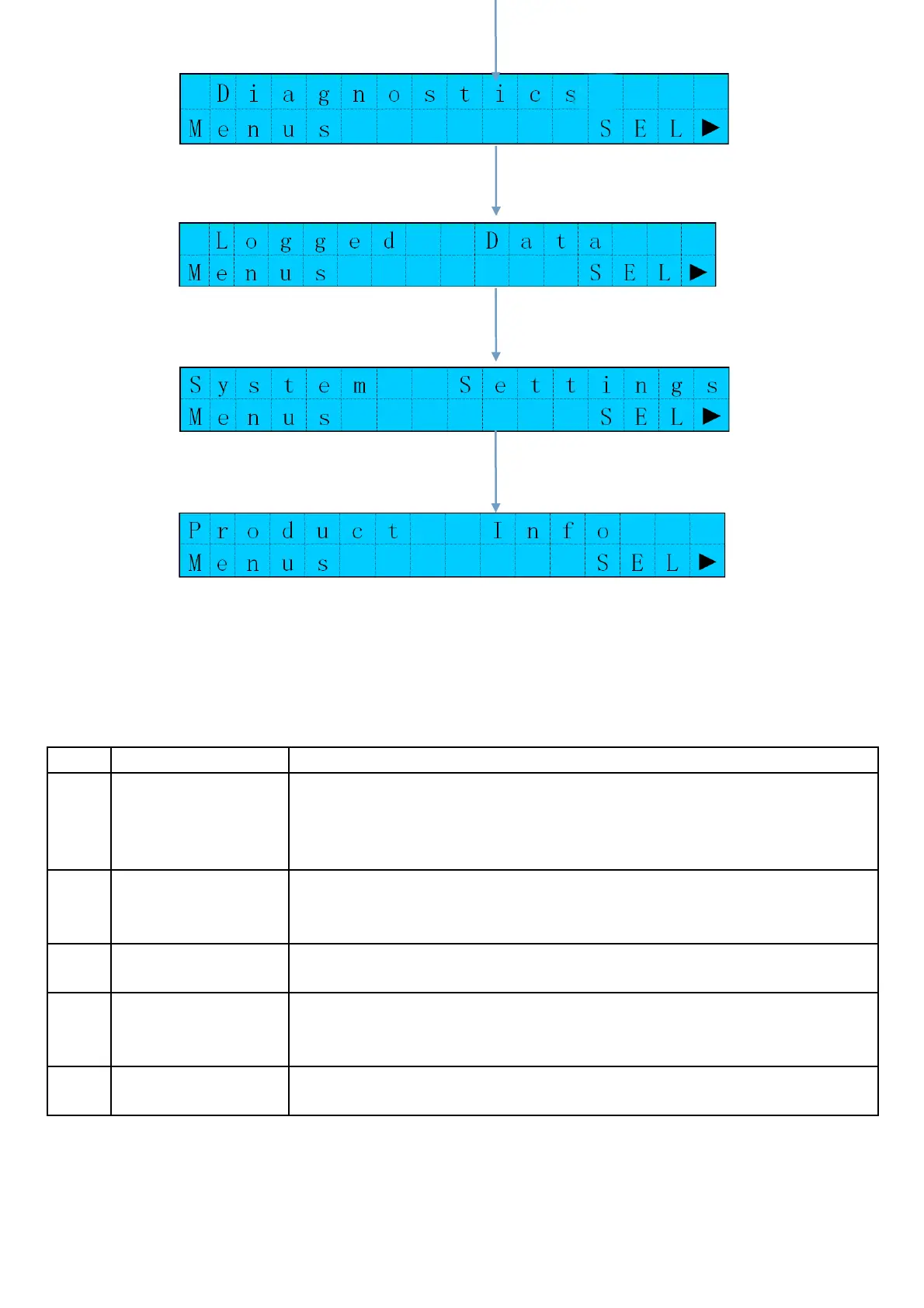

⑤System Analysis Page
⑥System Log Page
⑦Parameter Setting Page
⑧Product Information
3.5 Load Mode Setting Page

Load Mode Introduction
The solar controller has five load work modes
，
with modes referred as follows
：
Code Mode Description
0
Pure light control (light on
at night, off during daytime)
When there is no sunlight, the solar panel voltage is below the light control ON voltage, solar charge
controller will open load after delay for a certain time, when the sunlight appears, solar panel voltage
is above light control OFF voltage, solar charge controller will shut down the load after delay for a
certain time
1~14
Light time control for 1~14
hours
When there is no sunlight, the solar panel voltage is below the light control ON voltage, solar charge
controller will open load after delay for a certain time, load will shut down after working time reaches
set value.
15
Manual Mode Under this mode, the user can control load On and Off through keys, regardless of daytime or night.
This mode is used in some special load situations or used for debugging.
16
Debugging Mode Used for system debugging, close the load when there is light signal, open load when there is no light
signal, convenient for checking the correctness of the system installation during installation and
debugging.
17
Normal Open Mode Power-on load has always maintained output state. This mode is suitable for load needing 24 hours
power supply.

Load Mode Adjustment
The user adjusts load mode according to needs. The debugging mode is set by default (see Load
Mode Introduction). Mode adjustment method goes as follows:
