UM1724 Rev 14 17/68
UM1724 Hardware layout and configuration
67

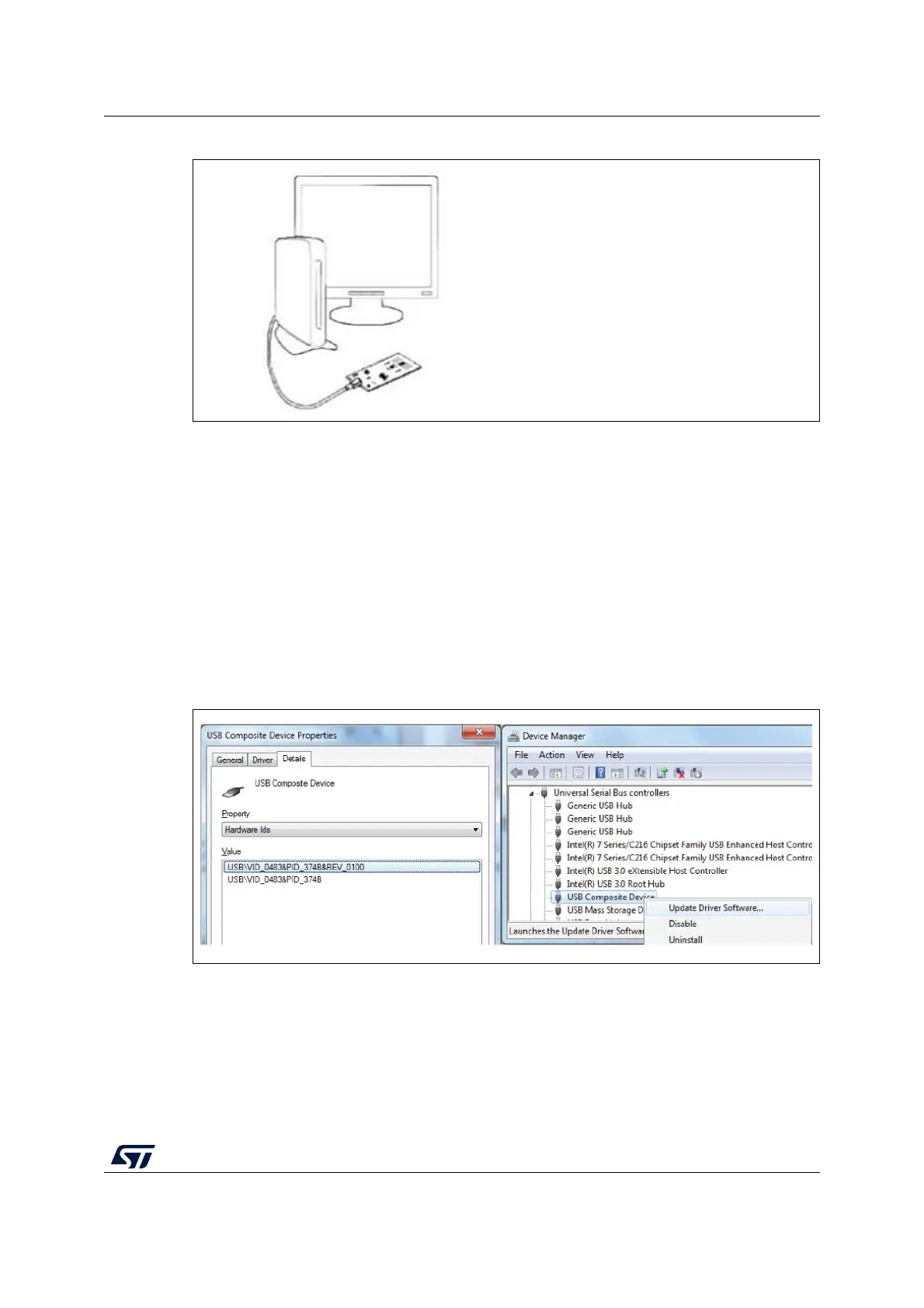

Figure 6. Typical configuration
6.2.1 Driver
Before connecting the Nucleo-64 board to a Windows 7, Windows 8, or Windows 10 PC via
USB, a driver for ST-LINK/V2-1 must be installed. It can be downloaded from the
www.st.com website.
In case the STM32 Nucleo-64 board is connected to the PC before installing the driver, the
PC device manager may report some Nucleo interfaces as “Unknown”.
To recover from this situation, after installing the dedicated driver, the association of
“Unknown” USB devices found on the STM32 Nucleo-64 board to this dedicated driver,
must be updated in the device manager manually.
Note: It is recommended to proceed using a USB Composite Device, as shown in Figure 7.
Figure 7. Updating the list of drivers in Device Manager
6.2.2 ST-LINK/V2-1 firmware upgrade
The ST-LINK/V2-1 embeds a firmware upgrade mechanism for the in-situ upgrade through
the USB port. As the firmware may evolve during the lifetime of the ST-LINK/V2-1 product
(for example new functionality, bug fixes, support for new microcontroller families), it is
recommended to visit www.st.com website before starting to use the STM32 Nucleo board
and periodically, in order to stay up-to-date with the latest firmware version.
MS19052V5
Hardware requirements:
- USB cable Type-A to Mini-B
- Computer with Windows® 7, 8 or 10
Development toolchain:
- IAR™ EWARM
- Keil® MDK-ARM
- GCC-based IDE
