4.1 STM32F407VGT6 microcontroller
This ARM Cortex-M4 32-bit MCU with FPU has 210 DMIPS, up to 1 MB Flash/192+4 KB
RAM, USB OTG HS/FS, Ethernet, 17 TIMs, 3 ADCs, 15 comm. interfaces and a camera.

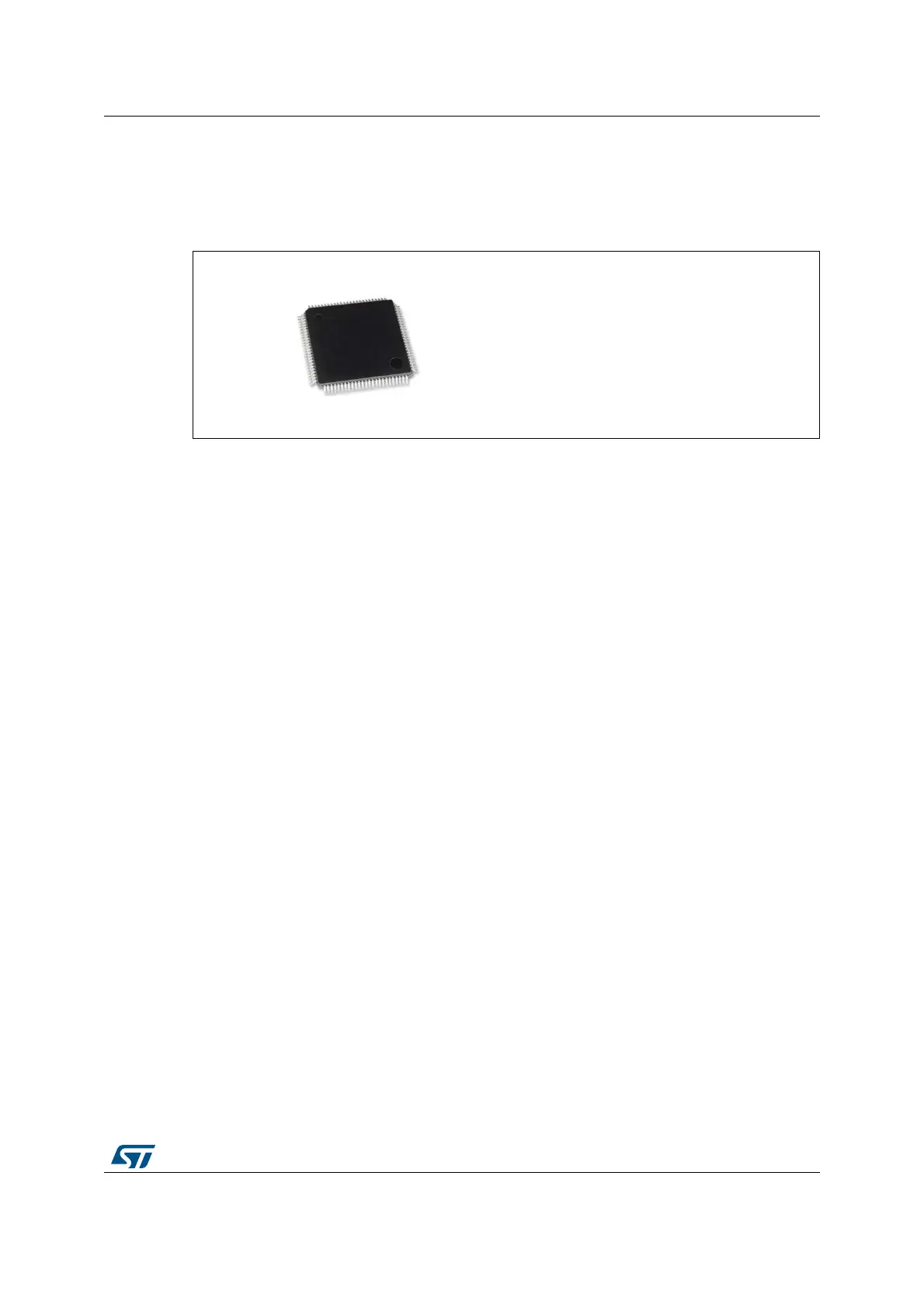

Figure 5. STM32F407VGT6 package
This device provides the following benefits.
• 168 MHz/210 DMIPS Cortex-M4 with single cycle DSP MAC and floating point unit
providing:
Boosted execution of control algorithms
More features possible for your applications
Ease of use
Better code efficiency
Faster time to market
Elimination of scaling and saturation
Easier support for meta-language tools
• Designed for high performance and ultra fast data transfers; ART Accelerator, 32-bit, 7-
layer AHB bus matrix with 7 masters and 8 slaves including 2 blocks of SRAM, Multi
DMA controllers: 2 general purpose, 1 for USB HS, 1 for Ethernet, One SRAM block
dedicated to the core, providing performance equivalent to 0-wait execution from Flash
Concurrent execution and data transfers and simplified resource allocation
• Outstanding power efficiency; Ultra-low dynamic power, RTC <1 μA typical in VBAT
mode, 3.6 V down to 1.7 V VDD, Voltage regulator with power scaling capability,
providing extra flexibility to reduce power consumption for applications requiring both
high processing and low power performance when running at low voltage or on a
rechargeable battery
• Maximum integration: Up to 1 Mbyte of on-chip Flash memory, 192 Kbytes of SRAM,
reset circuit, internal RCs, PLLs, WLCSP package available, providing more features in
space constrained applications
• Superior and innovative peripherals providing new possibilities to connect and
communicate high speed data and more precision due to high resolution
• Extensive tools and software solutions providing a wide choice within the STM32
ecosystem to develop your applications.
-36
34-&6'4
-BYTEOF&LASHMEMORY
+BYTESOF2!-
,1&0XMM
