DocID022256 Rev 4 13/42

UM1472 Hardware and layout

4.2 Embedded ST-LINK/V2

The ST-LINK/V2 programming and debugging tool is integrated on the

STM32F4DISCOVERY. The embedded ST-LINK/V2 can be used in 2 different ways

according to the jumper states (see Table 2):

• Program/debug the MCU on board,

• Program/debug an MCU in an external application board using a cable connected to

SWD connector CN2.

The embedded ST-LINK/V2 supports only SWD for STM32 devices. For information about

debugging and programming features refer to user manual UM1075 (ST-LINK/V2 in-circuit

debugger/programmer for STM8 and STM32) which describes in detail all the ST-LINK/V2

features.

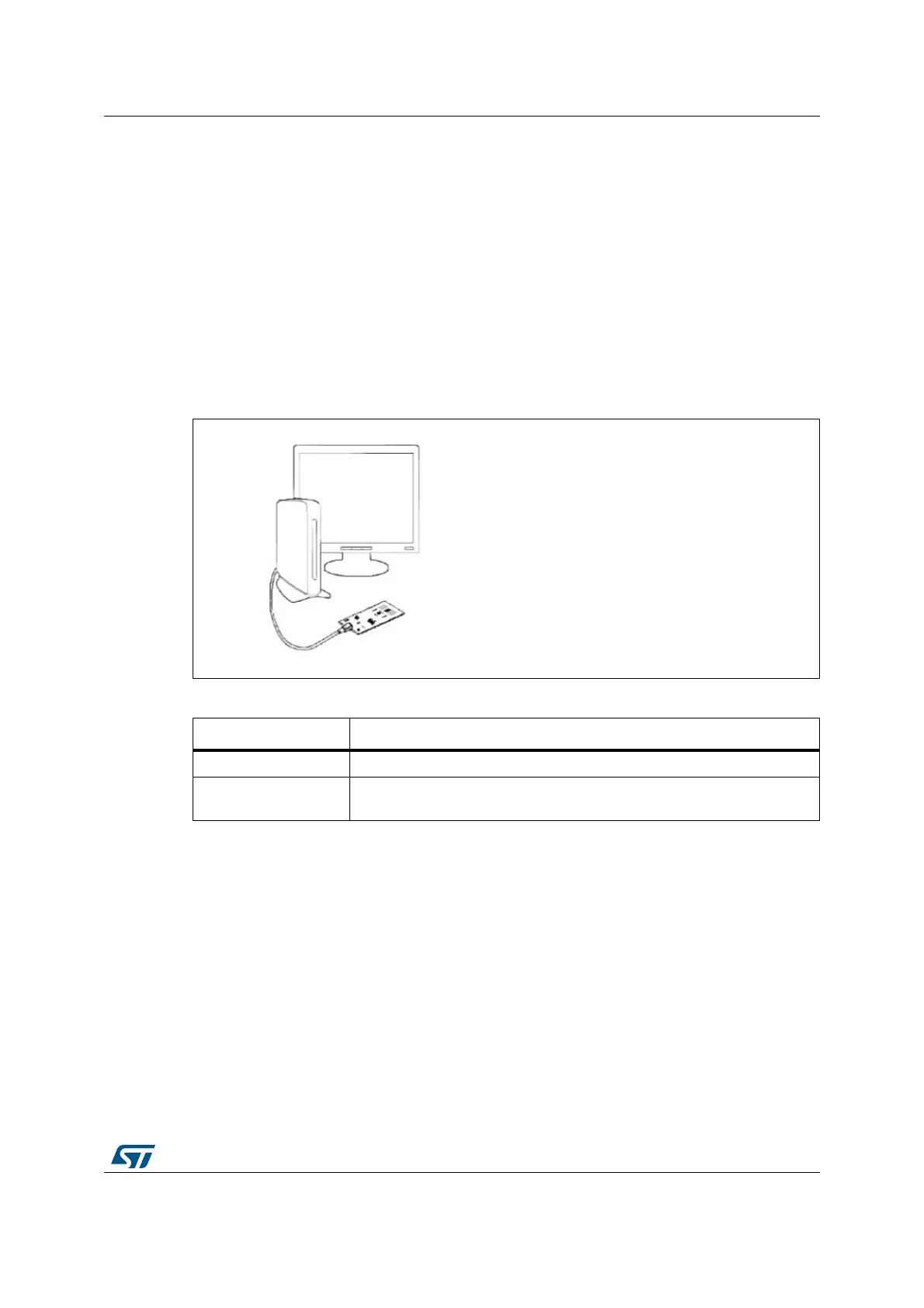

Figure 7. Typical configuration

Table 2. Jumper states

Jumper state Description

Both CN3 jumpers ON ST-LINK/V2 functions enabled for on board programming (default)

Both CN3 jumpers OFF

ST-LINK/V2 functions enabled for application through external CN2

connector (SWD supported)

-36

(ARDWAREREQUIREMENTS

53"CABLETYPE!TOMINI"

COMPUTERWITH7INDOWS806ISTAOR

$EVELOPMENTTOOLCHAIN

!LTIUM4!3+).'684OOLSET

!TOLLIC4RUE345$)/

)!2%7!2-

+EIL-$+!2-
