ST X-NUCLEO-53L8A1 User Manual

VL53L8CX
X-NUCLEO-53L8A1 Hardware Description
• The X-NUCLEO-53L8A1 is low-power high-
performance 8x8 multizone Time-of-Flight sensor
and development board designed around the
VL53L8CX sensor based on ST FlightSense™
patented technology
• The VL53L8CX communicates with the STM32
Nucleo developer board host microcontroller
through an I
2
C or SPI link available on the
Arduino UNO R3 connector.
VL53L8CX - Low-power high-performance 8x8 multizone Time-of-Flight
sensor
Hardware Overview (1/2)
3
Order Code: X-NUCLEO-53L8A1
Key Products on board
VL53L8CX Low-power high-performance 8x8 multizone
Time-of-Flight sensor
0.25, 0.5 and 1mm spacers to simulate air gaps, with
the cover glasses
Latest info available at www.st.com

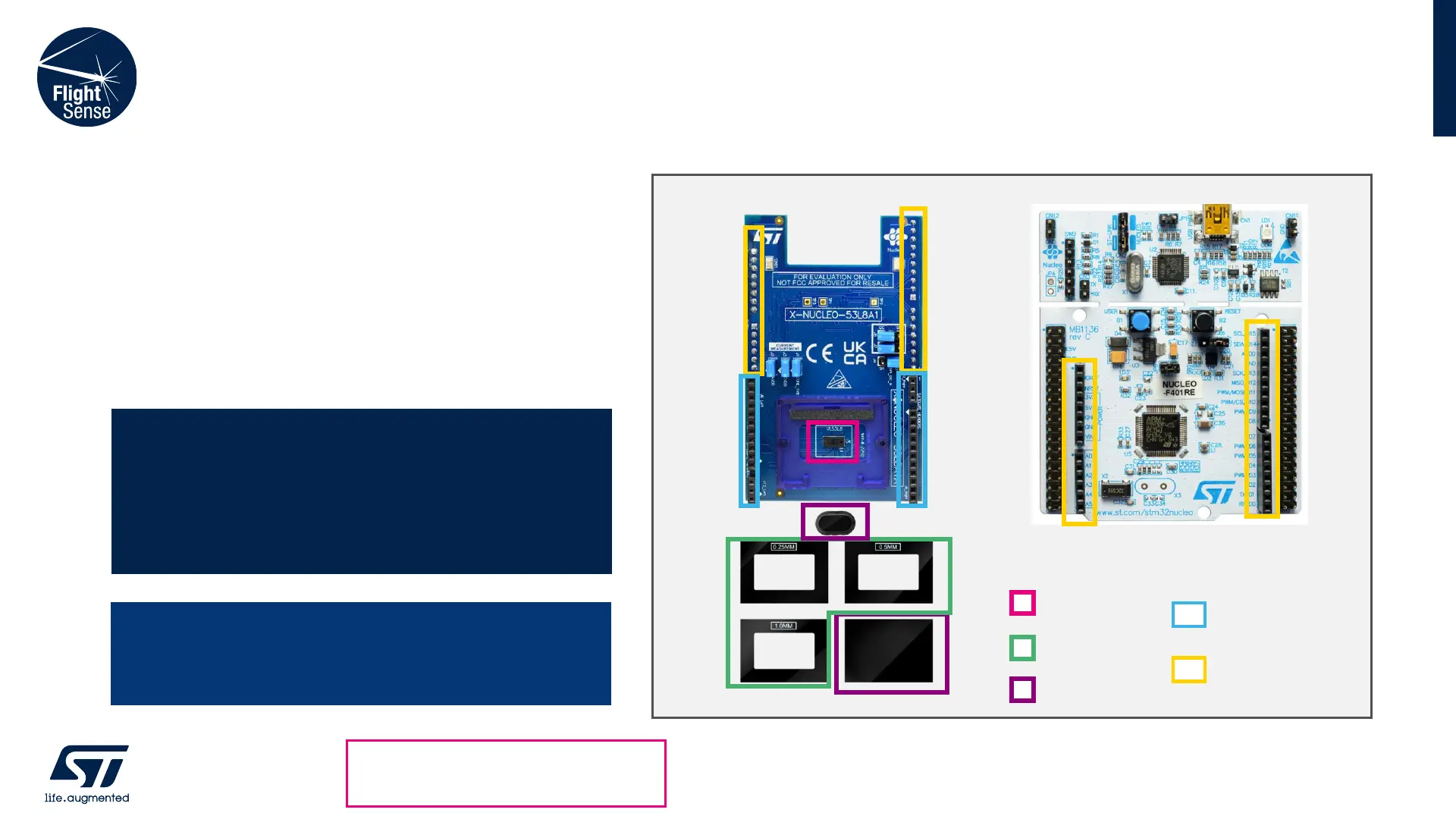

X-NUCLEO-53L8A1
Arduino UNO
R3 connectors
Spacers
Cover glass
Breakout boards
connectors
Breakout boards
SATEL-VL53L8 breakout boards can be purchased
separately
