STA-RITE Supermax - Section 7: Technical Data; Illustrated Parts List

Item Part Description
No. No.
Item Part Description
No. No.
SINGLE SPEED SUPERMAX MOTORS
1 355019S ½, ¾ HP — (Black)
1 355021S 1 HP — (Black)
1 355023S 1½ HP — (Black)
1 355025S 2 HP — (Black)
1 355027S 2½ HP — (Black)
DUAL SPEED SUPERMAX MOTORS
1 355232S 1 HP — (Black)
1 355376S 1½ HP — (Black)
1 355377S 2 HP — (Black)
ENERGY EFFICIENT SUPERMAX MOTORS
1 355375S ¾ HP 115 VOLTAGE — (Black)
1 355391S ½, ¾, 1HP — (Black)
1 355392S 1½ HP — (Black)
1 355393S 2 HP — (Black)
1 355394S 2½ HP — (Black)
2 355612 SEAL PLATE
3 351094 BASE
4 351090 CLAMP, RAMP & CAM
5 350091 LID
6 357255 O-RING, LID #2-357
7 351089 VOLUTE
8 350093 ADAPTER, 2 req.
9 270141 NUT, 2 req.
10 192115 O-RING DRAIN PLUG, 2 req.
11 357161 DRAIN PLUG, 2 req.
12 355621 SCREW ¾-16 X 2¼ HEX HD, 4 req.
13 072184 WASHER 3/8 in. S/S, 4 req.
14 355619 O-RING SEAL BRACKET
15 350099 O-RING ADAPTER #2-226, 2 req.
16 355030 SEAL DIFFUSER
17 355334 SCREW #8-32 HEX WASHER HD, 3 req.
18 355617 DIFFUSER - ½ HP
18 355617 DIFFUSER - ¾ HP
18 355617 DIFFUSER - 1 HP
18 355618 DIFFUSER - 1½ HP
18 355618 DIFFUSER - 2 HP
18 350170 DIFFUSER - 2½ HP
19 354290 HEX HEAD SCREW 3/8 - 16, 4 req.
20 355043 IMPELLER ½ HP
20 355043 IMPELLER ¾ HP
20 355067 IMPELLER 1 HP
20 355074 IMPELLER 1½ HP
20 355086 IMPELLER 2 HP
20 355093 IMPELLER 2½ HP
20 355067 IMPELLER 1 HP, 2-SPD
20 355074 IMPELLER 1½ HP, 2-SPD
20 355086 IMPELLER 2 HP, 2-SPD
21 355389 SCREW, IMPELLER LOCKING
22 354545 SEAL SET
23 355667 BASKET, LARGE
24 351157 SUPERMAX
®
UNION KIT(2 UNIONS,
2 ADAPTERS, 2 O-RINGS PER KIT)
22
20
21
18
17
16
1
2
23
15
4
5
6
7
8
19
14
13
12
11
10
3
9

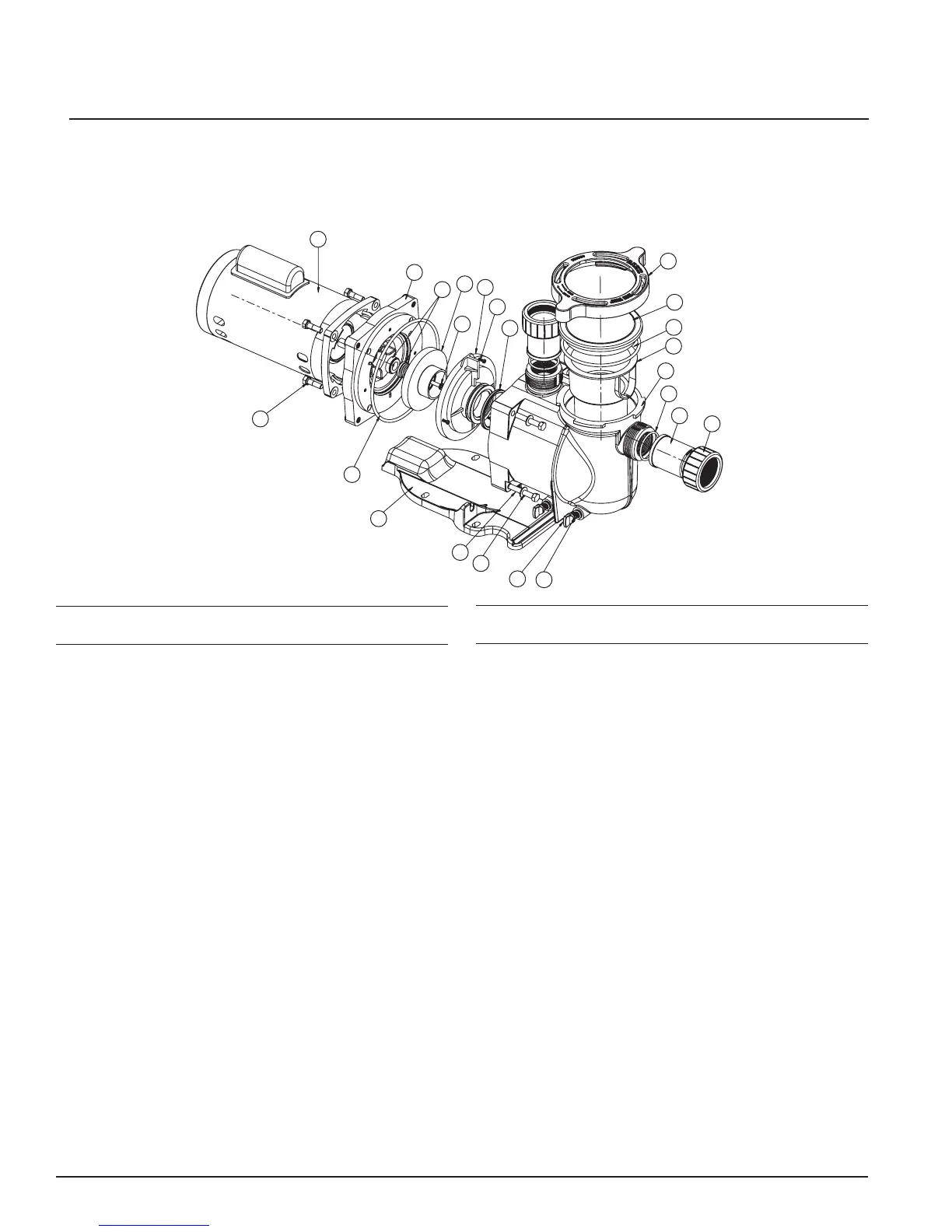

Illustrated Parts List
Section 7
Technical Data
12
SuperMax
®
Pump Installation and User’s Guide
