8.3 Adjusting the sensor
Calibration in 4 positions is needed if the following is
displayed:
1. The reverse test angle is ≥ 0.1° to the normal position
--> too great a deviation.
2. Change in internal reference
3. Change in temperature since last calibration.

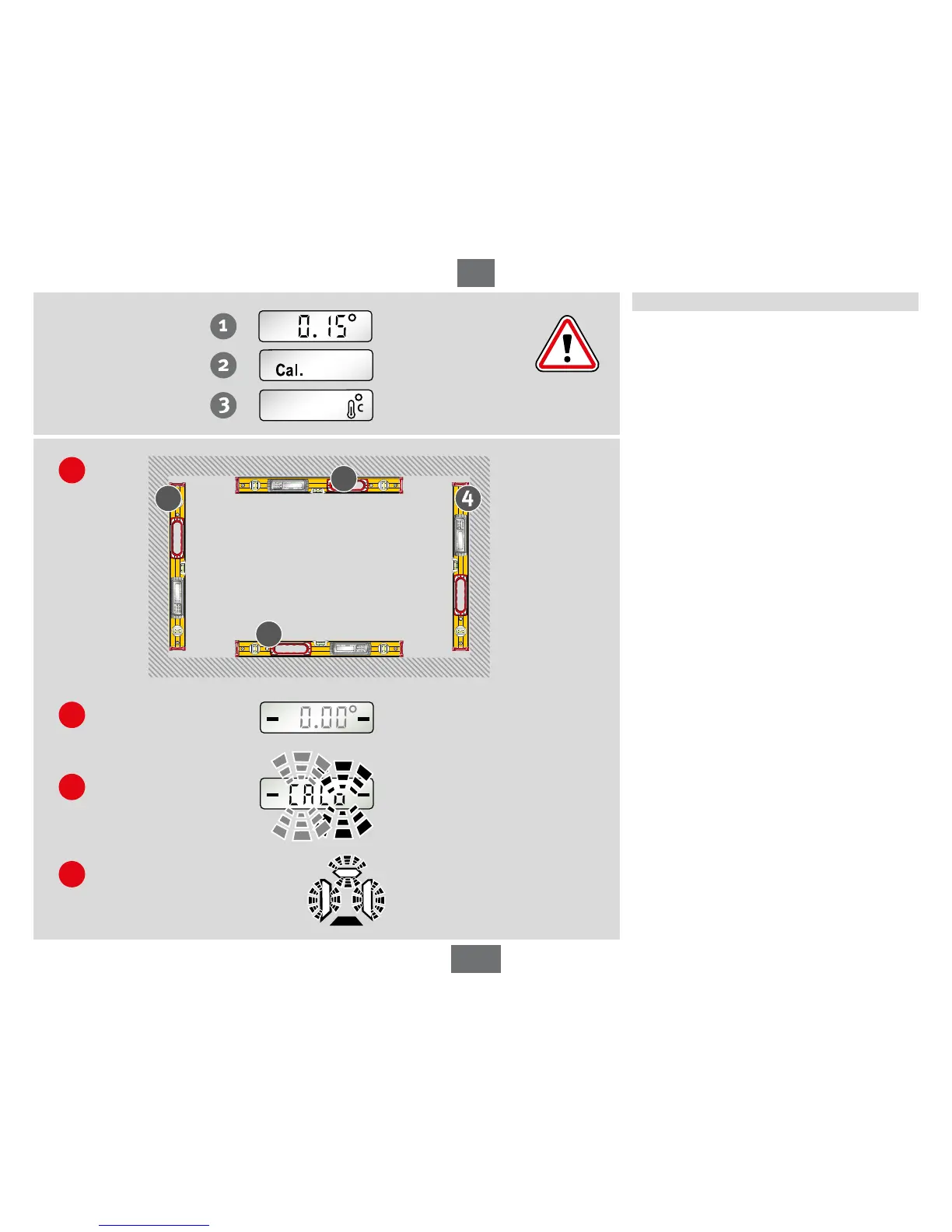

The electronic spirit level is calibrated in 4 measuring posi-
tions consecutively, turning 90° / 180° each time.
A:
All 4 planes are adjusted during the sensor adjustment.
B:
The sensor can only be adjusted if the two black bars
appear on the display (in the range of 0° and 90°).
C:
CAL and the planes still to be adjusted flash alternate-
ly while the sensor is being adjusted for the respective
plane..
D:
Planes that have not been adjusted flash in the display.
Successfully adjusted planes are permanently indicated
in the display.
