36"
STACK-ON
Barrel rests
Bottom pad

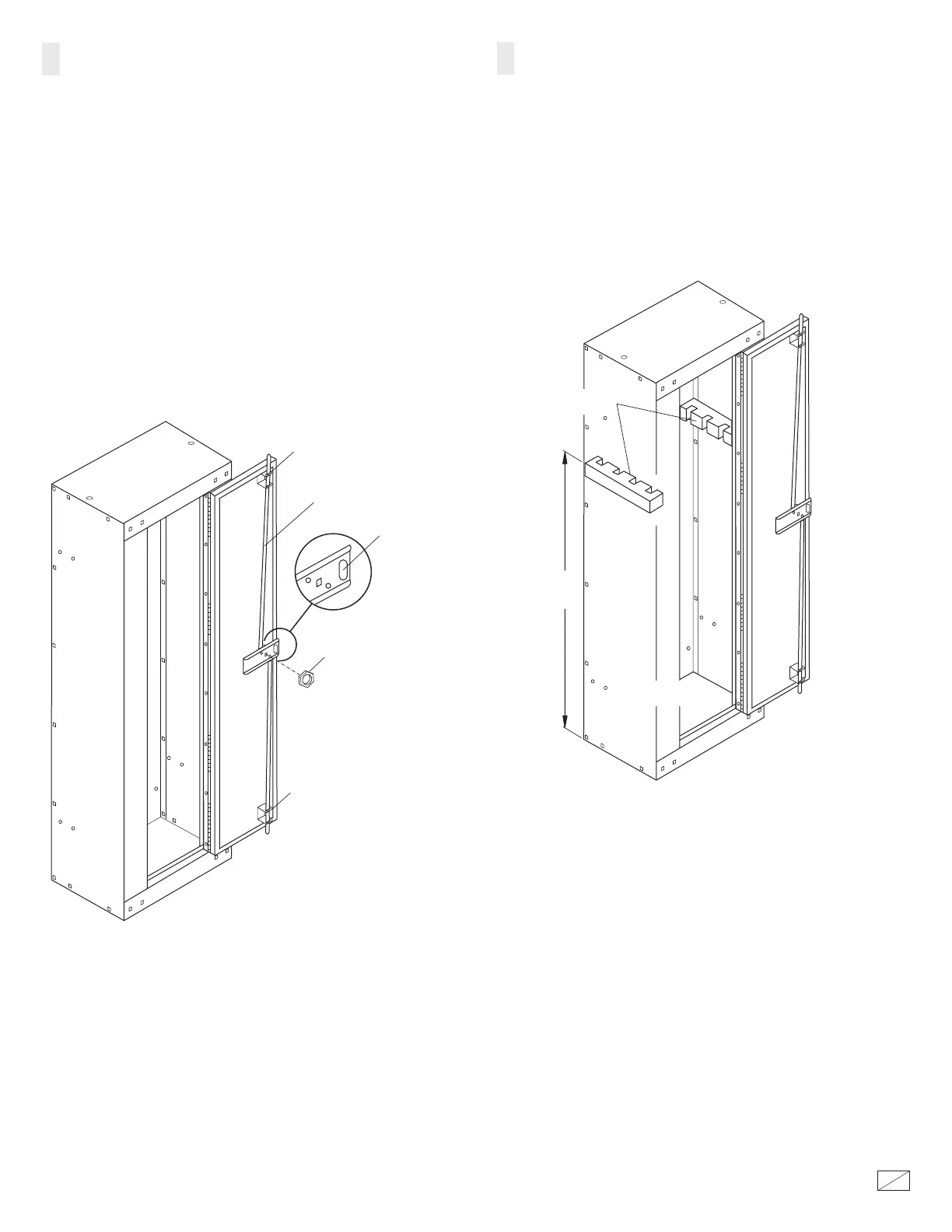

Figure 8
8. To install the barrel rests to the cabinet, rst remove the backing
from the foam rests. For help in doing this, pinch the end of the foam
to help secure the adhesive to the foam.
Aach the barrel rests to the inner sides of the cabinet at the height
shown. (See gure 8)
Place the boom pad into the cabinet.
7. Before assembling the lock bars remove the key from the lock.
To assemble the 3 point locking bar, rst position the center plate
horizontally with the indented formation in the one end pointing to the
outside of the door. (See gure 7)
Slide the lock bars through the slots in the top and boom door
brackets.
Position the square hole in the center plate over the lock while the
center plate is still in the horizontal position.
Secure the center plate to the lock with the nut.
Insert the key into the lock and try the locking mechanism. Lubricate
the tips of the lock bars if necessary.
Please note that the key only comes out of the lock only when it is in
the locked position.
Top door
bracket
Lock bar
Nut
Center plate
indented end
Bottom door
bracket
Figure 7
STACK-ON
4327-1309
18
