NOTE: is safe must be secured to two wall
studs so it is anchored to the wall studs in six
locations.

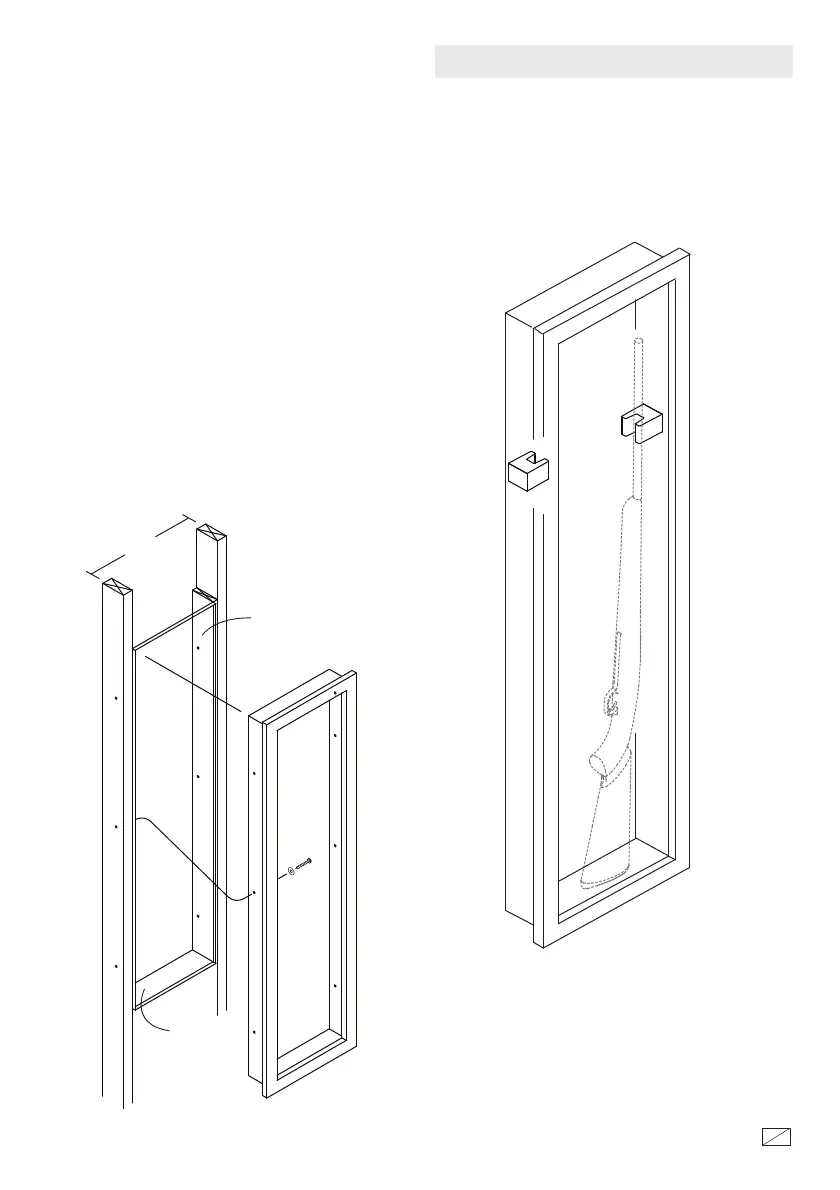

Figure 2 shows the installation of the safe in a wood
framed wall (16" centers). For securing the safe to
the wall studs the safe must be aached to the wood
studs of the wall through the six pre-drilled
mounting holes in the safe, with the frame of the safe
ush to the wall surface.
In the gure shown, mount the safe between two
wall studs. Cut a hole in the wall the same size as the
back of the safe. Use ller blocks and boom
support as required. Mark the 6 hole locations and
drill six 3/16 inch diameter pilot holes. Secure the
safe to the wall studs using 6 lag screws and washers
as shown. (Figure 2)
Figure 2
Figure 3
GUN BARREL SUPPORTS (Optional)
Remove the adhesive backing from the gun barrel
supports and adhere them to the sides of the safe at
the appropriate height for your rearm. (Figure 3)
Filler block
Bottom
support
16"
