NOTE: This safe must be secured to two
wall studs so it is anchored to the wall studs
in six locaons.

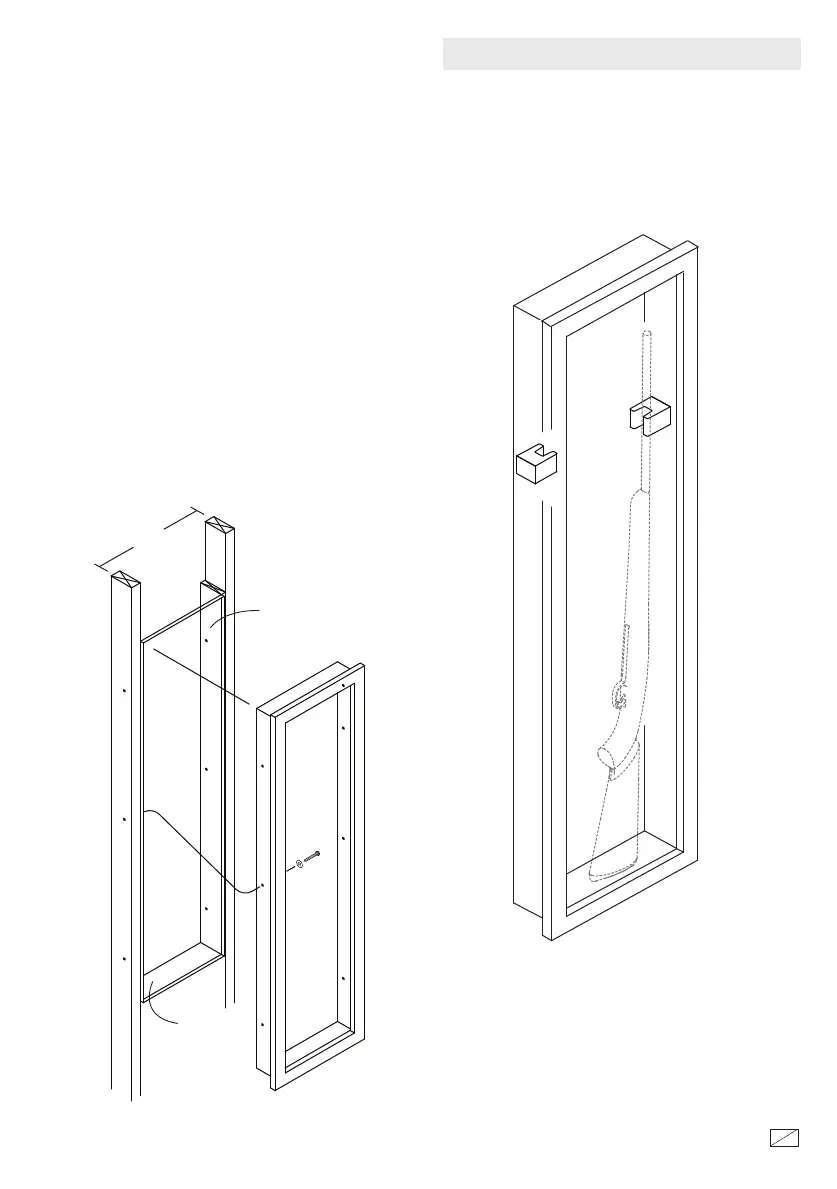

Figure 2 shows the installaon of the safe in a
wood framed wall (16" centers). For securing
the safe to the wall studs the safe must be
aached to the wood studs of the wall through
the six pre-drilled mounng holes in the
safe, with the frame of the safe flush to the
wall surface.
In the figure shown, mount the safe between
two wall studs. Cut a hole in the wall the same
size as the back of the safe. Use filler blocks and
boom support as required. Mark the 6 hole
locaons and drill six 3/16 inch diameter pilot
holes. Secure the safe to the wall studs using 6
lag screws and washers as shown. (Figure 2)
FIGURE 2
FIGURE 3
GUN BARREL SUPPORTS (Optional)
Remove the adhesive backing from the gun
barrel supports and adhere them to the sides of
the safe at the appropriate height for your
firearm. (Figure 3)
Filler block
Bottom
support
16"
