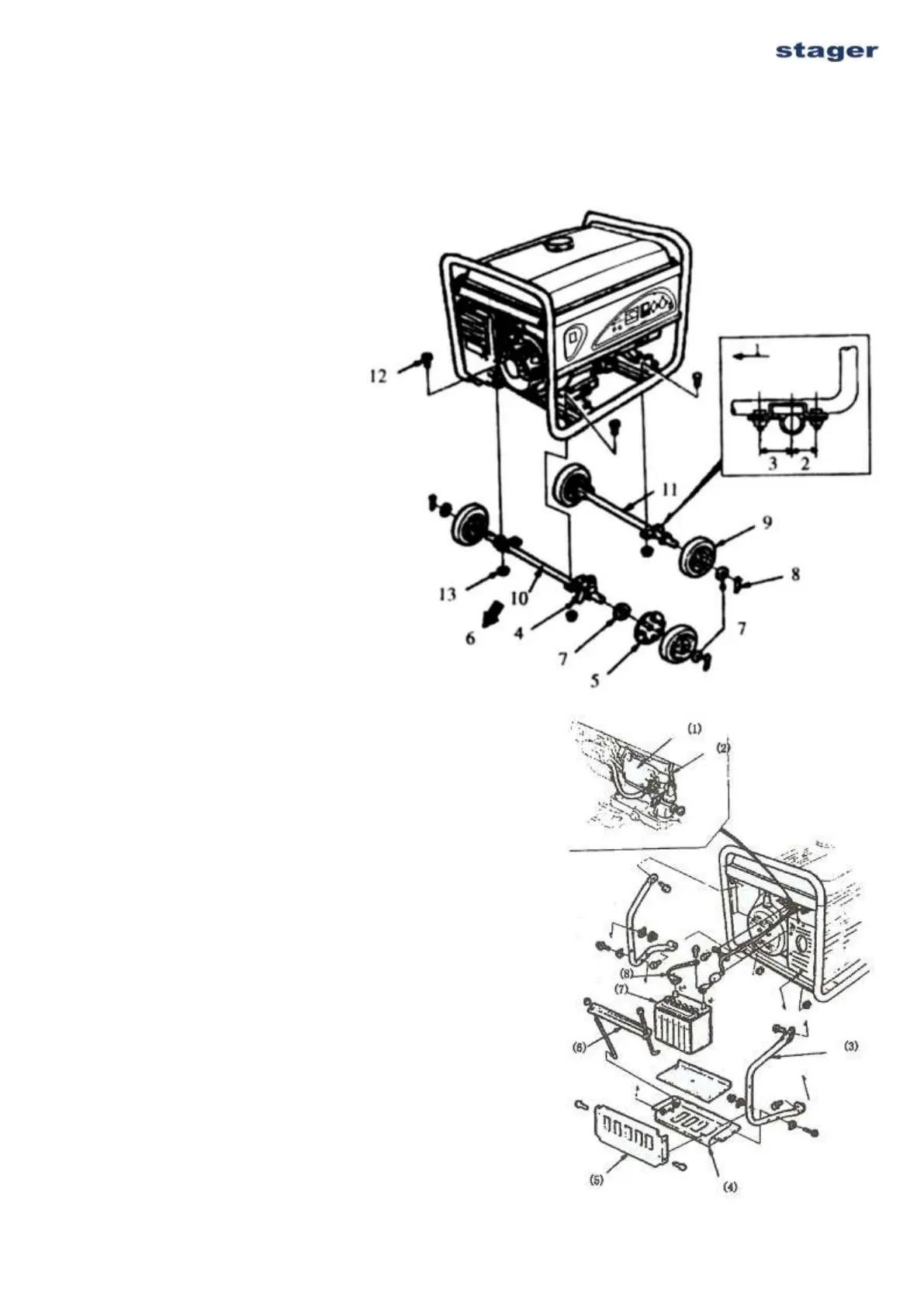

12. ASSEMBLY OF PARTS
12.1 WHEEL
Assemble the wheel, to this end:
1. Fit the wheel onto the axle, then secure them with washer and split pin.
2. Mount the assembled axle on the frame with bolt and nut.
1. Inner side
2. Shorter side
3. Longer side
4. Latch
5. Stopping disc
6. Engine location
7. Retainer
8. Split pin
9. Wheel
10. Right axle close to engine)
11. Left axle (close to generator)
12. Nut
13. Bolt
12.2 BATTERY
To install the battery, proceed as follows;
10.2.1 Assemble the battery with nuts, bolts and washers.
10.2.2 Connect the starting cable to the starting motor
terminal alone the bottom of the fuel tank.
10.2.3 Connect the earth line with line with the rear end of
the generator.
10.2.4 Connect the starting cable to the positive lead of the
battery first, and then to the negative one. Disconnect in the
reverse order.
1. Starting motor
2. Starting cable
3. Protective frame
4. Battery bracket
5. Battery guard
6. Retaining frame
7. Battery (with a rating of 12V-35Ah)
8. Negative wire
