4. AC breaker
5. Voltmeter
6. Dipstick
7. Ignition switch
8. Drain plug
9. Starting handle
10. Fuel cock
11. Air cleaner
12. Choke lever
13. Ground terminal
14. Muffler
15. Spark plug
16. Indicator light oil level
17. DC current output
18. Generator frame
19. Wheels
20. Handle

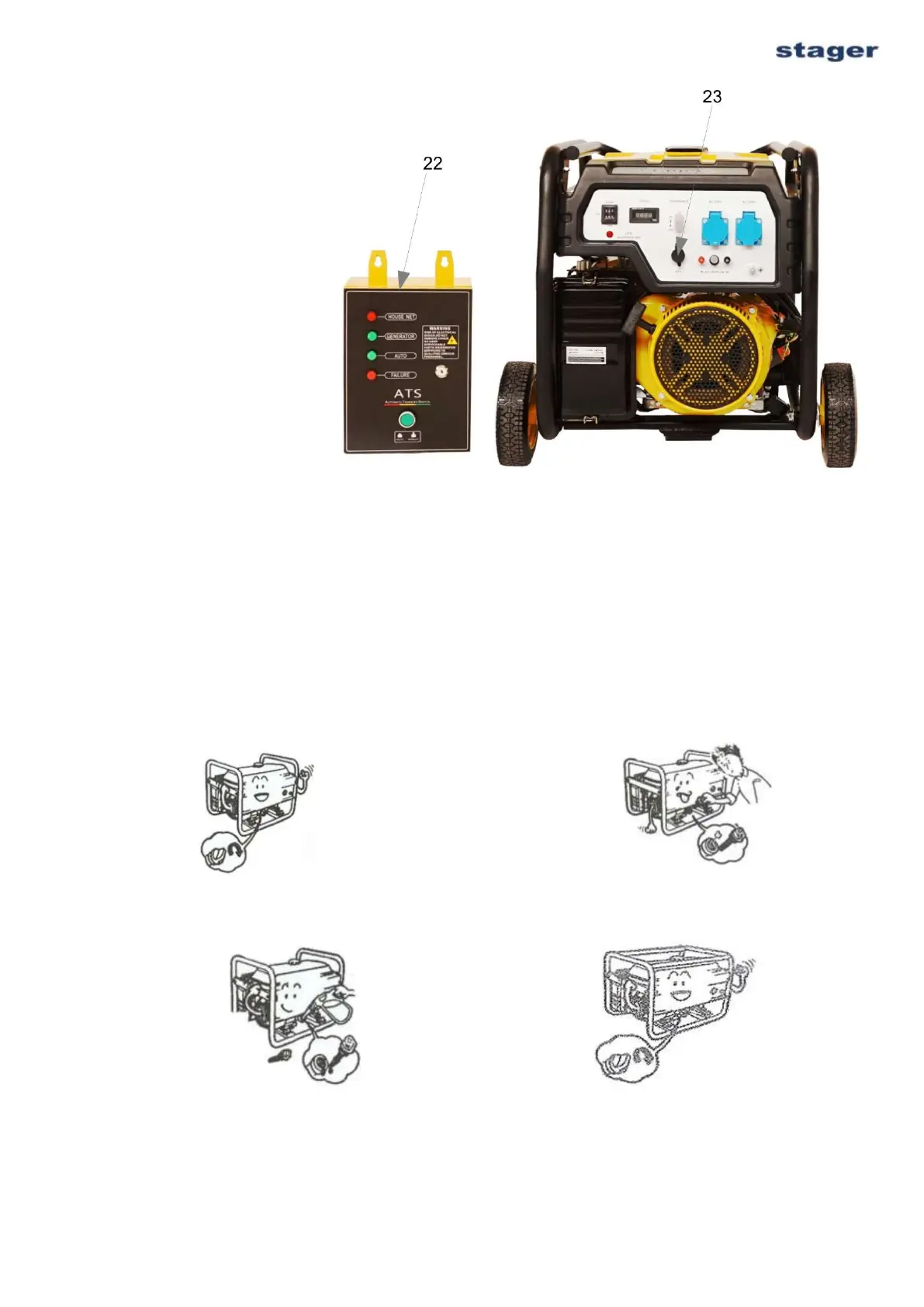

21. Three-phase socket (only
three-phase generator)
22. ATS (only models equipped)
23. ATS connecting plug (only models equipped)
4. PRE-OPERATION INSPECTION
4.1 ENGINE-OIL LEVEL
NOTE: always check the generator in the case of stopping the generator on a level ground.
1. Turn out the oil filler cap and clean the dipstick with
a clear cloth.
3. In the case that the oil ever is below the lower
level mark of the dipstick, fill oil to the upper level
mark of the dipstick.
2. Insert the dipstick back into the oil filler hole
without turning it in.
4. Reinstall the oil filler cap well.
Ver. 3/Rev. 1; Data: 21.10.2022 34
To Next Page
