6.3. ATS specification
Voltage
DC 9 ~ 15 V
Rated current of the contactor Single phase: 220V / 30A (models of 6.5kW and below)
Single phase: 220V / 60A (models of 8kW)
Three phase: 380V / 30A (models of 6.5kW to 8kW)
Charger Input voltage: 180 ~ 240Vca
Output voltage: 13.8Vcc (±2%)
Charging current: 1A
Dimensions 300 x 225 x 140 mm
Length of connecting wire 5 m
Working temperature (-15 ~ 60)ºC
Storage condition (-25 ~ 80)ºC
Wire diameter 4mm² (for models of 5kW, 6kW and 7kW, single phase)
4mm² (for models of 8kW, three phase)
6mm² (for models of 8kW, single phase)
6.4. Notice:
Please use suitable generator whose output can match the ATS control box.
Do not connect the ATS with mains directly.
Is required to use air circuit to ensure safety when ATS is connected to mains.
Please make sure the engine switch is under good condition and put the swtich at “ON” position
before using ATS function.
The switch of circuit breaker should be at “ON” position.
The device should be installed at a dry, ventilated place, should not be installed at a high tempreture,
high humidity and easily shaked place.
High voltage is inside the ATS, if some problem happen with the ATS, please contact the authorized
service for repair. Normal user is not allowed to open the box, to avoid danger of electric shock.
7. SERVICE
Always do as the following so as to keep the generator in a sound condition.
WARNING

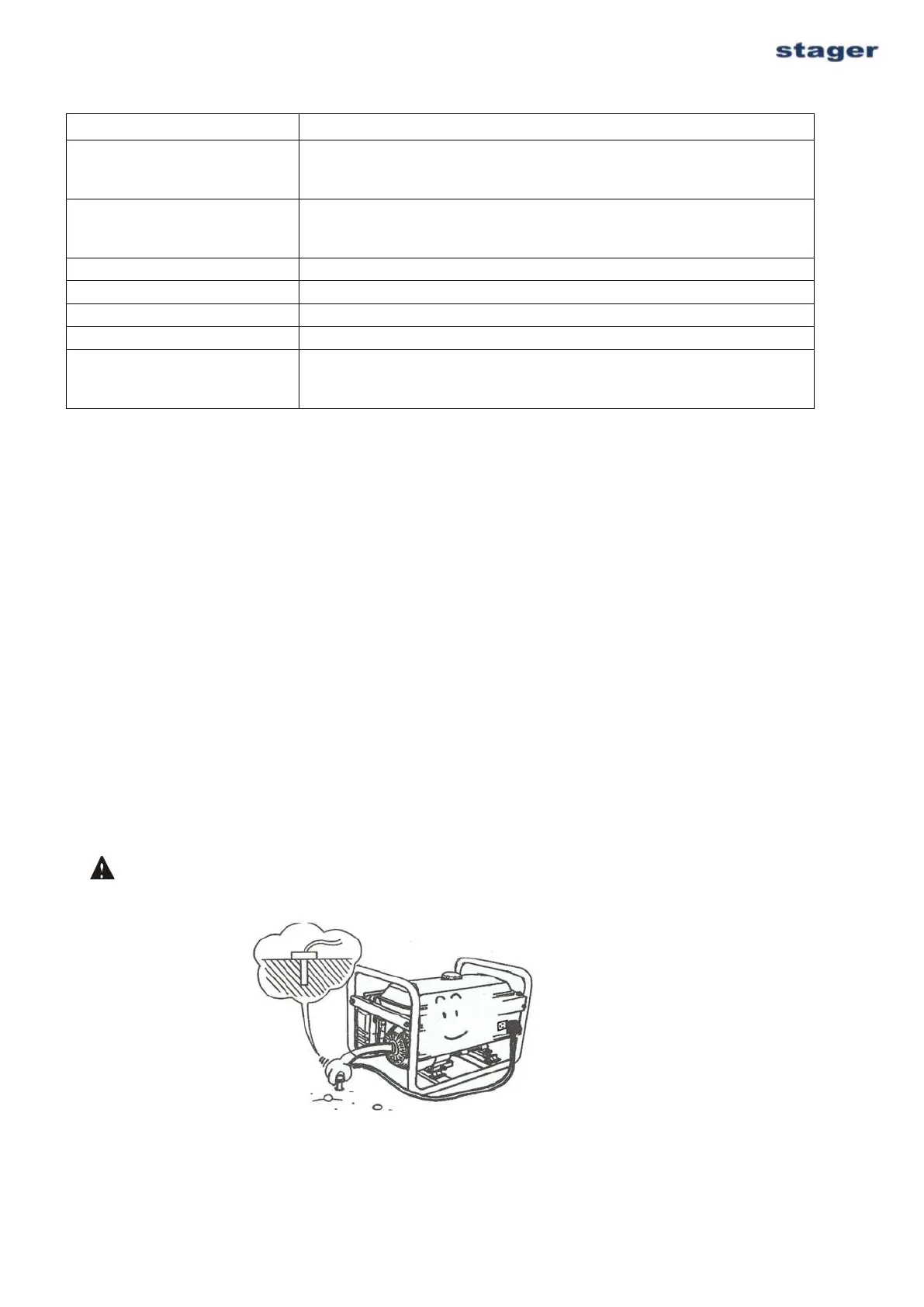

7.1 Always connect the generator to the earth to prevent misusing.
Ver. 3/Rev. 1; Data: 21.10.2022 41
