BS and BSA Bias Supply Series and User Manual, Rev 2.60
www.stahl-electronics.com phone: +49 6242-504882, fax: +49 6242 504884
23

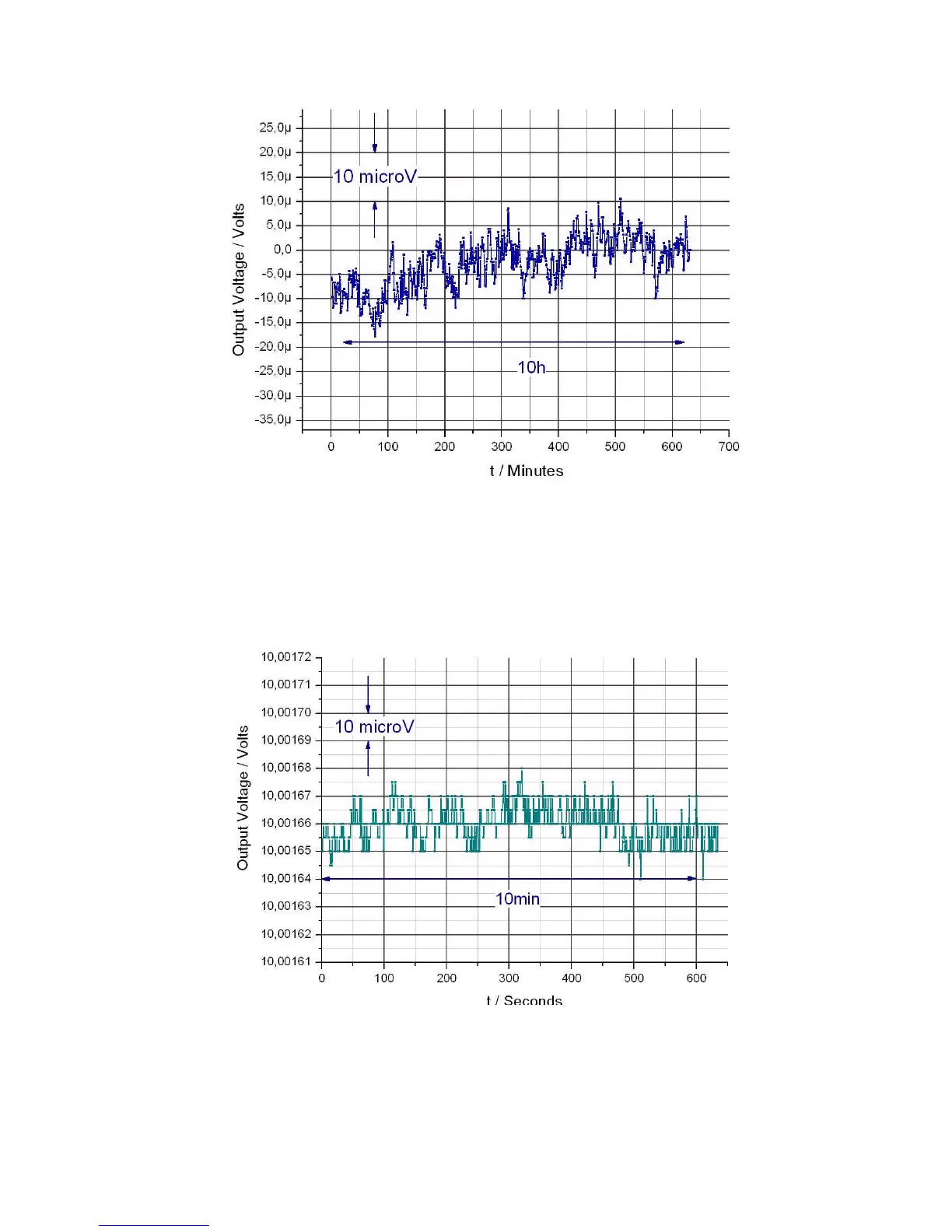

Fig. 9.5: This figure shows a typical offset behaviour (BS series) over a 10-hour interval (output voltage
nominally at zero volts). Measurement device was a Fluke 8846A multimeter, 30sec. averaging per data point.
Ambient temperature has been determined to be constant within +/-0.7K.
Fluctuation Data (continued)
Fig. 9.6: This figure illustrates the short term stability of an output channel at +10V, BS series, over a 10-minute
interval. Measurement device was a Fluke 8846A multimeter, 0.5sec. averaging per data point. One
measurement point was taken every second.
